Formax  |  SKU: FD 6406-Standard 3F

Formax FD 6406 Standard 3F Folder & Inserter

$33,195.00 $38,174.25
2 Standard - 1 High Capacity Feed Station, Process 60,000 Pieces/month, Total Feed Capacity of 1,375 sheets

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6406 Standard 3F Folder & Inserter
Manufacturer Formax
SKU FD 6406-Standard 3F
Dimensions (H”xW”xD”) 24.8" x 16.5" x 58.3"
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 1 High Capacity Document Feeder and 2 Standard Feeders with 725 and 325 sheet capacity respectively
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 100
Optional Accessories Short Feed Trays, Production Feeders, CIS Scanner, OMR, BCR and OCR, Side Exit Tray, Custom Cabinets and 402 Series Joggers
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

Features of FD 6406 Standard 3F Folder & Inserter

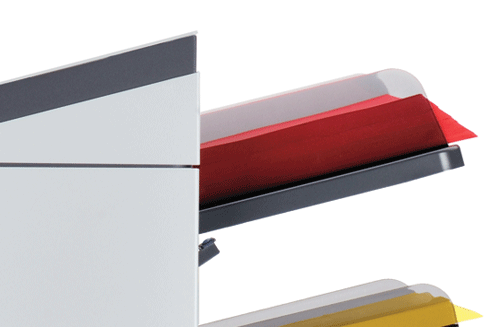

  • Three Stations including 1 High Capacity Document Feeder and 2 Standard Feeders
  • 7” innovative touchscreen control panel providing quick and setup
  • Mid volume inserter with processing capacity of 4000 in an hour
  • Envelope and paper sensors presence on touchscreen to assist users
  • High capacity feeder and hold 725 sheets where standard can hold 325
  • 50 programmable recurring job can be stored for instant recall
  • Simply load and go as Auto Set senses and sets paper length, fold type, envelope size etc.
  • Fold types of C, V, Z, Double Parallel, no fold supported
  • Saves energy by automatically switching into standby mode after one hour of inactivity.
  • Double document detection to ensure no repetition of document is fed

Performance of FD 6406 Standard 3F Folder & Inserter

The 6406 Standard 3F folder & inserter is designed with advanced technology that folds and inserts together with a variety of features and configurations. The Standard 3F comes with a three station installed feeders which include 1 High Capacity Document Feeder and 2 Standard Feeders. The standard feeder can accommodate up to 325 sheets whereas a high capacity feeder can hold up to 725 sheets. The Standard 3F can process 4000 pieces in just one hour and has a monthly cycle of 60000 pieces. The feeder is located with the double document detector which ensures no double documents are fed into the system.

The Formax 6406 Standard 3F is a user-friendly machine as it allows the user to move away after feeding the paper and automatically adjusts the settings. AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes, and fold lengths and 7” color touchscreen control panel for easy and intuitive use. The machine is powerful and sturdy as it has the capacity of folding 10 sheets in half fold and supports fold types of C, V, Z, double parallel, and no fold. These 6406 series are assembled with an eco-friendly feature that saves energy by automatically putting the device into sleep mode after one hour of inactivity.

Recommendation & Warranty

To ensure customer satisfaction, the Formax 6406 Standard 3F is backed by a 90-day warranty on parts and labor. If your workplace requires an efficient and reliable device that can handle mid-volume with ease, then 6406 Standard 3F is what you need to transform your mailing methods.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The Formax 6406 series comes with a 90-day warranty on parts excluding wearables and labor.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.

Q: How many jobs can my 6406 series can save?

A: The 6406 can save up to 50 programmable jobs for frequent use.

Q: My envelopes are double fed, what should i do?

A: This may happen when the envelopes not placed properly in the hopper. Check and replace if needed.

Q: What fold types are supported by the 6406 series?

A: The fold types supported by the 6406 series is C, Half, Z, Double Parallel and no fold
