Formax  |  SKU: FD 6406-Special 5F

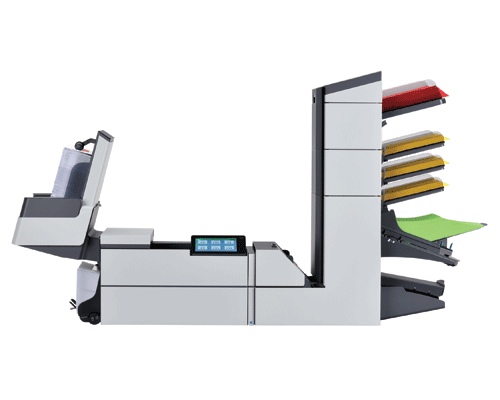

Formax FD 6406 Special 5F Folder & Inserter

$41,095.00 $47,259.25
2 Standard - 2 Special - 1 High Capacity Feed Station, Process 60,000 Pieces/month, Total Feed Capacity of 2,025 sheets

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6406 Special 5F Folder & Inserter
Manufacturer Formax
SKU FD 6406-Special 5F
Dimensions (H”xW”xD”) 31.5" x 16.5" x 58.3"
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 2 Standard and 2 Special Feed Stations with 325 sheet capacity and 1 High Capacity Feed Stations with 725 sheet capacity.
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 100V
Optional Accessories Short Feed Trays, Production Feeders, CIS Scanner, OMR, BCR and OCR, Side Exit Tray, Custom Cabinets and 402 Series Joggers
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

Features of Formax FD 6406 Special 5F Folder & Inserter
  • 5 Stations include 2 Special Feeders, 2 Standard Feeders and 1 High Capacity Document Feeder
  • Mid volume processing of 4000 pieces in an hour and 60000 pieces in a month

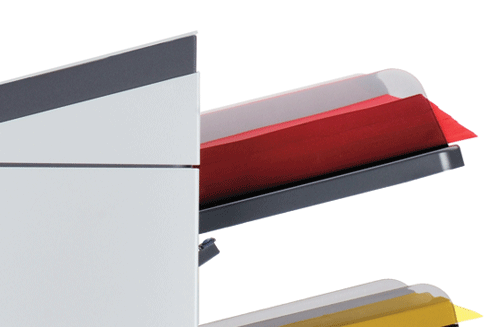

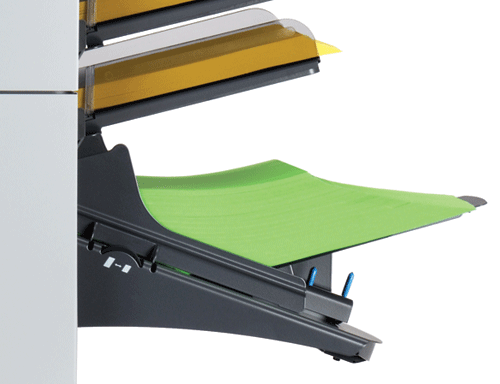

  • Standard feeders hold up 325 sheets where as high capacity feeders can hold 725 sheets.
  • Capable of saving 50 programmable jobs for frequent and recurring jobs

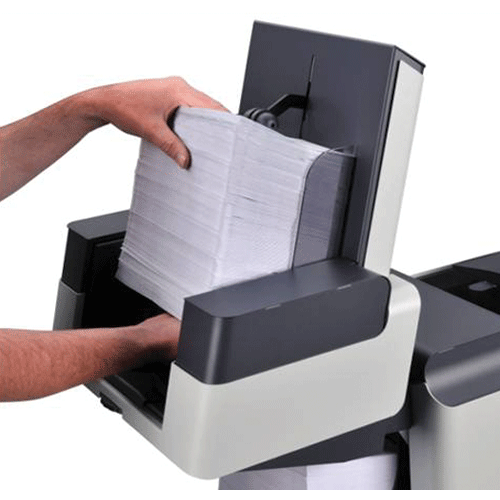

  • High capacity vertical output stacker holds up to 500 processed envelopes
  • Only Special feeders needs manual adjustments for processing
  • Saves energy by automatically switching into standby mode after one hour of inactivity
  • Double document detection to ensure no repetition of document is fed

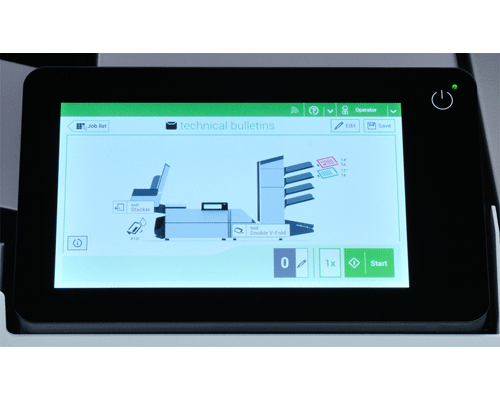

  • 7” Color touchscreen control panel with graphic icons for quick and easy use
  • Featured Auto Set senses that sets paper length, fold type, envelope size etc.
Performance of Formax FD 6406 Special 5F Folder & Inserter

The eight model of the FD 6406 series is the Special 5F with 5 stations that includes 2 special feeders, 2 standard feeders and a high capacity feeder. Each standard and special feeder can hold up to 325 sheets whereas the production feeder can hold up to 725 sheets. Each standard and production is automatically adjusted with the AutoSet function but the special feeder is adjusted manually. The Formax 6406 Special 5F is ideal for medium offices requiring mid volume folding and inserting tasks. The processing speed of the Special 5F is 4000 pieces in an hour and 60000 monthly duty cycle.

The Special 5F is a user-friendly device which is easy to operate and use as it is equipped with 7-inch touchscreen control panel. This inserter has the ability to store 50 programmable jobs for instant use. There are paper and envelope sensors that indicate user on the touch screen if the feeder is empty etc. The double document detection helps making sure that no document is fed twice. The eco-friendly mode is enabled if the Special 5F is inactive for an hour conserving energy and preserving life of the machine.

Recommendation & Warranty

The 6406 Special 5F inserter is strong and efficient so that they are the perfect choice for mid volume solution in a work place. The Formax FD 6406 Special 5F inserter is backed by 90-day warranty on parts excluding wearables and labor to ensure customer satisfaction.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The Formax 6406 series comes with a 90-day warranty on parts excluding wearables and labor.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.

Q: How many jobs can my 6406 series can save?

A: The 6406 can save up to 50 programmable jobs for frequent use.

Q: My envelopes are double fed, what should i do?

A: This may happen when the envelopes not placed properly in the hopper. Check and replace if needed.

Q: What fold types are supported by the 6406 series?

A: The fold types supported by the 6406 series is C, Half, Z, Double Parallel and no fold
