Formax  |  SKU: FD 3200

Formax FD 3200 Air Suction Document Folder


Brochure View PDF File

Product Specifications
Product Name Formax FD 3200 Air Suction Document Folder
Manufacturer Formax
SKU FD 3200
Dimensions (H”xW”xD”) 21.3 x 23 x 47
Fold Type Letter Fold, Z-Fold, Half-Fold, Fold Out, Gate-Fold, Double Parallel Fold
Paper Size (W" x L") 4.73 x 7.17 - 18 x 12.24
Category Air-Feed
Type of Folder Auto-Feed, Auto Set-up
Fold Selection Setup Automatic
Speed (Sheets/Hour) 15,600
Automated Feed Yes
Warranty 90 day limited warranty on parts, excluding wearable and labor
Country of Origin United States
Power Supply (Volts) 100-240v, 50/60 Hz
User Type Commercial
Feed Tray Capacity 625
Product Description:

  • High speed processing of up to 15,600 sheets per hour
  • Hopper capacity of 625 sheets
  • 6 preset folds
  • 20 custom folds may be stored
  • Range of paper sizes: 7.17” - 18” L x 4.73” - 12.24” W
  • Paper weights up to 230gsm are processed easily
  • Automatically adjusts to paper size
  • LCD control panel for easy handling of machine

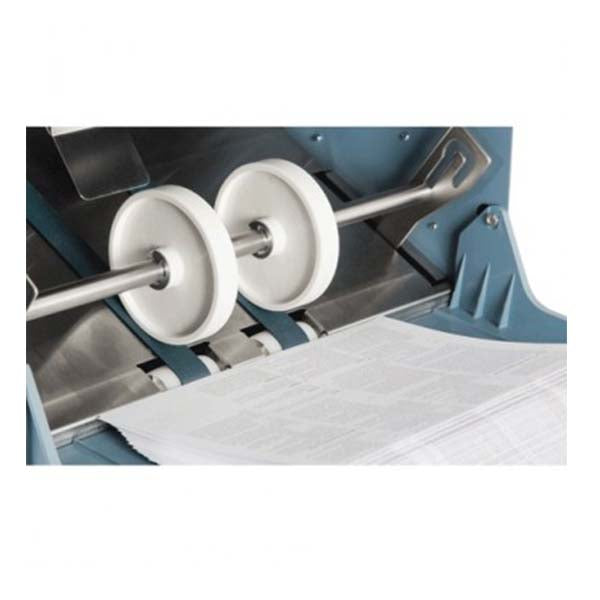

  • Air suction feed and adjustable air flow and fan speed

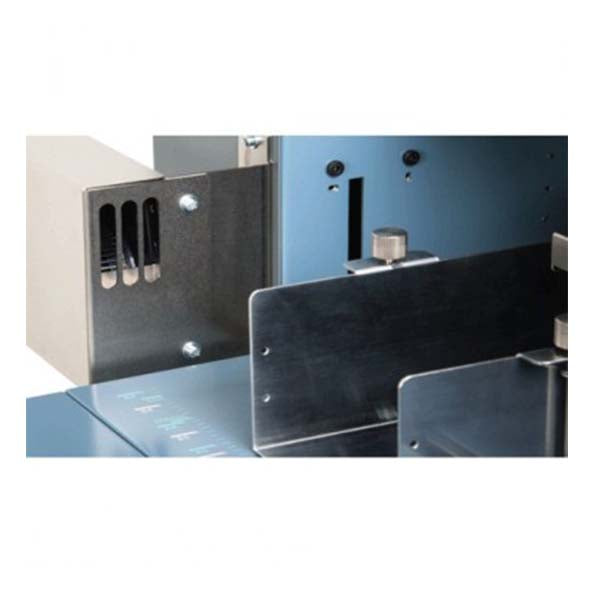

  • Stacks output for comfortable unloading
  • Optical detector for double feed
  • Durable and heavy-duty machine

Formax FD 3200 air suction folder presents a comprehensive solution to offices regarding neat and professional-looking paperwork. It comes with numerous useful features that facilitate customers much better than other products.

FD 3200 paper folder processes 15,600 sheets per hour and its hopper can hold 625 sheets at one time so no operator needs to constantly supervise this machine and spend time loading sheets every few seconds. It has an automatic adjustment system to adjust its feeds to any paper size from 7.17”x4.73” to 18”x12.24”. This includes the input as well as the output feed where stacking is done. Additionally, paper may weigh up to 230gsm but FD 3200 does not lose its amazing folding abilities and still produce a perfectly folded sheet.

Formax FD 3200 has a very user-friendly LCD display-assisted control panel. Users may use it to select from the 6 pre-programmed, commonly used folds or change the various settings. For better customizability, the machine’s memory can store up to 20 custom folds that meet individual requirements of customers. Another useful feature is that the air suction system, which expertly frees the input stack of charge, can be changed as well. For certain odd paper sizes and weights, the operator may change air flow and fan speed to maximize performance.

With loads of unique qualities and unparalleled performance, Formax FD 3200 air suction folder is surely a great value for one’s money.
