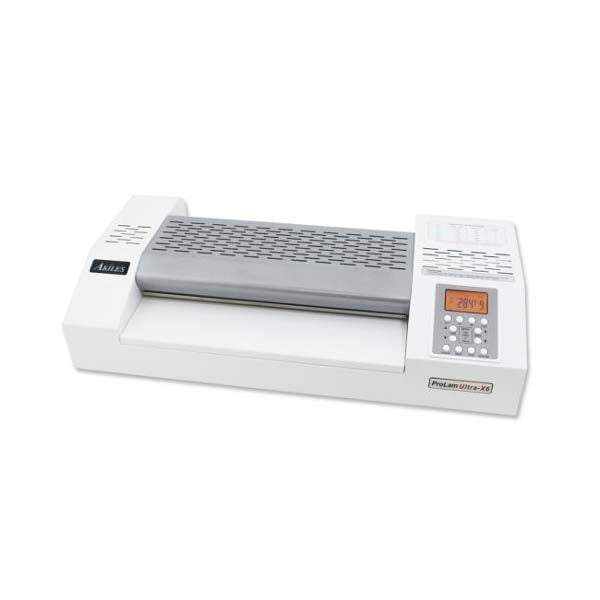

Akiles ProLam Ultra-X6 Professional 6 Roller Photo Laminator
Akiles ProLam Ultra-X6 Professional 6 Roller Photo Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Akiles ProLam Ultra-X6 Professional 6 Roller Photo Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Akiles ProLam Ultra-X6 Professional 6 Roller Photo Laminator |
| Manufacturer | Akiles |
| SKU | APLULTRA-X6 |
| Dimensions (H”xW”xD”) | 21 x 10.5 x 5 |
| Heated Roller System | 4 Hot/ 2 Cold |
| Max. Pouch Thickness (mil) | 14 |
| Max. Laminating Speed (Inches/Min) | 59 |
| Throat Capacity (Inches) | 13 |
| Laminator Type | Pouch Laminator |
| Number of Rollers | 6 |
| Warranty | 1 year |
| User Type | Commercial |
| Reverse Function | Yes |
| Temperature Settings | Adjustable |
| Speed Settings | Adjustable |
| Cold Lamination | Yes |
| Heat-up Time (mins) | 6 |
Product Description:

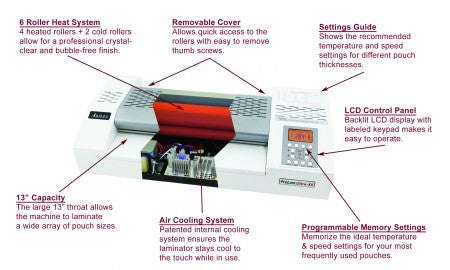

Features of the Akiles ProLam Ultra-X6 Laminator
- 13 inch throat capacity accommodates documents up to 13 inches wide
- Maximum laminating speed of 59 inches per minute for high volume throughput
- 6 roller system with 4 heated rollers and 2 cold rollers for professional grade results
- Handles laminating pouches up to 14 mil and materials up to 1/8 inch thick
- Adjustable temperature range from 32°F to 284°F with 9 speed settings

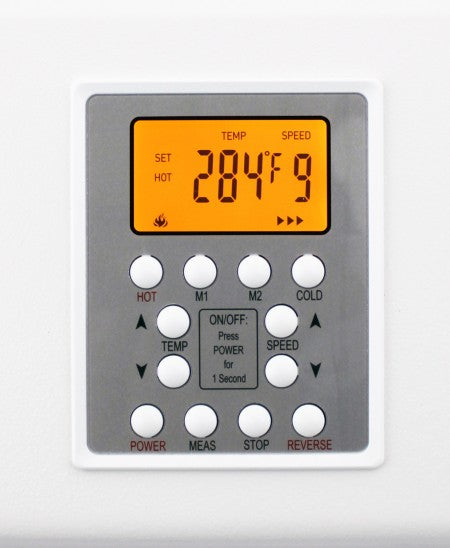

- LCD control panel with M1 and M2 programmable memory settings
- Reverse and stop functions for controlled operation and jam management
- Integrated cooling fan system with automatic shutoff for extended machine life
The ProLam Ultra-X6 Laminator is a heavy duty 6 roller pouch laminator designed for professional environments that demand consistent, high capacity output. Equipped with a 13 inch throat and capable of speeds up to 59 inches per minute, the Akiles ProLam Ultra-X6 Laminator supports efficient production in print shops, schools, and corporate offices. Its 4 heated rollers combined with 2 cold rollers deliver balanced heat application and controlled cooling, producing clear, flat, and bubble free laminated documents. Capable of processing laminating pouches up to 14 mil and materials up to 1/8 inch thick, it accommodates a wide range of document types and applications.
The Ultra-X6 Laminator is backed with a user-friendly LCD control panel that allows precise temperature adjustments from 32°F to 284°F and variable speed control across 9 settings. Two programmable memory keys enable operators to store frequently used configurations, reducing setup time for repetitive jobs. Integrated reverse and stop functions provide greater control during operation, helping manage misfeeds and maintain workflow continuity. An internal cooling fan system works in conjunction with automatic shutoff to regulate temperature and protect internal components, supporting reliable performance during extended laminating sessions.
Frequently Asked Questions
Q. How long does it take to heat up?
A. It takes 5 Minutes to heat up thoroughly.
Q. How many speed control options does it have?
A. It offers 9 separate settings to moderate the speed in the desired manner.
Q. What should I do for accessing the rollers?
A. There is a removable cover on top that comes off easily. Then, there are thumb screws that can be conveniently removed, too. Finally, the rollers can be accessed with ease.
Q. Can the preferred job settings be stored?
A. Yes, you can save your preferred temperature and speed settings for frequent use with its Programmable Memory Settings.
Q. How can I know which settings to choose for my project?
A. There is a Settings Guide printed on the machine that gives the recommended temperature and speed settings for various pouch thicknesses. It can be taken as a reference.
