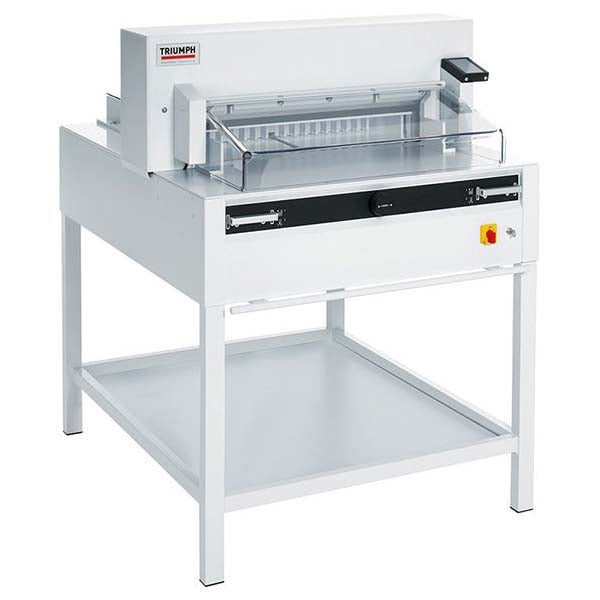

MBM Triumph 6655 Automatic Programmable Cutter
MBM Triumph 6655 Automatic Programmable Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MBM Triumph 6655 Automatic Programmable Cutter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Manufacturer | MBM |
| SKU | CU0491 |
| Length Behind Blade (Inches) | 24 |
| Narrow Cut (Inches) | 1 |
| Cutting Width (inches) | 25.5 |
| Type of cutter | Programmable Cutter |
| Cutting Height (Inches) | 3 |
| Paper Clamp | Automatic |
| Motor output | 2 horsepower |
| Dimensions (H”xW”xD”) | 51 x 39 x 48 |
| Power Supply (Volts) | 115V |
| Shipping weight (pounds) | 772 |
| User Type | Large Office |
| Optional Accessories | Side Tables |
| Applications | Print Shops, Copy Centers |
| Cutting Material | Paper |
| LED Laser Cut Line | Yes |
| Safety Feature | Comprehensive SCS Safety Package |
Product Description:
- Easy Cut electronic blade activation bars
- Digital touchpad to program up to 99 custom jobs

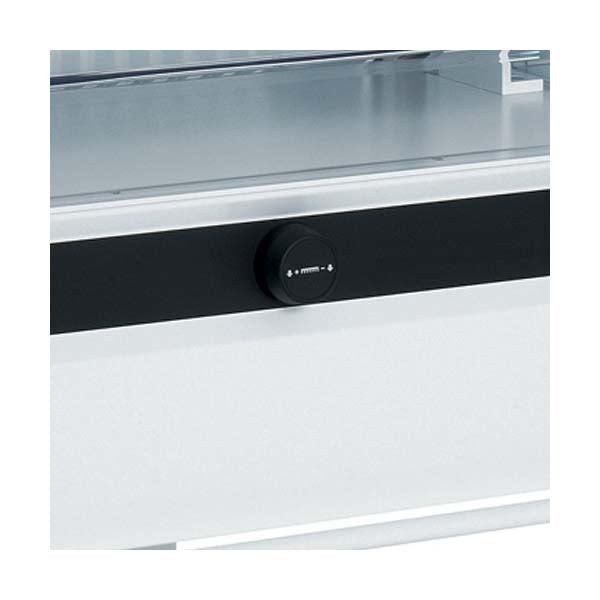

- Back guide adjustable via micro-adjustment electronic wheel

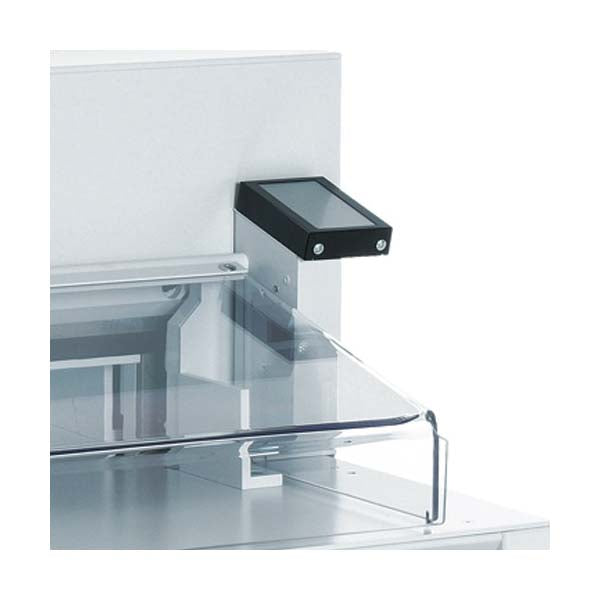

- Transparent safety cover
- Safe blade changing operation
- Ergonomic design for comfort
MBM Triumph 6655 Automatic Cutter is an automated precision cutter built with all contemporary needs in mind. For high-end customers who need to save time and make optimal use of their resources, there is no better option than this. 6655 paper Cutter has amazing cutting capabilities owing to its 25 ½” x 3” cutting panel and razor-sharp cutting blade. The whole automated process is operated via the Easy Cut electronic blade activation bars that only need to be pressed down for clamping and cutting. This feature increases the speed of cutting and also leaves no room for accidents as it works on a two-hand operation. 6655 also has an adjustable power back gauge whose exact position, accurate to 1/100th of an inch, is displayed on a touchpad. For micro-adjustments, the electronic wheel can be utilized in collaboration with this display. This same touchpad incorporates an immense feature in the form of programmable jobs. Up to 99 custom jobs, each with up to 99 steps, can be saved in the 6655 to be recalled for later use. MBM automatic cutters make no compromises on user safety. To minimize the chances of physical damage due to sharp blades, a transparent safety cover over the cutting panel and blade coverings that sheath the blade while changing are included in its design.
Frequently Asked Questions
Q: What type of cutting volume is the MBM Triumph 6655 designed for?
A: The MBM Triumph 6655 is intended for large offices and in-plant finishing environments that require frequent cutting of large paper stacks with consistent accuracy.
Q: How precise is the cutting setup on the MBM Triumph 6655?
A: A powered back gauge with a 7-inch multilingual touchscreen and electronic hand wheel allows precise positioning with accuracy down to 1/10 mm or 1/100 inch.
Q: Can cutting programs be saved and reused?
A: Yes, the control system stores up to 99 programs with 99 steps each, making it easy to recall complex or repeat cutting jobs.
Q: Is the clamp pressure adjustable for different paper stacks?
A: Yes, the hydraulic clamp pressure can be adjusted between 1,900 and 3,800 psi to securely hold varying stack thicknesses.
Q: What safety features are included on the MBM Triumph 6655?

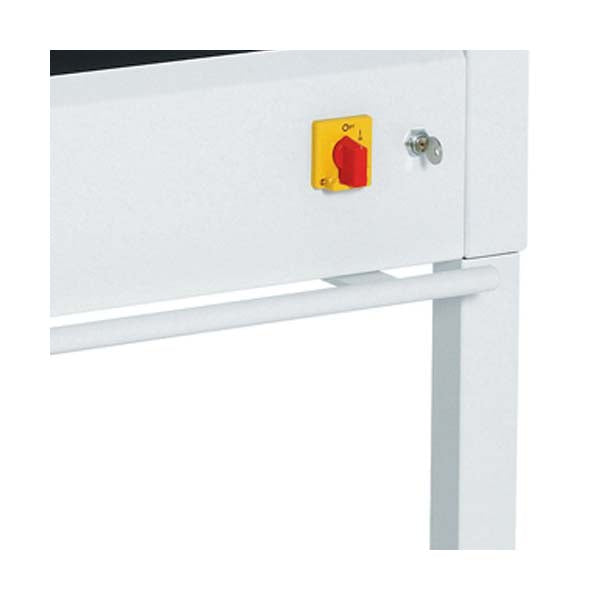

A: Safety features include EASY CUT two-hand operation, a transparent safety guard, disc brake, safety lock with key, and automatic blade return.
