MBM  |  SKU: CU0493VP

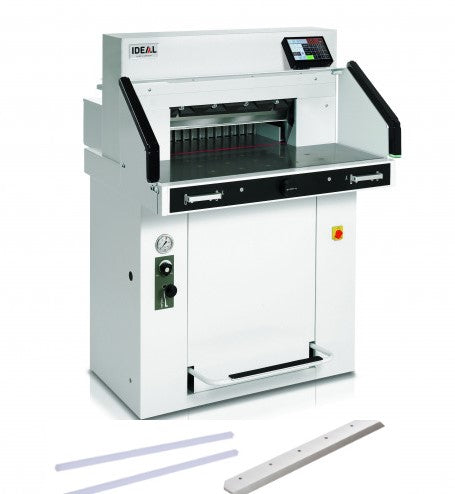

MBM Triumph 5560 Programmable Cutter Package

Programmable Cutter with 1000 Sheet Capacity, 21.62" Cutting Length and 1.25" Narrow Cut with Cutting Sticks , Cutting Knives and Side Tables

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name MBM Triumph 5560 Programmable Cutter Package
Manufacturer MBM
Dimensions (H”xW”xD”) 54 x 42 (64 w/ side tables) x 55
Length Behind Blade (Inches) 22.43
Narrow Cut (Inches) 1.25
Cutting Width (inches) 21.62
Sheet Capacity 1000
Operation Programmable Hydraulic
Type of cutter Programmable Cutter
Cutting Height (Inches) 3.75
Blade Drive Hydraulic
Paper Clamp Adjustable Hydraulic
Back Gauge Setting Electronic Hand Wheel
Warranty 1 year
Country of Origin Germany
Power Supply (Volts) 115v, 60Hz, 20 amp dedicated line req.
User Type Commercial
Optional Accessories Side Tables
Applications Print Shops, Copy Centers
Cutting Material Paper
LED Laser Cut Line No
Safety Feature Comprehensive SCS Safety Package
Product Description:

Features of MBM Triumph 5560 Automatic Paper Cutter
  • Programmable hydraulic paper cutter with VRCut Software
  • Clamping pressure adjustable between 1900 and 3800 psi
  • Patented EASY CUT ensures safety with two hand operations
  • Equipped with electronic hand wheel for manual back gauge positioning
  • 7” Programmable module with multi lingual touch pad for the power back gauge
  • Assembled with a tool holder on the rear side to keep tools within reach
  • Dimensions of the product is 55" x 42" x 54"
  • Comes with 1-year limited warranty excluding wearables
  • Cutting width and height with false clamp is 21 5/8” and 3 3/4” respectively
  • Programmable module with 99 program storage with 99 steps each
  • Manufactured in Germany
Performance of MBM Triumph 5560 Automatic Paper Cutter

The MBM Triumph 5560 paper cutter is an automatic programmable hydraulic with hydraulic adjustable clamp with adjustable pressure between 1900 and 3800 psi. The cutting width and height of is 21 5/8” and 3 ¾” which enables to cut through couple of hundred of papers at once making it ideal machine for a large office. The uniqueness of these cutters is that it is inclusive of the VRCut software. VRCut controller functions with cut-line indicator with full cut instructions displayed and notifies user at each step of the procedure and VRCut impose functions in which creates barcode for error free recall and printed guidance measure is provided to carry out accurate operations. The 5560-paper cutter is inclusive of variety of features like power back gauge, digital touchpad, IR safety light, two hand operation, disc brake, safety lock etc. for safe and precise paper cutting.

MBM Triumph 5560 Automatic Paper Cutter Package

The automatic programmable 5560 cutter includes electric cutter to provide you with accurate results for your work place. The package includes six cutting sticks (AC0678), cutting knifes (AC0684) for accuracy and side tables 32” (CU0440) with increased work surface.


To ensures customer satisfaction the MBM triumph cutter comes with a 1-year limited warranty excluding wearables for your workplace to have the exclusive cutting experience.
