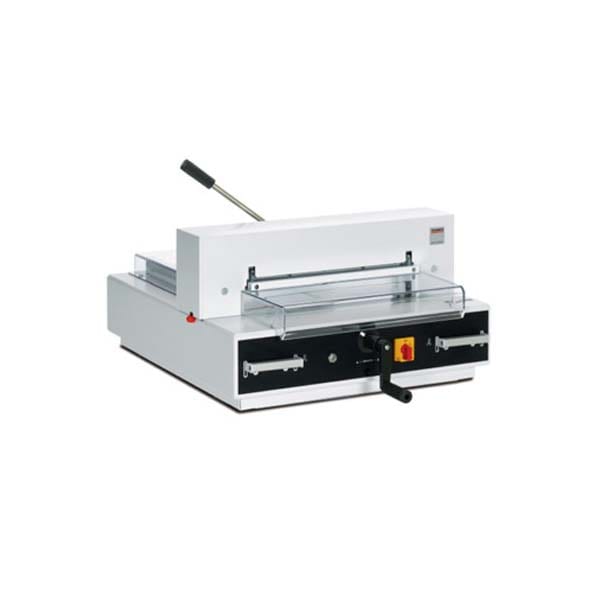

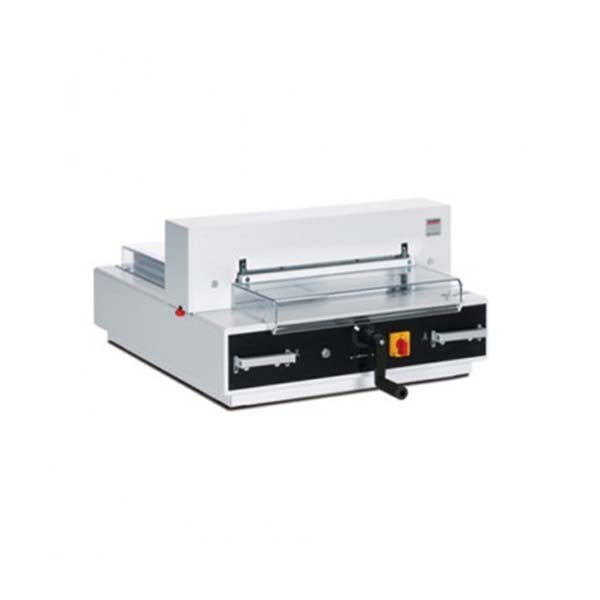

MBM Triumph 4315 Semi-Automatic Cutter
MBM Triumph 4315 Semi-Automatic Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
MBM Triumph 4315 Semi-Automatic Cutter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Manufacturer | MBM |
| SKU | CU0451L |
| Length Behind Blade (Inches) | 17 |
| Narrow Cut (Inches) | 1 3/8 |
| Cutting Width (inches) | 16 7/8 |
| Operation | Semi-automatic |
| Cutting Height (Inches) | 1 1/2 |
| Blade Drive | Electric |
| Paper Clamp | Manual |
| Back Gauge Setting | Calibrated Hand Crank |
| Power Supply (Volts) | 115 |
| Dimensions (H”xW”xD”) | 34 1/4 x 25 x 14 |
| Shipping Weight (pounds) | 191 |
| User Type | Commercial |
| Optional Accessories | Stand or Cabinet |
| Applications | Print Shops, Copy Centers |
| Cutting Material | Paper |
| LED Laser Cut Line | Yes |
| Safety Feature | Comprehensive SCS Safety Package |
Product Description:
MBM Triumph 4315 Semi-Automatic Paper Cutter is a new way of cutting huge stacks of papers within few minutes. 4315 paper cutter has a Solingen steel blade that is operated by an electric blade drive for speeding up the process. The blade is handled safely by the steel blade carrier and adjustable blade guides its movement. Spindle-guided back gauge with calibrated crank is connected to a digital display with which the users can position it easily the way they like. Precision of the results is further ensured by the LED optical cutting line.
MBM 4315 features a comprehensive SCS™ safety package that has plenty of provisions to ensure the blade becomes the safest tool for the users.This MBM semi-automatic cutter is also UL and C UL approved.
- Solingen steel blade managed by separate steel blade carrier and adjustable blade guides
- Patented clamp that can be activated with a lever and performs the function in an adept manner
- Precision side guide for helping the users decide the exact point for placing the cuts
- Spindle-guided back gauge with calibrated crank for greater precision of the cuts

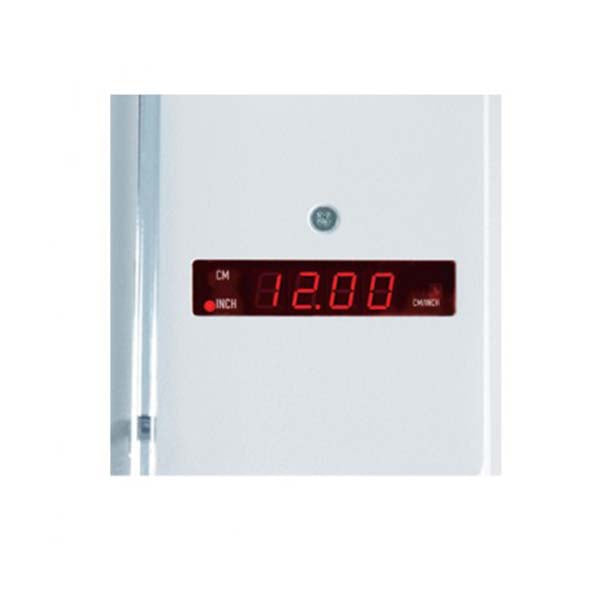

- Back gauge connected to a digital display that facilitates in its accurate positioning
- LED optical cutting line for avoiding errors during the cutting process
- Pure metal chassis to support the functions invariably
- Optional stand or cabinet is available with MBM 4315
Frequently Asked Questions
Q: How much paper can the MBM Triumph 4315 cut at one time?
A: The MBM Triumph 4315 has a cutting height of 1 1/2 inches and a cutting width of 16 7/8 inches. This capacity is suitable for cutting large stacks efficiently in production environments.
Q: Is the MBM Triumph 4315 safe for regular operator use?

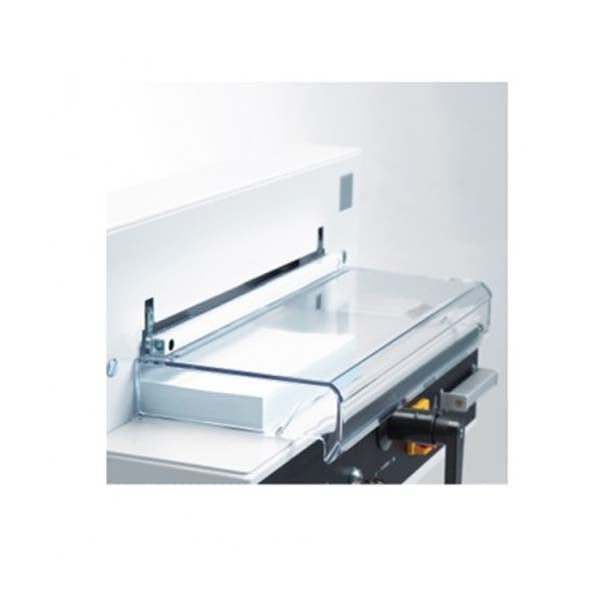

A: Yes, it includes the SCS™ safety package with two-hand EASY CUT blade activation, transparent safety guards, automatic blade return, and an instant blade stop. These features are designed to help reduce operator risk during daily use.
Q: How do I set accurate cut measurements on the MBM Triumph 4315?
A: The cutter uses a spindle-guided back gauge with a calibrated hand crank and a digital display. Users can position cuts precisely in inches or centimeters, supported by an LED optical cutting line.
Q: Can the MBM Triumph 4315 be used with a stand or cabinet?
A: Yes, the MBM Triumph 4315 can be paired with an optional stand or storage cabinet. These accessories help improve working height, stability, and overall operator comfort.
Video of MBM Triumph 4315 Semi-Automatic Cutter
