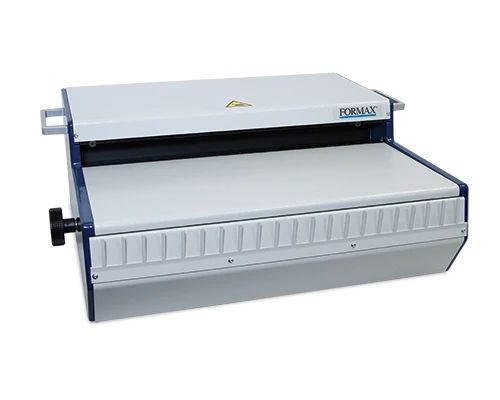

Formax Wire300 Electric Wire Binding Machine
Formax Wire300 Electric Wire Binding Machine is backordered and will ship as soon as it is back in stock.
Formax Wire300 Electric Wire Binding Machine
Formax Wire300 Electric Wire Binding Machine is backordered and will ship as soon as it is back in stock.
Spec Sheet: View PDF File
Product Specifications
| Pitch | 2:1, 3:1, 4:1 |
| Binding Thickness | 0.03 inch - 1.3 inches (1 - 34mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 19.6 inches (500mm) |
| Min. Unbound Edge | 2.5 inches (65mm) |
| Max. Unbound Edge | 23.6 inches (600mm) |

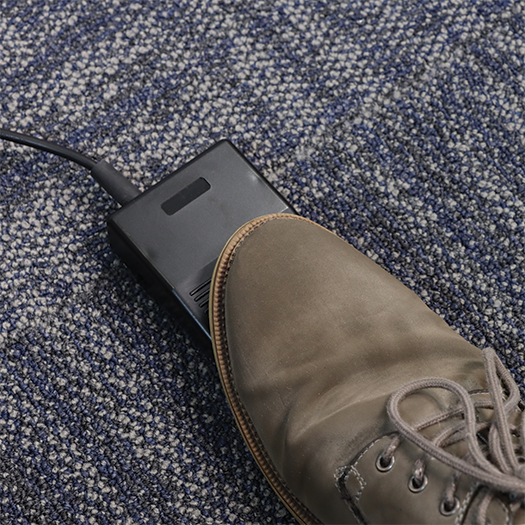

| Binding Operation | Electric, foot pedal |
| Binding Speed | Up to 400 booklets/hr |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4 inch - 1 1/2 inches |
| Dimensions | 25 x 21 x 9.25 inches (635 x 533 x 235mm) |
| Weight | 101 lbs (46kg) |
| Power | 115V, 60Hz, 250W |
Product Description:

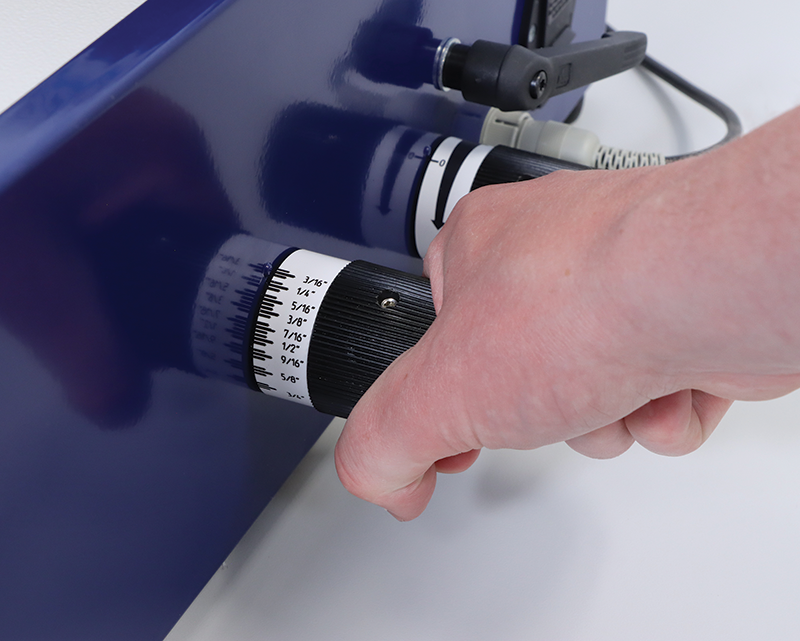

The Formax Wire300 Electric Wire Binding Machine uses foot pedal operation to close double-loop wire around wider documents. A wire diameter hand wheel and parallel adjustment knob control the closing settings.
Key Features:
- Bind up to 400 booklets per hour with electric foot pedal operation.
- Handle up to 340 sheets using wire diameters from 1/4 inch to 1 1/2 inches.
- Accommodate documents up to 19.6 inches wide.
- Bind with 2:1, 3:1, and 4:1 pitch wire.

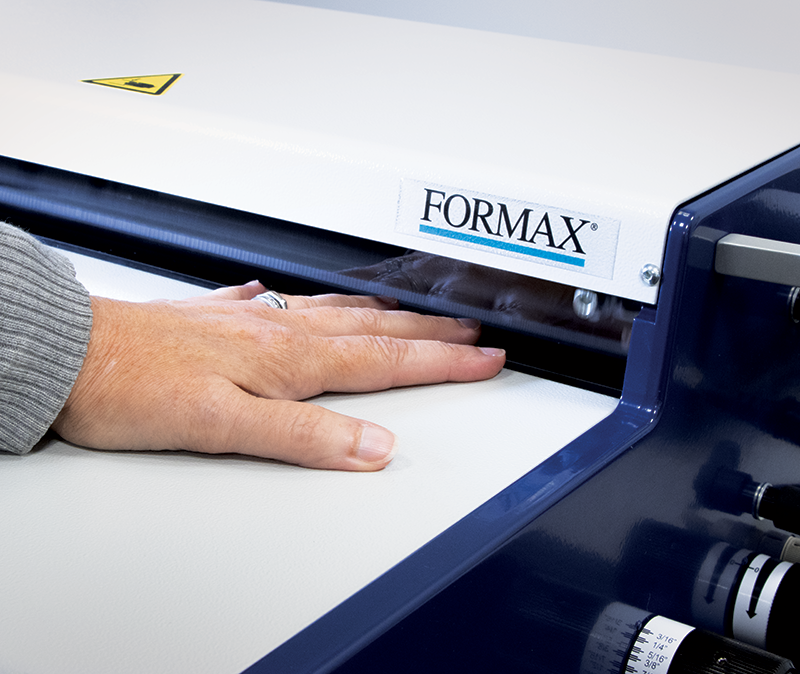

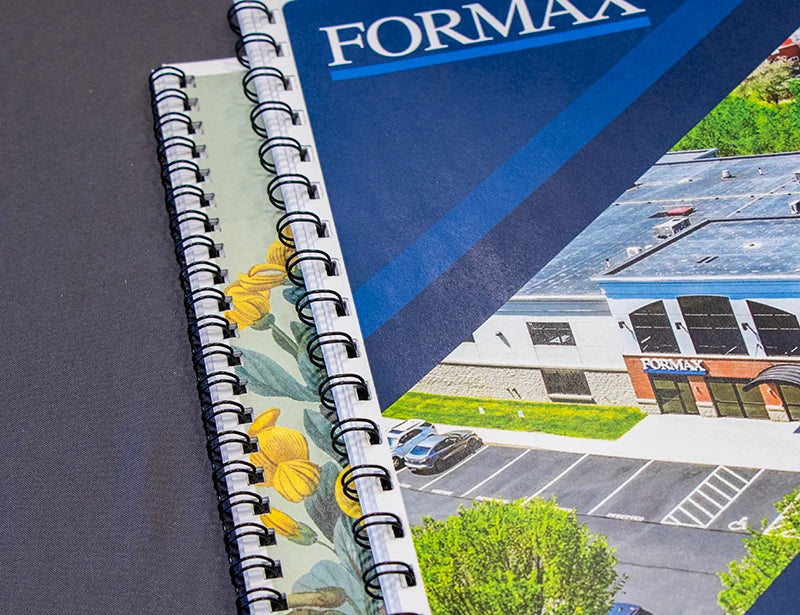

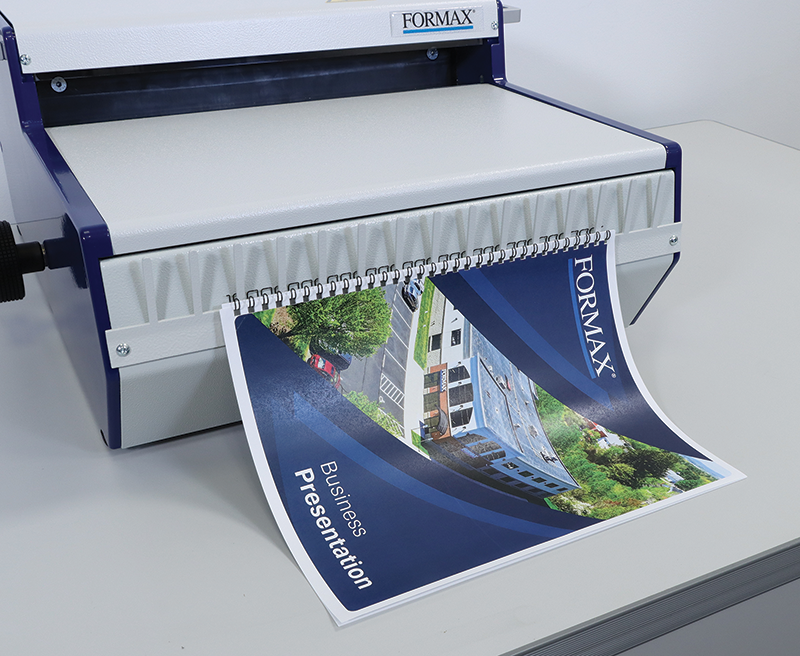

The Wire300’s heavy-duty all-metal construction supports frequent use. An integrated wire holder assists page loading, while an automatic safety shut-off sensor stops the machine and cuts power. It suits print shops and production teams preparing wider booklets, manuals, and presentations that open 360 degrees and lie flat.
