Formax ReadyCoilM Combination Punch & Coil Binding Machine
Formax ReadyCoilM Combination Punch & Coil Binding Machine is backordered and will ship as soon as it is back in stock.
Formax ReadyCoilM Combination Punch & Coil Binding Machine
Formax ReadyCoilM Combination Punch & Coil Binding Machine is backordered and will ship as soon as it is back in stock.
Spec Sheet: View PDF File
Product Specifications
| Punching Speed | Up to 8,000 sheets/hr |
| Punching Width | 0.39 inch - 14 inches (10 - 360mm) |
| Unpunched Length | 1.96 inches - 10.6 inches (50 - 270mm) |
| Max. Punching Thickness | Up to 0.078 inch (2mm) |
| Punching Operation | Manual |
| Punch Dies | Oval 5.0 x 4.0mm |
| Pitch | 0.2475 inch (6mm) |
| Disengageable Punch Pins | Yes |
| Binding Thickness | 0.04 inch - 0.62 inch (1 - 16mm) |
| Binding Width | 0.39 inch - 14 inches (10 - 360mm) |
| Binding Operation | Electric insert, manual crimp & cut |
| Binding Speed | Up to 50 booklets/hr |
| Max. Binding Capacity | Up to 160 sheets |

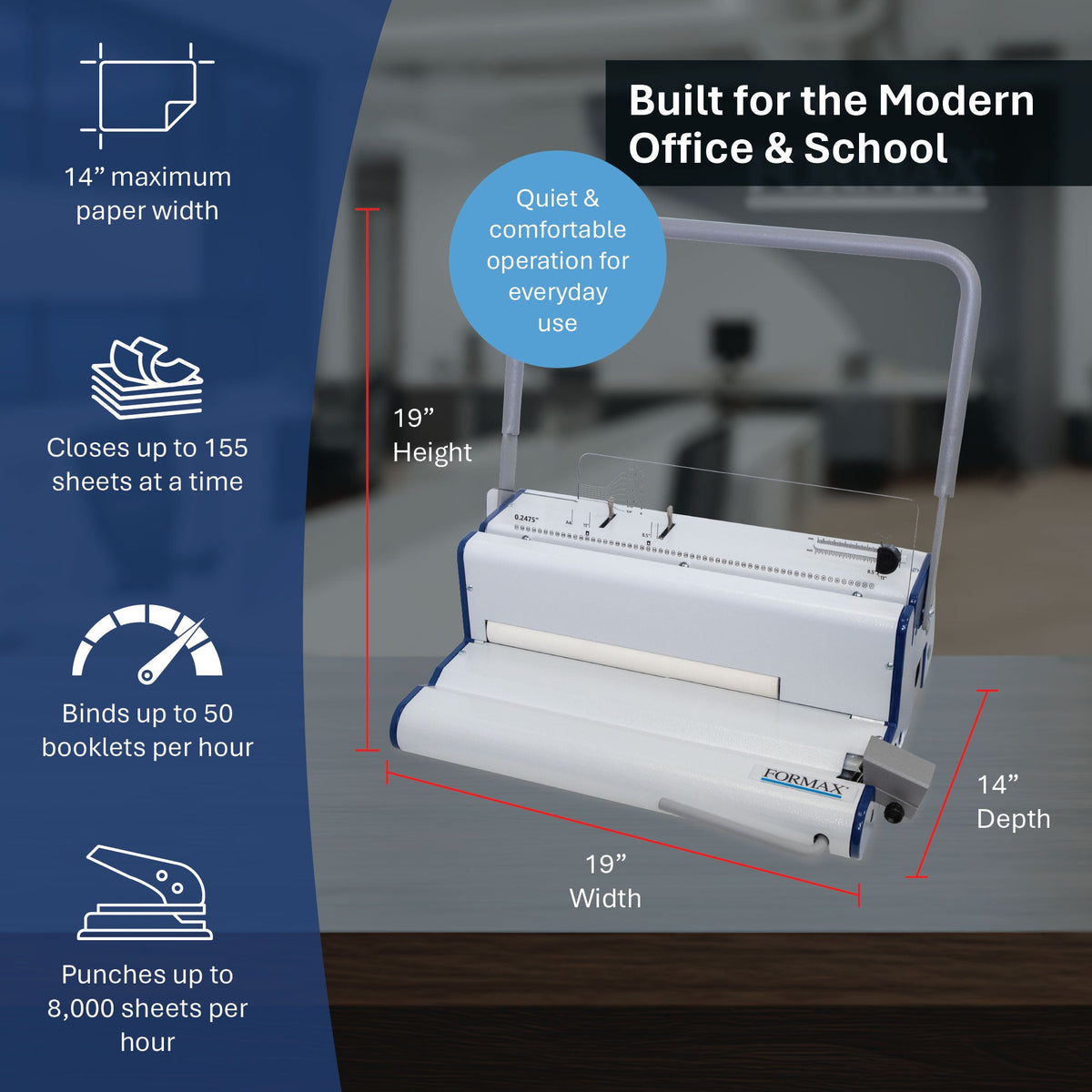

| Dimensions | 18.5 x 14 x 18.5 inches (470 x 355 x 470mm) |
| Weight | 42 lbs (19kg) |
| Power | 115V, 60Hz, 90W |
Product Description:

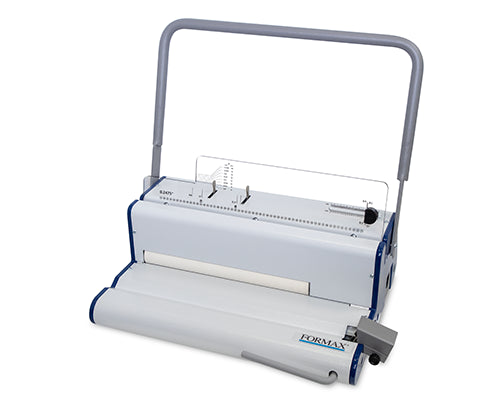

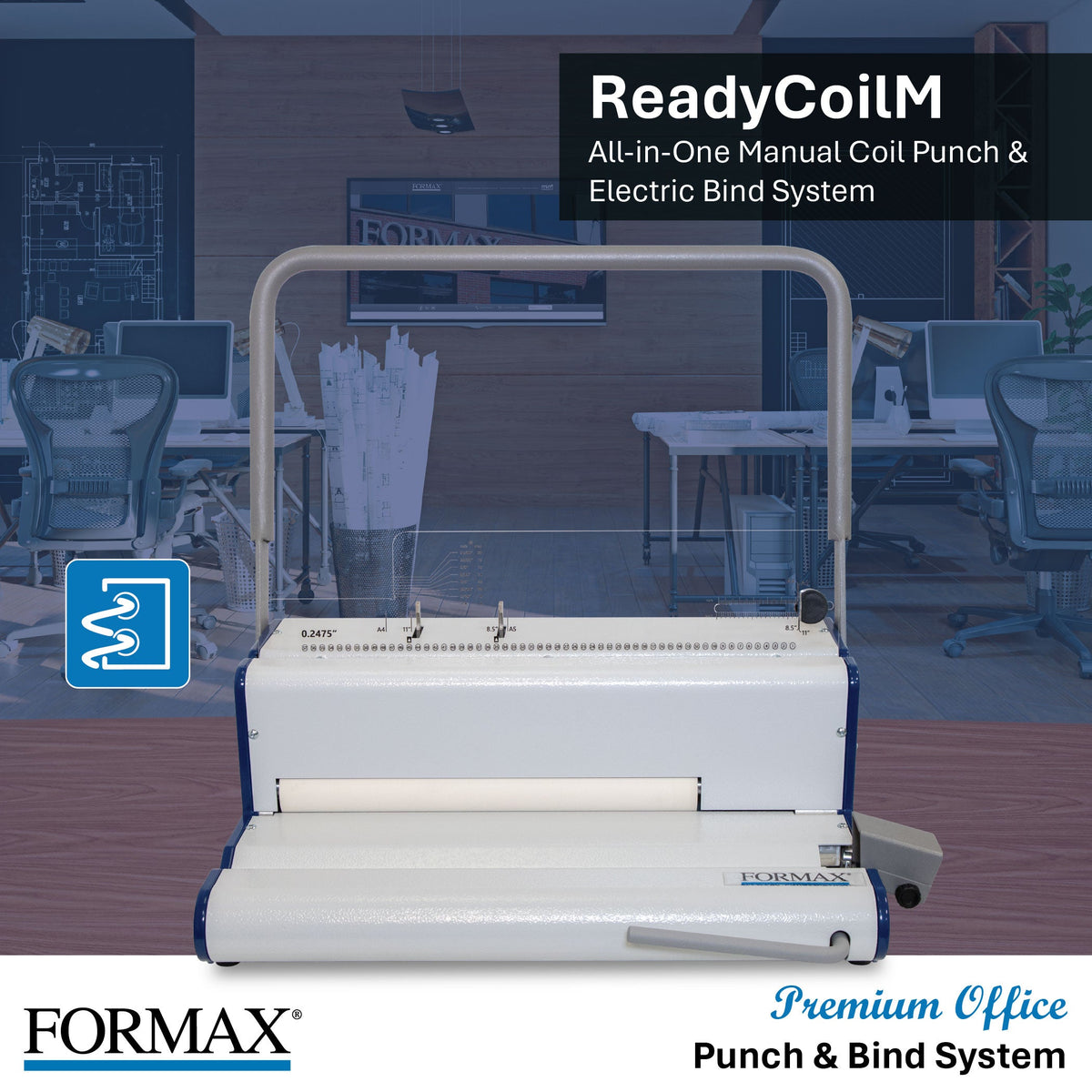

The Formax ReadyCoilM Combination Punch and Coil Binder combines manual punching with electric coil insertion. Its integrated cutting and crimping tool completes the binding process by trimming and securing coil ends.
Key Features:
- Punch up to 8,000 sheets and bind up to 50 booklets per hour.
- Bind documents up to 160 sheets thick using PVC spiral coil.

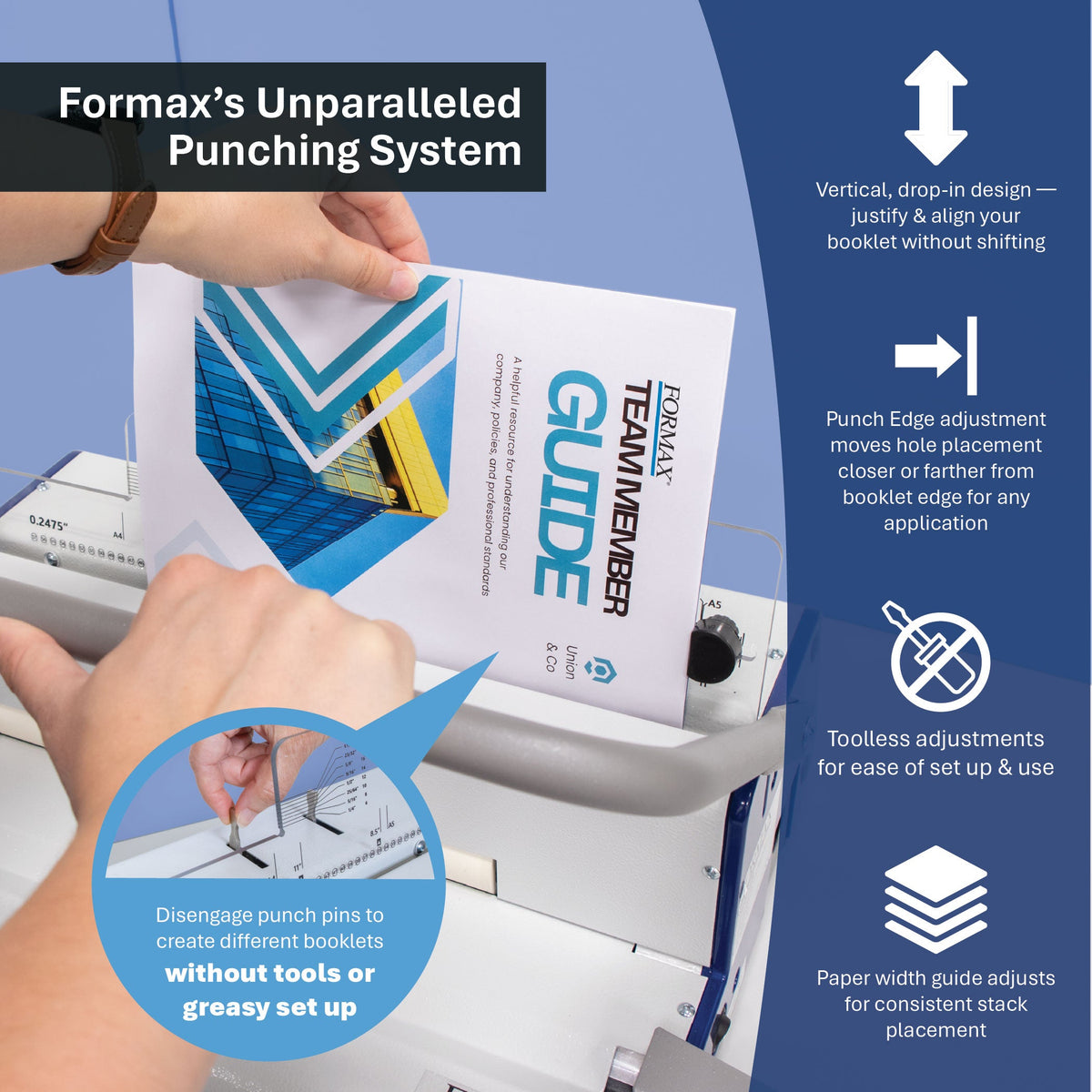

- Align sheets vertically and adjust hardened punch pins without tools to prevent partial holes.
- Thread coil with an electric rubber roller, then secure the ends with a 45-degree crimp.
The ReadyCoilM’s heavy-duty construction supports regular use, while document and coil measuring guides help operators select the appropriate coil diameter. Knob slides simplify size adjustments, a sliding waste tray eases cleanup, and an automatic roller stop supports operator safety. It is designed for offices, schools, and print rooms with low to medium volume binding needs, including reports, manuals, and classroom materials.
Video of Formax ReadyCoilM Combination Punch & Coil Binding Machine
