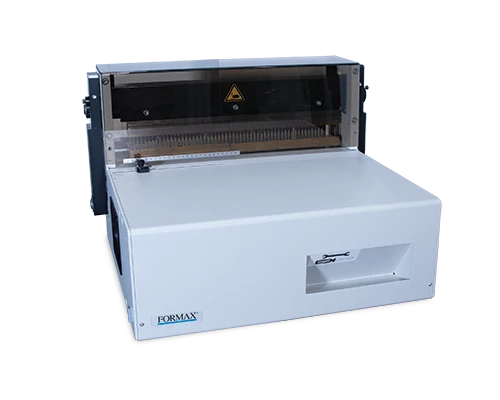

Formax Punch200 Heavy-Duty Electric Punching Machine
Formax Punch200 Heavy-Duty Electric Punching Machine is backordered and will ship as soon as it is back in stock.
Formax Punch200 Heavy-Duty Electric Punching Machine
Formax Punch200 Heavy-Duty Electric Punching Machine is backordered and will ship as soon as it is back in stock.
Spec Sheet: View PDF File
Product Specifications
| Mechanical Cycles | Up to 3,000/hr |
| Min. Punching Width | 2.4 inches (60mm) with foot pedal 4.1 inches (105mm) with micro switch |
| Max. Punching Width | Up to 19.7 inches (500mm) |
| Min. Unpunched Length | 2.75 inches (70mm) with foot pedal 4.3 inches (110mm) with micro switch |
| Max. Unpunched Length | Up to 31.5 inches (800mm) |
| Max. Punching Thickness | Up to 0.15 inch (4mm) |

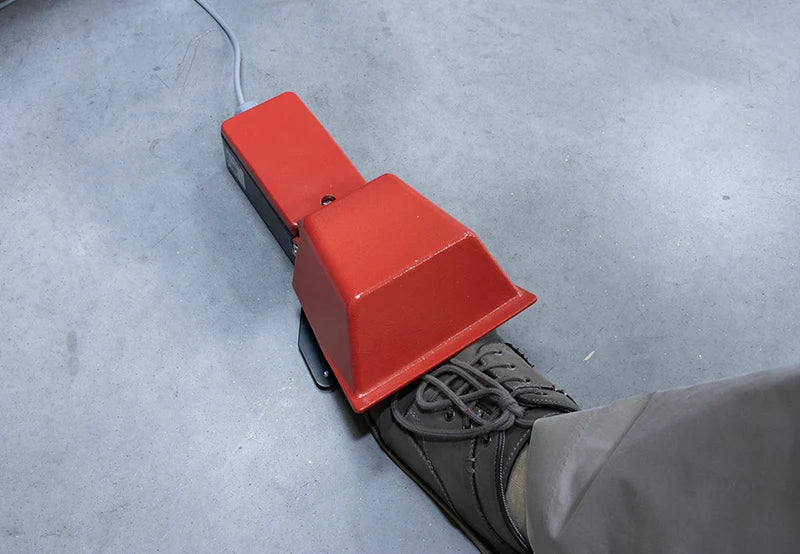

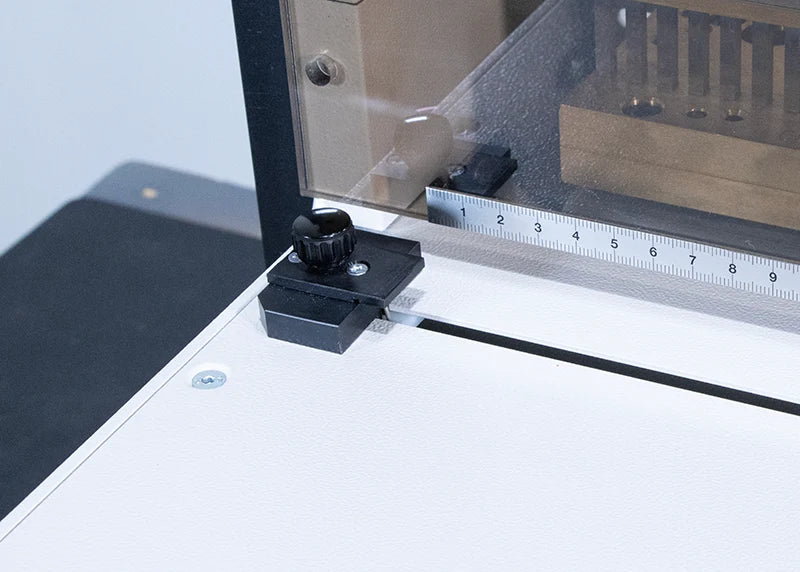

| Punching Operation | Micro switch sensor or foot pedal |
| Punch Dies Available | 3:1, 2:1 ReadyWire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | No |
| Dimensions | 26.4 x 17.7 x 15.7 inches (670 x 450 x 400mm) |
| Weight | 247 lbs (112kg) |
| Power | 208V, 3 Phase, 20A, 50/60Hz |
Product Description:

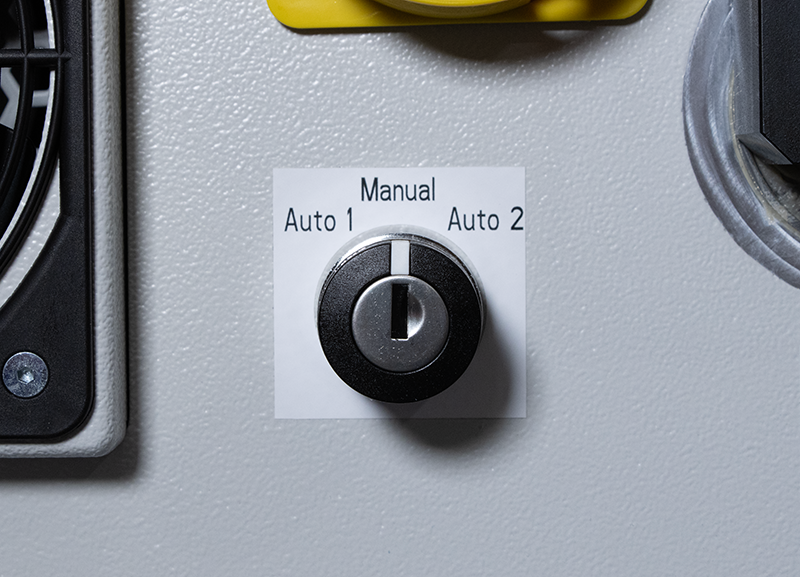

The Formax Punch200 Heavy-Duty Electric Punching Machine prepares documents for wire, comb, and coil binding using horizontal paper feeding. A mode select switch lets operators choose foot pedal or micro switch sensor activation.
Key Features:
- Run up to 3,000 mechanical cycles per hour.
- Punch stacks up to 0.15 inch (4 mm) thick across widths up to 19.7 inches.

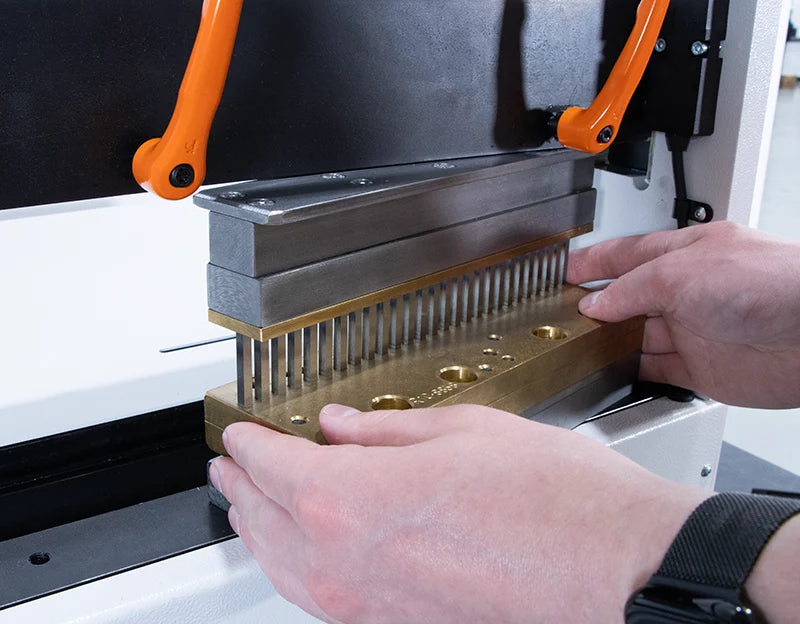

- Change wire, comb, and coil punching dies in under three minutes.

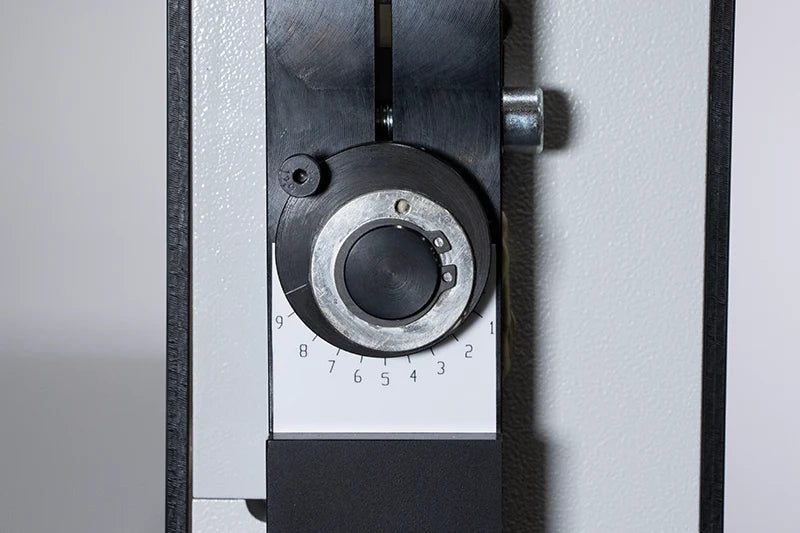

- Adapt to paper sizes with disengageable pins and accommodate resharpened dies with eccentric shaft adjustment.
The Punch200’s heavy-duty all-metal construction supports production use, while a Plexiglas cover helps protect operators during punching. It can be paired with the Formax Wire200 or Wire300 for document punching and binding. It is designed for print shops and high-volume production teams preparing reports, manuals, and wider-format booklets.
