Formax Punch100A Semi-Automatic Electric Punching Machine
Formax Punch100A Semi-Automatic Electric Punching Machine is backordered and will ship as soon as it is back in stock.
Formax Punch100A Semi-Automatic Electric Punching Machine
Formax Punch100A Semi-Automatic Electric Punching Machine is backordered and will ship as soon as it is back in stock.
Spec Sheet: View PDF File
Product Specifications
| Mechanical Cycles | Up to 1,200/hr |
| Max. Punched Sheets | Up to 36,000/hr |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 4.3 inches - 31.5 inches (110 - 800mm) |
| Max. Punching Thickness | Up to 0.13 inch (3.5mm) |
| Punching Operation | Automatic sensor or foot pedal |
| Punch Dies Available | 3:1, 2:1 double-loop wire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 34.6 x 25 x 15 inches (880 x 640 x 380mm) |
| Weight | 116 lbs (53kg) |
| Power | 115V, 60Hz, 300W |
Product Description:

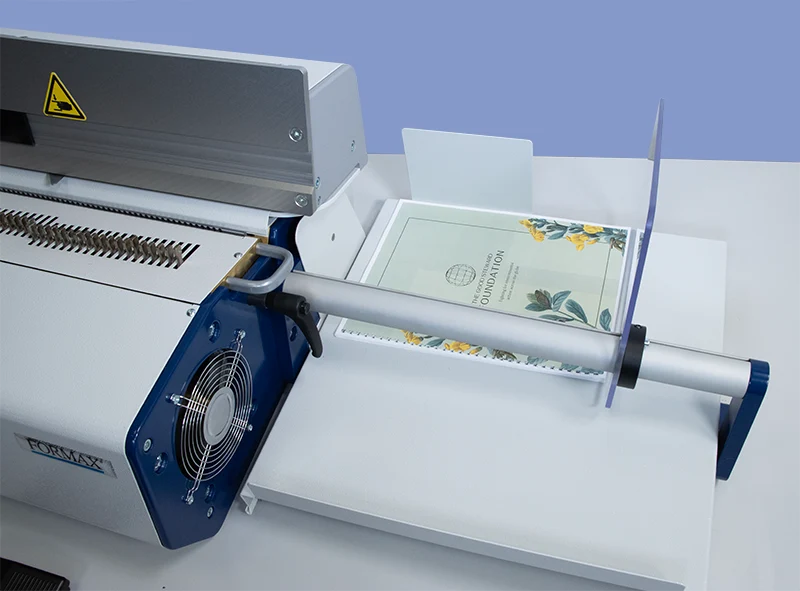

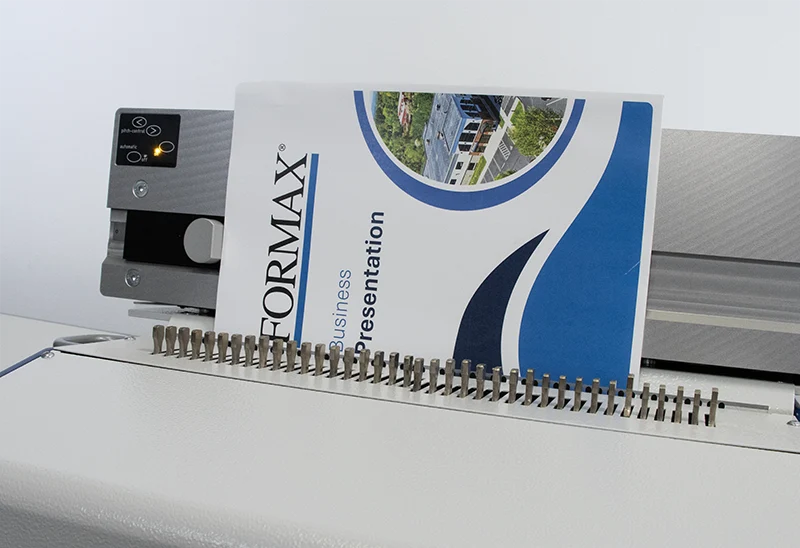

The Formax Punch100A Semi-Automatic Electric Punching Machine activates punching when paper reaches the sensor in its adjustable paper stop. Punched sheets are then ejected automatically onto an adjustable catch tray.
Key Features:
- Punch up to 36,000 sheets per hour at up to 1,200 mechanical cycles per hour.
- Select automatic sensor or foot pedal activation.

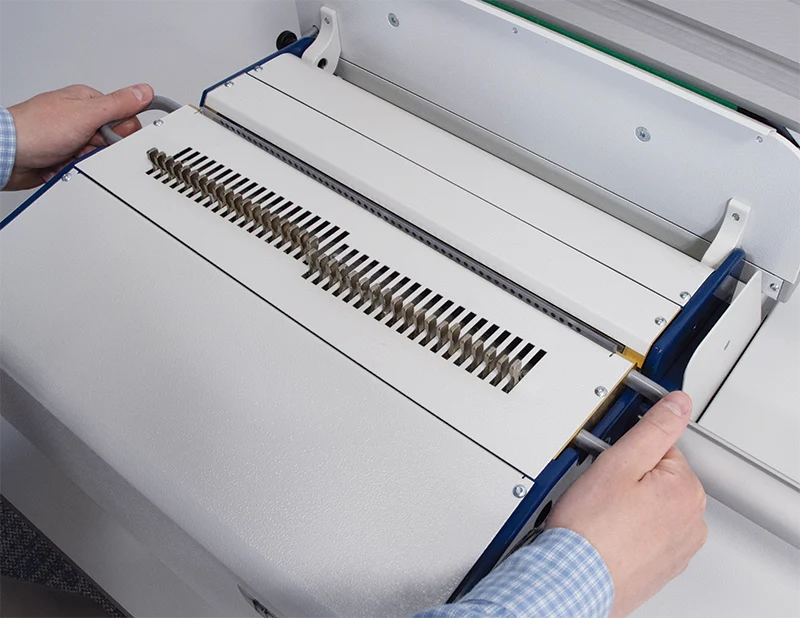

- Change wire, comb, and coil punching dies without tools.

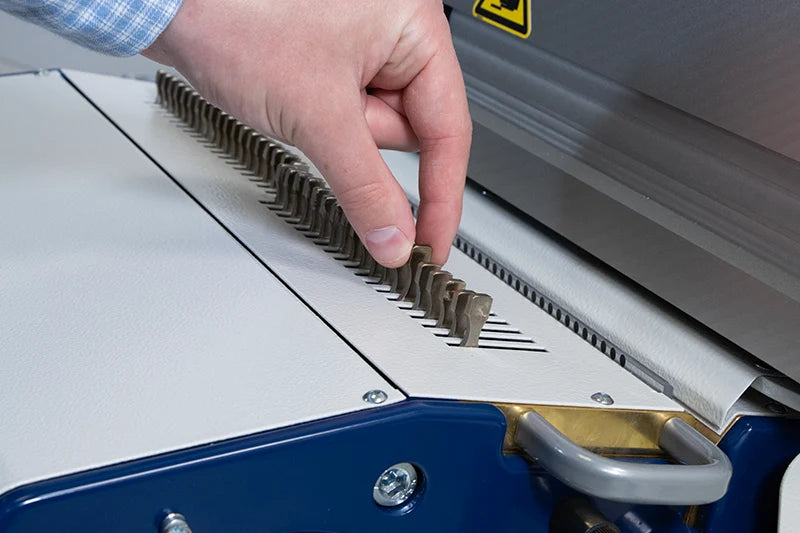

- Control hole placement with a depth gauge, variable margin depth, and disengageable punch pins.

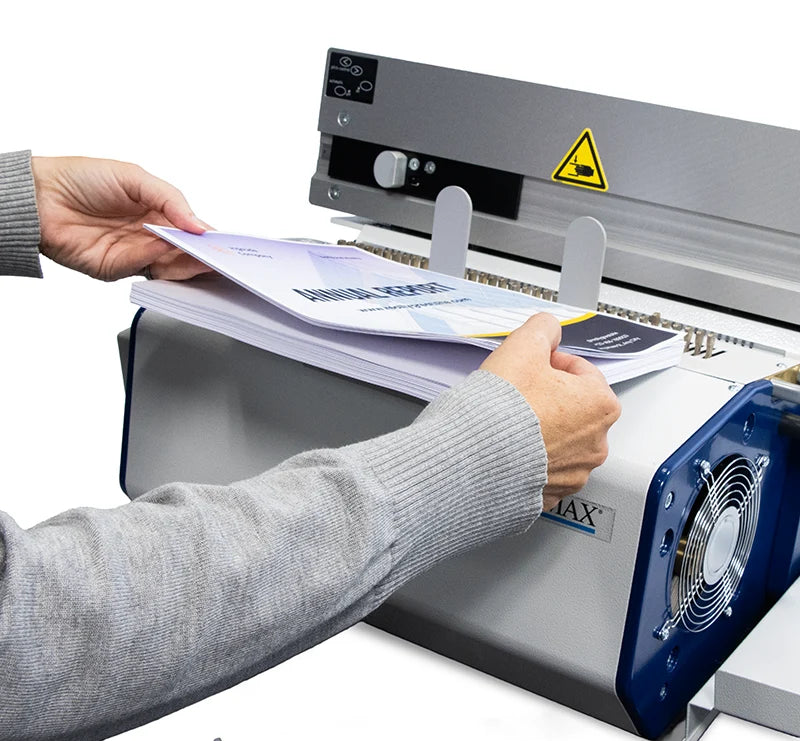

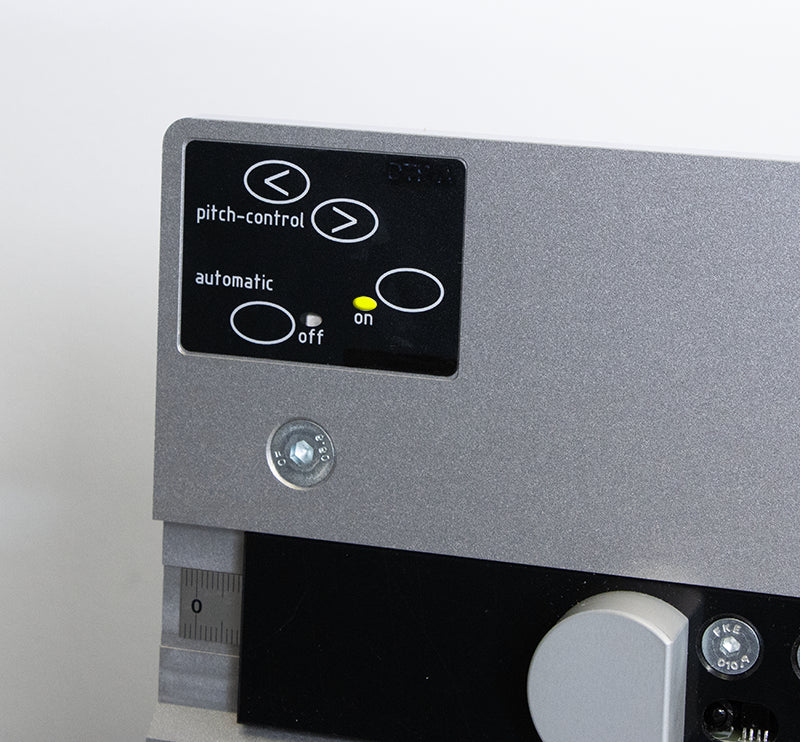

The Punch100A’s heavy-duty construction supports regular use. LED indicators display paper format, pitch, and sensor status, while a document shelf keeps pages in order before punching. A large slide-out waste tray simplifies cleanup. It suits busy offices and print rooms preparing reports, manuals, and booklets for wire, comb, or coil binding.
