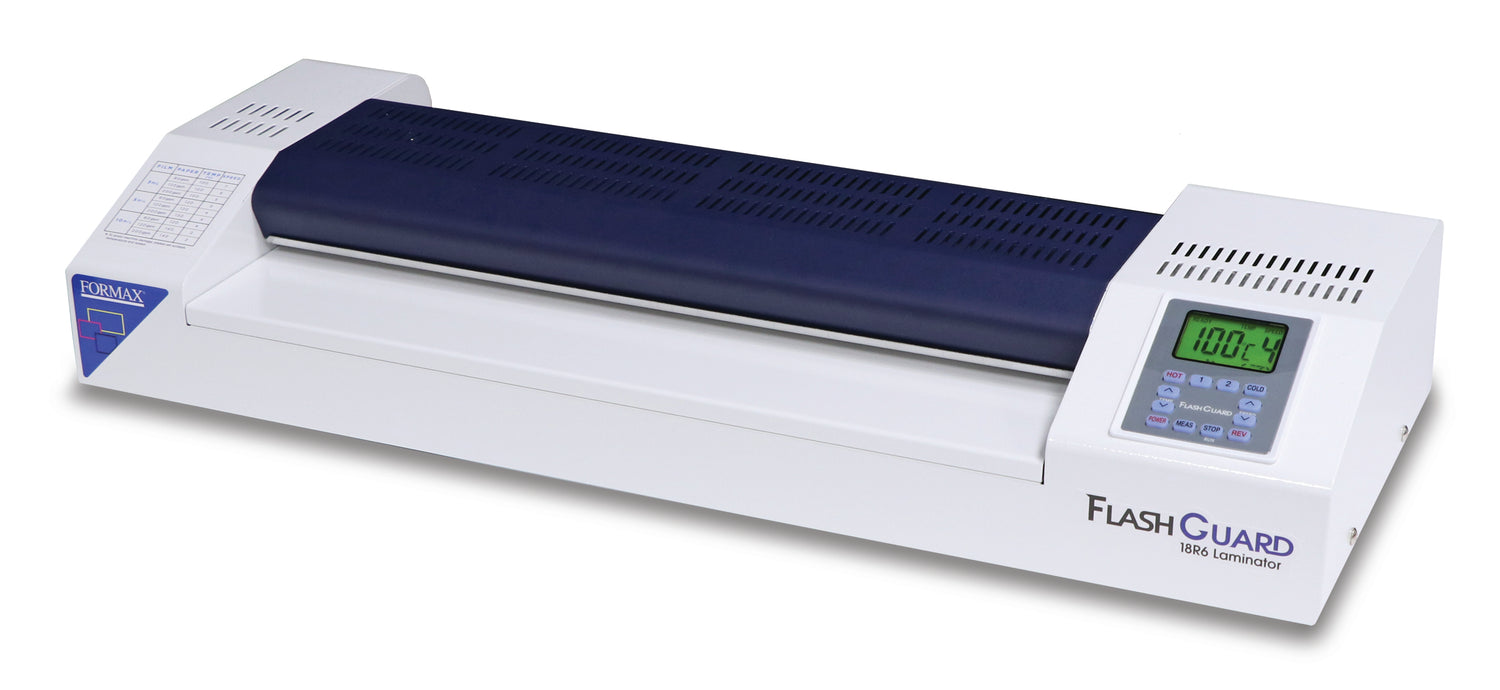

Formax FlashGuard 18R6 18 Inch Pouch Laminator
Formax FlashGuard 18R6 18 Inch Pouch Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FlashGuard 18R6 18 Inch Pouch Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Max Pouch Width | Up to 18” (457mm) |
| Max Speed | Up to 47” per minute (1,200mm/min) |
| Max Pouch Thickness | Up to 14mil (350 mic) |
| Max Laminating Thickness | Up to .118” (3mm) |
| Number of Rollers | 6 |
| Temperature | Up to 320 degrees F (160 C) |
| Temp & Speed Control | Yes |
| Preheating Time | 6 minutes |
| Dimensions | 27” L x 10.6” D x 5” H (690 x 271 x 112mm) |
| Weight | 44 lbs (20kg) |
| Power | 1,500 watt 110-120V, 50/60Hz, 15A |
Product Description:
- 18" pouch laminator

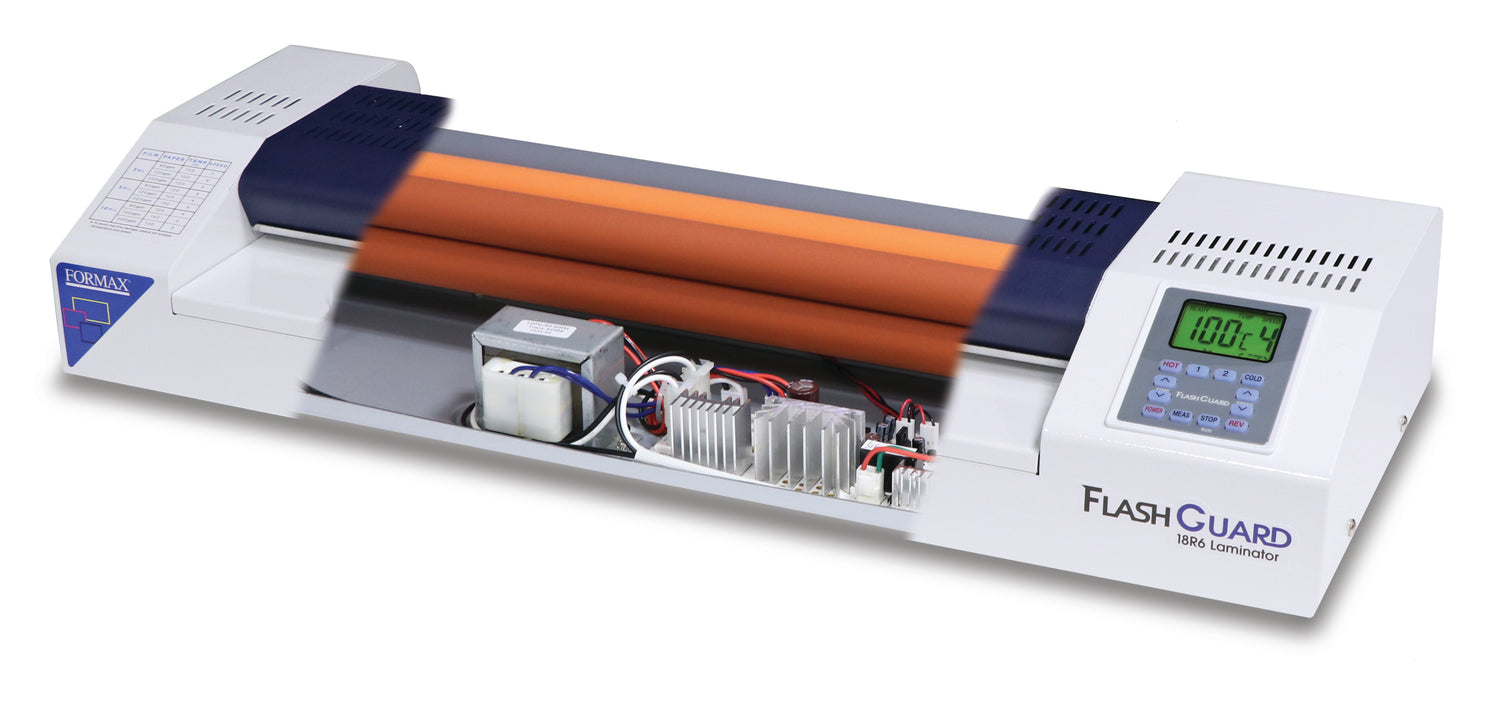

- Six-roller system
- Precise temperature control
- Up to 47 inches per minute
- LCD control panel
- Speed and temperature chart
- Cold lamination mode
The Formax FlashGuard 18R6 Pouch Laminator delivers professional-grade results for documents, photos, menus, signs, and marketing materials. Its six-roller system ensures smooth, even sealing that preserves clarity and durability. Precise temperature control helps you match settings to the pouch and material for consistent, high-quality finishes.
An 18-inch feed width handles everything from letter size projects to large charts and posters with ease. The intuitive LCD control panel and printed speed and temperature chart simplify setup for different pouch thicknesses and document types. A cold lamination option protects heat-sensitive items, while custom setting memory and a top speed of up to 47 inches per minute keep high-volume workflows efficient.
Frequently Asked Questions
Q: What is the maximum laminating width of the Formax FlashGuard 18R6 Pouch Laminator?
A: The Formax FlashGuard 18R6 laminates pouches up to 18 inches (457 mm) wide, making it suitable for larger documents, posters, menus, maps, and charts.
Q: How fast can the Formax FlashGuard 18R6 laminate materials?
A: The Formax FlashGuard 18R6 laminates at speeds up to 47 inches per minute (1,200 mm/min), supporting steady, high-volume production in offices and print environments.
Q: What pouch thicknesses are compatible with the Formax FlashGuard 18R6?
A: This model supports laminating pouches up to 14 mil thick and accommodates items up to 3 mm in overall laminating thickness for added durability.
