Formax FD 7202-Special 3F High Volume Modular Inserter
Formax FD 7202-Special 3F High Volume Modular Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 7202-Special 3F High Volume Modular Inserter
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 7202-Special 3F High Volume Modular Inserter |
| Manufacturer | Formax |
| SKU | FD 7202-Special 3F |
| Dimensions (H”xW”xD”) | 36” H x 107” W x 25” D |

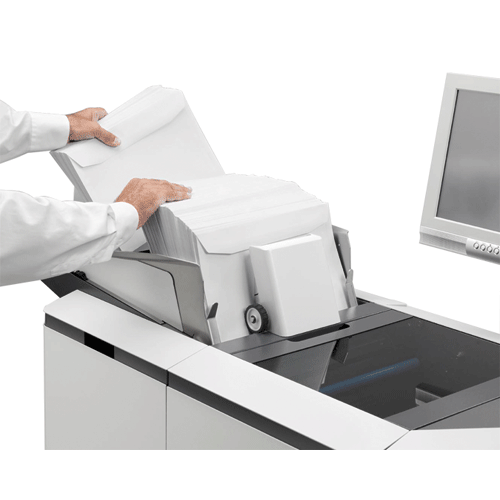

| Envelope Hopper Capacity (Envelopes) | 800 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 5000 |
| Duty Cycle (Pieces/month) | 200,000 |
| Feed Stations w/ Sheet Capacity | 2 standard feed station with 500 Sheet Capacity Each and high capacity feed station with 1000 sheet capacity |
| Vertical Stacker Capacity (Filled Envelopes) | 4-foot Output Conveyor |
| Max. sheet Size (H") | 3.63 - 16 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 110V |
| Optional Accessories | High-Capacity Versatile Feeders, Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray Pressure |
| Programmable Fold Applications | Unlimited |
| Programmable Fold Applications | Unlimited |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 8.9 - 13 |
| Envelope Size (H") | 3.9 - 10 |
| Max. sheet Size (W") | 5.75 - 12 |
Product Description:
Features of Formax FD 7202-Special 3F Folder & Inserter

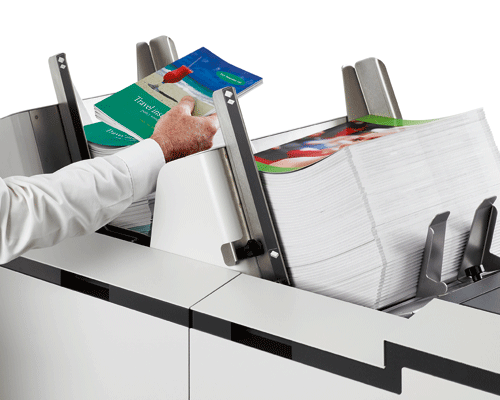

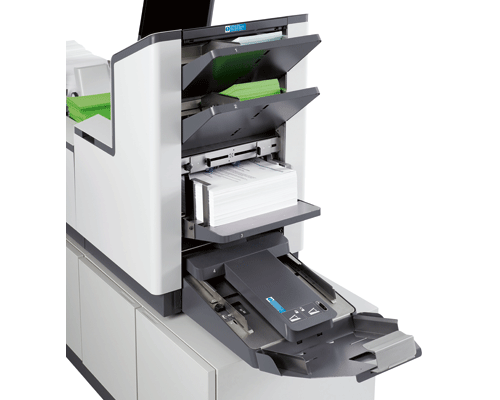

- Featuring two standard 500 sheet flex feeders installed on the top
- One 1000 sheet high capacity flex feeder installed at the bottom
- Flexibility to add from 1 to 7 feed stations as per requirement
- High volume processing capacity of 5000 pieces in an hour and 200,000 in a month

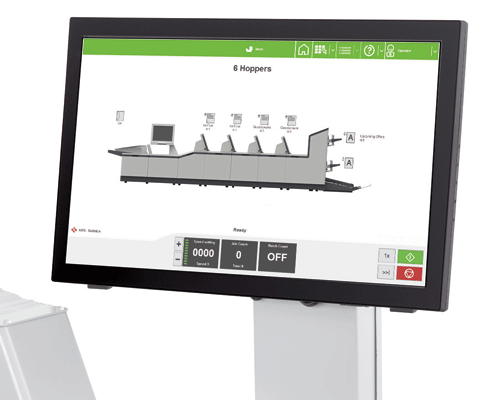

- 22” intuitive user interface control panel for simple and easy utilization
- Unlimited programmable jobs for frequent and instant use
- Supports fold types of C, Z, Half, Double Parallel and no fold
- Feeders can be linked in cascade mode for 2000 continuous sheet processing
- Ergonomically designed cabinet with casters for moveable storage

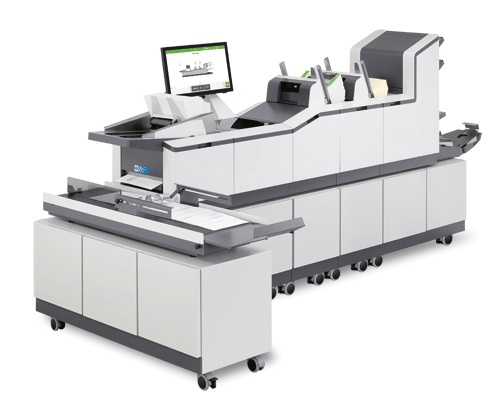

- 4-foot high-capacity output conveyor to hold processed envelopes until retrieved
- Mechanical double document detection to ensure correct insertions
- Flat landscape format envelopes up to 10”x13” are supported
Performance of Formax FD 7202-Special 3F Folder & Inserter
Another outstanding chunk of the FD 7202 series is the Special 3F folder and inserter. This inserter is equipped with two standard feeders and one high capacity feeder. The standard feeders can hold up to 500 sheets each whereas a high capacity can hold up to 1000 sheets. FD 7202 Special 3F is made for large offices as it has the capability of processing up to 500 sheets in an hour and 200,000 pieces in a month. The machine is ready to be used right out of the box because of the automatic job setup document and envelope.
The Special 3F can store unlimited jobs for frequent use. The 22” touchscreen with context-sensitive help makes the operations easy and simple. The inserter supports fold types of C, Z, Half, Double Parallel and no fold and has the capability to fold 8 sheets at once due to its powerful processing unit. Moreover, there are plenty other features included like double document detection to ensure no document is fed twice and ensures security, ergonomically designed cabinet on casters for mobility and high capacity output conveyor.
Recommendation & Warranty
FD 7202 Standard 3F is the game changer for your mailing methods and certainly eliminates any sort of time-consuming methods. For ensuring customer satisfaction the Standard 3F comes with 90-day warranty for parts and labor excluding wearables.
Frequently Asked Questions
Q: What is the difference in the Formax 7200 series and 7202 series?
A: Formax 7202 series is the replacement of the 7200 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: What is the difference between all the models of the 7202 series?
A: The 7202 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model has.
Q: What is a folder unit?
A: The fold unit folds the documents and 7202 series can fold into C,V,Z, double V fold and no fold.
