Formax FD 7202-Special 1F High Volume Modular Inserter
Formax FD 7202-Special 1F High Volume Modular Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 7202-Special 1F High Volume Modular Inserter
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 7202-Special 1F High Volume Modular Inserter |
| Manufacturer | Formax |
| SKU | FD 7202-Special 1F |
| Dimensions (H”xW”xD”) | 36” H x 107” W x 25” D |

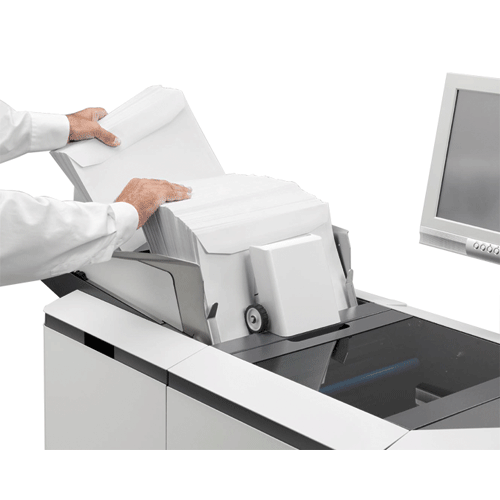

| Envelope Hopper Capacity (Envelopes) | 800 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 5000 |
| Duty Cycle (Pieces/month) | 200,000 |
| Feed Stations w/ Sheet Capacity | 1 High Capacity Feed Station with 1000 sheet capacity |
| Vertical Stacker Capacity (Filled Envelopes) | 4-foot Output Conveyor |
| Max. sheet Size (H") | 3.63 - 16 |
| Warranty | 90 day parts and labor |
| Country of Origin | United States |
| Power Supply (Volts) | 110V |
| Optional Accessories | High-Capacity Versatile Feeders, Envelope Sorter/Diverter, Catch Tray, Sorter Catch Tray Pressure |
| Programmable Fold Applications | Unlimited |
| Programmable Fold Applications | Unlimited |
| Fold Types | C, V, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 8.9 - 13 |
| Envelope Size (H") | 3.9 - 10 |
| Max. sheet Size (W") | 5.75 - 12 |
Product Description:
Features of Formax FD 7202-Special 1F Folder & Inserter

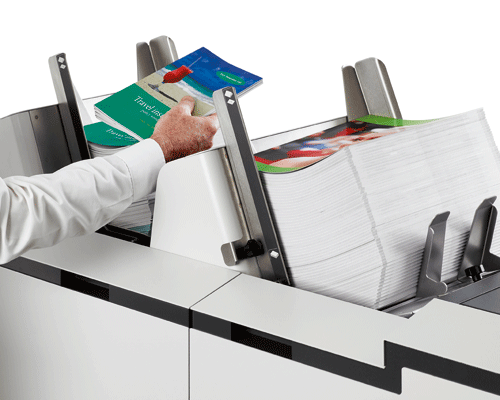

- Special 1F inserter includes one high capacity 1000 sheet flex feeder
- Provides users flexibility to add feed stations from 1 to 11
- Unlimited recurring programmable jobs can be stored for instant use
- Supports flat insertion by feeding landscape format envelopes
- High volume processing speed of 5000 envelopes in an hour
- Powerful capacity to fold up to eight sheets at a time
- Fold types supported are C, Z, Half, Double Parallel and no fold

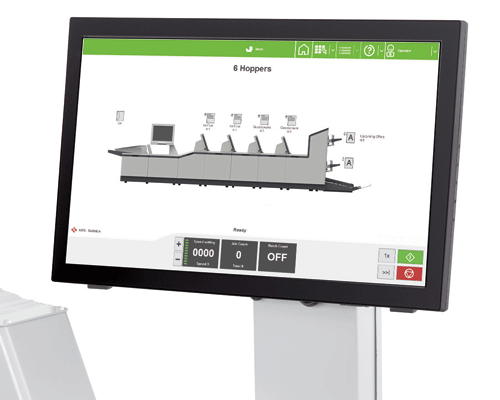

- 22” color touch screen which makes the processing easy and simple
- Mechanical double document detection to ensure correct insertions

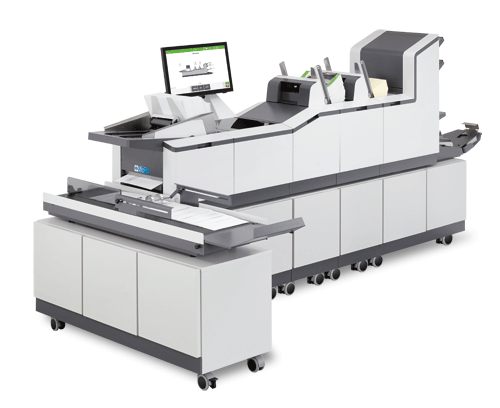

- A four-foot-high capacity output conveyor to hold the finished envelope pieces
- Ergonomically designed cabinets with casters for easier mobility
- Feeders can be linked in cascade mode to process up to 2000 continuous sheets
When it comes to inserters that are reliable, productive and innovative then there is no other option than Formax in the market. Among its various series the FD 7202 is a high-volume inserter series that is designed with advanced technology to change your mailing methods. The 7202 Special 1F is the first model that is equipped with 1 high capacity feeder that holds up to 1000 sheets and has a powerful unit that can process 5000 finished envelopes in just an hour. The duty cycle of 7202 Special 1F is 200,000 finished envelopes per month which results in definite increase of productivity in a workplace.
The Special 1F is equipped with various features that makes it a user-friendly machine. The 22” color touchscreen and indicate users with context sensitive help making it easy to use. The inserter can store unlimited programable jobs for frequent use and supports landscape flat envelope insertion up to 10” x 13”. The 7202 Special 1f supports C, Z, half, double, no folds and can fold up to 8 sheets at a time. The feeders can link in cascade more for continues process and meanwhile document detection ensure no piece is fed twice.
Recommendation & WarrantyThe Special 1F is an ideal inserter to cater your high-volume requirement of inserting jobs. It also comes with custom cabinets with casters for easier mobility in the work place also with a high capacity output conveyor. The machine is backed with 90-day warranty on parts and labor.
Frequently Asked Questions
Q: What is the difference in the Formax 7200 series and 7202 series?
A: Formax 7202 series is the replacement of the 7200 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: What is the difference between all the models of the 7202 series?
A: The 7202 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model has.
Q: What is a folder unit?
A: The fold unit folds the documents and 7202 series can fold into C,V,Z, double V fold and no fold.
