Formax  |  SKU: FD 7200-HCVFi*

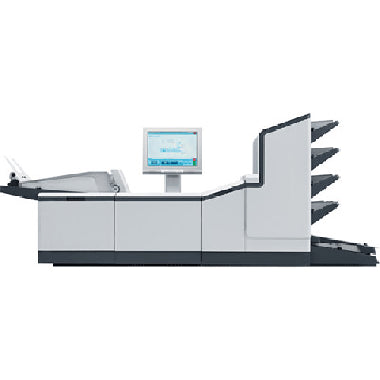

Formax FD 7200-HCVFi High Volume Folder Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 7200-HCVFi High Volume Folder Inserter
Manufacturer Formax
SKU FD 7200-HCVFi*
Dimensions (H”xW”xD”) 36 x 107 x 25 (Tower Feeder w/Inserter Base)
Envelope Hopper Capacity (Envelopes) 800
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,800
Duty Cycle (Pieces/month) 200,000
Feed Stations w/ Sheet Capacity Intelligent High Capacity Versatile Feeder
Max. sheet Size (H") 3.63 - 16
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 110V AC, 60 Hz
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 8.9 - 13
Envelope Size (H") 3.9 - 10
Max. sheet Size (W") 5.75 - 12
Product Description:

  • Formax FD 7200-HCVFi offering convenient paper folding and inserting with a modular unit

  • Possesses a capacity to process up to 4,800 envelopes/hour

  • Reduces the job configuration time with its Automatic Document Measurement feature

  • Helps you quickly achieve the desired results by selecting from the unlimited programmable jobs

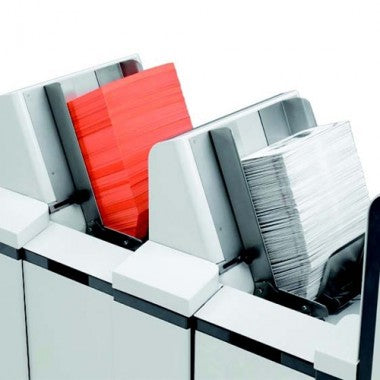

  • Features a sheet feeder accommodating up to 500 sheets at a time

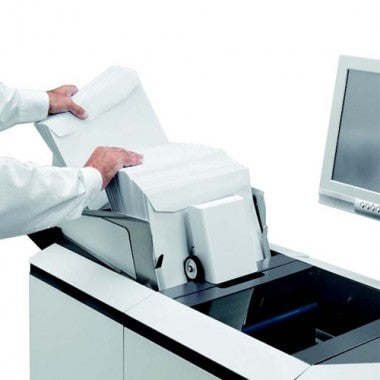

  • Features an envelope feeder with a space for up to 800 #10 or 6" x 9.5" envelopes, up to 500 10" x 13" landscape flats

  • Folds the paper into C, Half, Z, or double parallel orientation

  • Possesses a folding capacity of 8 sheets at a time

  • Allows mail pieces up to 1/4" (6mm) thick to be processed with ease

The Formax FD 7200 HCVFi folder inserter is an advanced folder inserter from Formax that makes these tedious jobs a breeze with its High Capacity Versatile Feeder. Users can enjoy the facility of selective feeding as well with this dynamic feature. This machine can also help you read various codes. This folder inserter folds up to 8 sheets at a time and fills up to 4,800 envelopes/hour. With this machine, users can expect their processing to be uninterrupted due to its bottom feeding system. As a bonus, various codes like Single-Track OMR, Dual-Track OMR, 1D Barcode, and 2D Data Matrix Barcode can be read using this member of the FD 7200 series. The product offers a modular design that accepts up to 10 additional High Capacity Versatile Feeders. So you can always enhance its working capacity as required. It is a warranted product and is bound to give you the most accurately filled mail pieces and folded output you can think of.

Video of Formax FD 7200-HCVFi High Volume Folder Inserter
