Formax  |  SKU: FD 7102XT-Standard2F

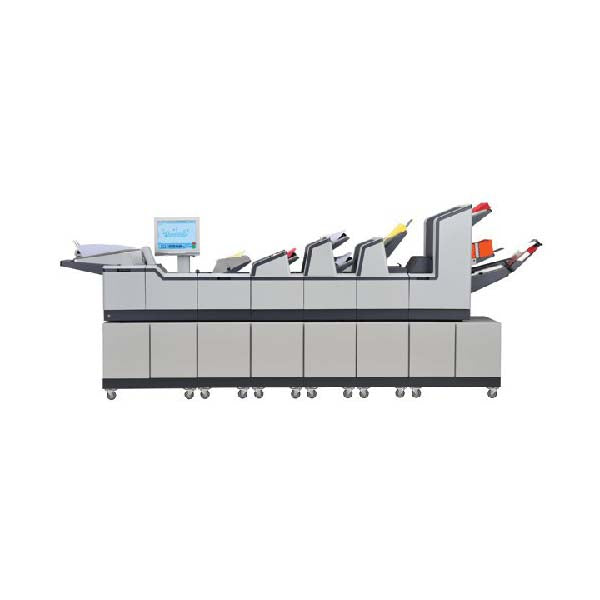

Formax FD 7102XT-Standard 2F High Volume Modular Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 7102XT-Standard 2F High Volume Modular Inserter
Manufacturer Formax
SKU FD 7102XT-Standard2F
Dimensions (H”xW”xD”) 36 x 107 x 25 (Tower Feeder w/Inserter Base)
Envelope Hopper Capacity (Envelopes) 800
Setup Autoset, one-touch setup
Speed (Pieces/hr) 5,500
Duty Cycle (Pieces/month) 180,000
Feed Stations w/ Sheet Capacity 1 Standard Feeder (500 sheet capacity) 1 High Capacity Feeder (1000 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 5.5 - 16
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 110V AC, 60 Hz
Optional Accessories Various Modules (Insert feeders, intelligent feeders, feeder folders, BRE feeder), Envelope Catch Tray, Envelope Output Sorter.
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 3.5 - 6.48
Envelope Size (H") 6 - 10.37
Max. sheet Size (W") 5.5 - 9
Product Description:

  • Formax FD 7102XT-Standard 2F with 1 - 1,000 and 1 - 500 sheet feeders
  • Capable of filling up to 5,500 envelopes in one hour
  • Presents a unique modular design that lets up to 17 feed stations to be appended to the main station
  • Winds up the job quickly by folding 8 sheets at a time conveniently
  • A wide variety of programmable jobs for users’ convenience
  • Has an efficient Envelope Feeder that has the capacity of up to 800 envelopes

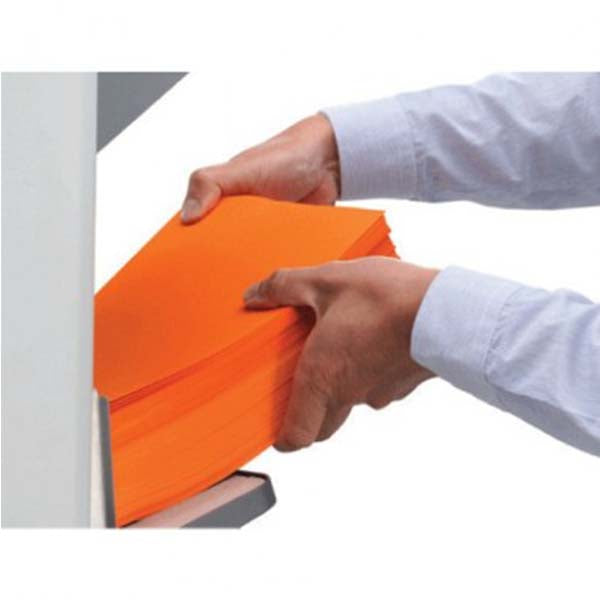

  • Document Feeder allows for up to 1,000 sheets to be accommodated easily
  • Built-in fold types include C, Half, Z, Double Parallel and no fold

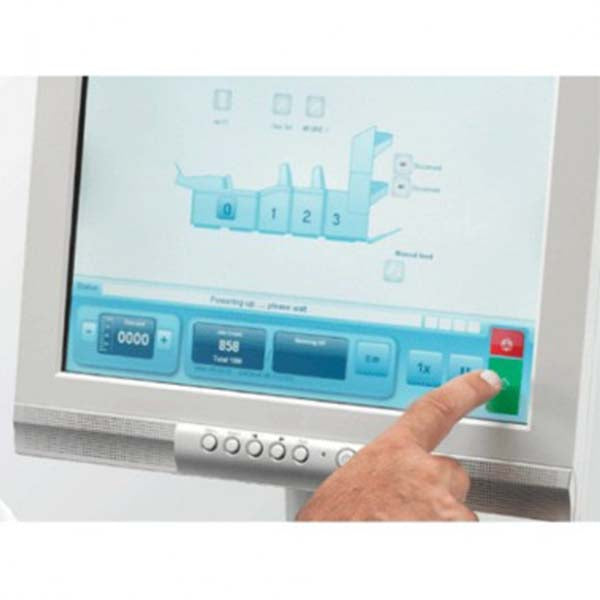

  • Interactive 15" Color touchscreen that makes the folding and inserting job fun and facilitated
  • The pack includes other amenities like Accumulator and Divert Deck along with the ergonomic cabinets with casters

The Formax 7102XT Standard 2F inserter is another exceptional member of the Formax high volume inserter family. Its 1 – 1,000 and 1 – 500 sheet inserter and modular design make it perfect for high volume processing and versatility in the operations. It has a large number of programmable jobs available for the users to choose from instantly for meeting tight deadlines. The great thing about the Formax FD 7102 inserter is that it is highly flexible and provides space for connecting external feeder for code reading and other specialized purposes. With FD 7102XT-Standard 2F come a lot of new and innovative ways that can expedite your work without compromising its quality.

Video of Formax FD 7102XT-Standard 2F High Volume Modular Inserter
