Formax  |  SKU: FD 7102-Standard3

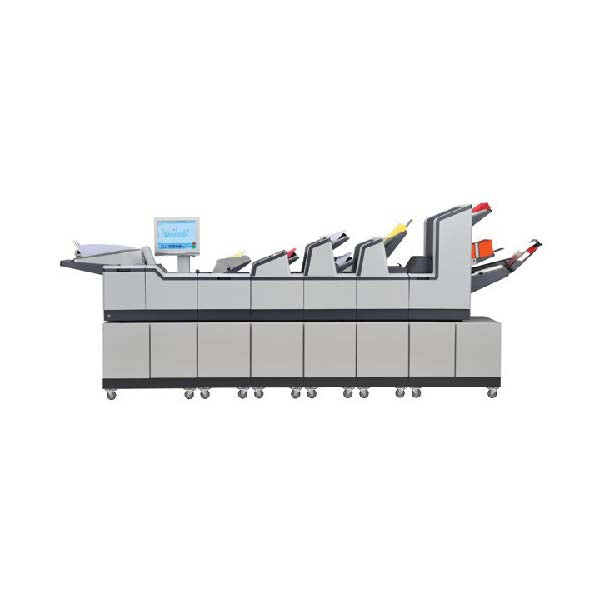

Formax FD 7102-Standard 3 High Volume Modular Inserter

$47,277.23

Brochure View PDF File

Product Specifications
Product Name Formax FD 7102-Standard 3 High Volume Modular Inserter
Manufacturer Formax
SKU FD 7102-Standard3
Dimensions (H”xW”xD”) 36 x 107 x 25 (Tower Feeder w/Inserter Base)
Envelope Hopper Capacity (Envelopes) 400
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,500
Duty Cycle (Pieces/month) 150,000
Feed Stations w/ Sheet Capacity 3 Standard Feeders (500 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 5.5 - 16
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 110V AC, 60 Hz
Optional Accessories Various Modules (Insert feeders, intelligent feeders, feeder folders, BRE feeder), Envelope Catch Tray, Envelope Output Sorter.
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 3.5 - 6.48
Envelope Size (H") 6 - 10.37
Max. sheet Size (W") 5.5 - 9
Product Description:

  • Formax FD 7102-Standard 3 with a modular design capacitating from 3 - 500 sheet feeders

  • Capable of processing up to 4,500 envelopes per hour

  • Uniquely smart design lets up to 9 feed stations to be attached to the main unit

  • Vast memory that can store unlimited programmable jobs

  • Has a folding capacity for up to 8 sheets at a time

  • Features a wide Envelope Feeder with capacity for up to 400 envelopes

  • Features a spacious Document Feeder with capacity for up to 500 sheets

  • Applies fold types like C, Half, Z and Double Parallel as well as no fold

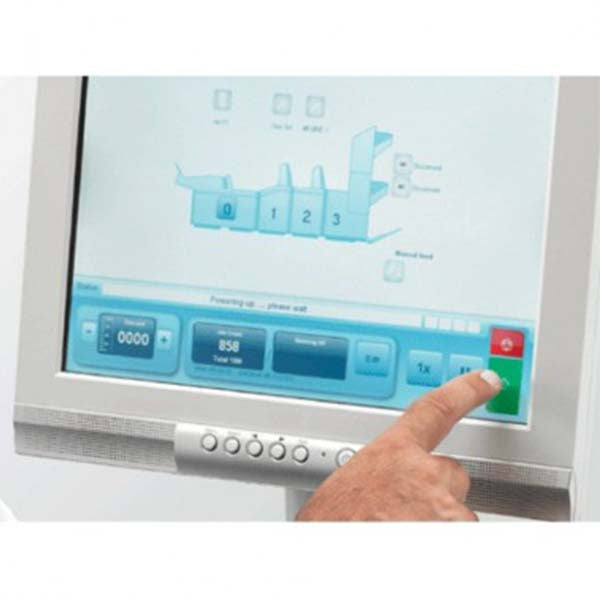

  • 15" Color touchscreen control panel with user-friendly interface

  • Accumulator and Divert Deck available

  • Ergonomic cabinets with casters available


The Formax FD 7102-Standard 3 presents a modular design that is adaptable to the specific needs of the users. It can easily process up to 4,500 envelopes in one hour. It provides space for about 9 additional feeders to be attached. The Formax FD 7102 inserter comes with a 15” wide colored touchscreen control panel where users can make configurations according to their requirements. A special High-Capacity 4-foot Output Conveyor can be set at two different angles and helps direct the output to its destination. This Formax high volume inserter features Accumulator and Divert deck along with ergonomic custom cabinets with casters for making the setup easily moveable and spacious for increased storage. Users’ convenience is treated with utmost priority with the capability of this machine to save unlimited recurring jobs for future use.

Video of Formax FD 7102-Standard 3 High Volume Modular Inserter
