Formax  |  SKU: FD 7102-Standard2F

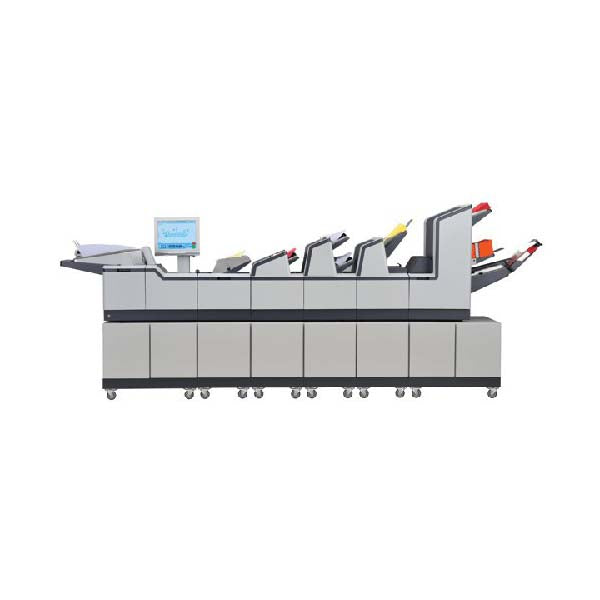

Formax FD 7102-Standard 2F High Volume Modular Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 7102-Standard 2F High Volume Modular Inserter
Manufacturer Formax
SKU FD 7102-Standard2F
Dimensions (H”xW”xD”) 36 x 107 x 25 (Tower Feeder w/Inserter Base)
Envelope Hopper Capacity (Envelopes) 400
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,500
Duty Cycle (Pieces/month) 150,000
Feed Stations w/ Sheet Capacity 1 Standard Feeder (500 sheet capacity) 1 High Capacity Feeder (1000 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 5.5 - 16
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 110V AC, 60 Hz
Optional Accessories Various Modules (Insert feeders, intelligent feeders, feeder folders, BRE feeder), Envelope Catch Tray, Envelope Output Sorter.
Programmable Fold Applications Unlimited
Programmable Fold Applications Unlimited
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 3.5 - 6.48
Envelope Size (H") 6 - 10.37
Max. sheet Size (W") 5.5 - 9
Product Description:

  • Formax FD 7102-Standard 2F High Volume Inserter with 1 - 1,000 and 1 - 500 sheet feeders
  • Fills the envelopes at the speed of 4,500 envelopes per hour
  • Presents a modular design that enables 9 feed stations to be added to the main station
  • Has a folding capacity of up to 8 sheets in one go
  • A wide variety of programmable jobs for convenience of users
  • Has an Envelope Feeder Capacity of up to 400 envelopes
  • Has a Document Feeder Capacity of up to 500 sheets

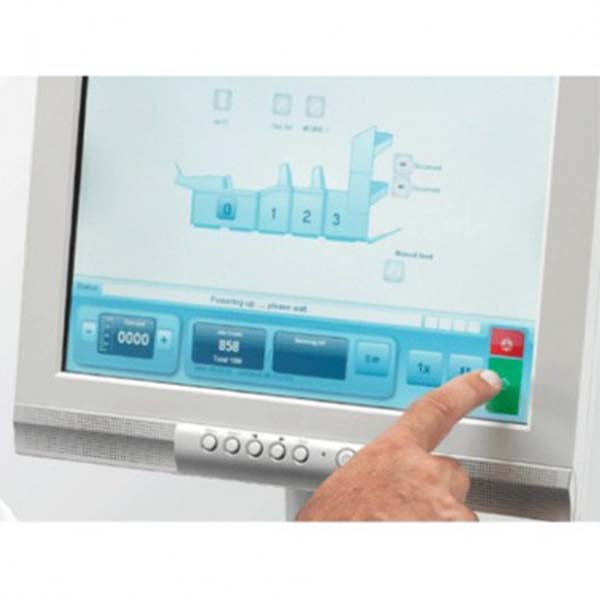

  • Interactive 15" Color touchscreen interface for making the operations interesting
  • C, Half, Z, Double Parallel and no fold available to be applied to the sheets
  • Accumulator and Divert Deck for smoother and seamless operations

The Formax FD 7102-Standard 2F High Volume Inserter presents a unique and user-friendly way of folding sheets and filling the envelopes with speed and accuracy. It is an ideal solution for dealing with huge stacks of mail pieces covering the desks. Formax FD 7102-Standard 2F has a vibrant 15” color touchscreen interface with which the users can execute different jobs in a repeating manner with a single touch. This Formax high volume inserter is designed in a modular way that lets it have up to 9 feed stations for quicker results. It has special electromechanical Double Document detectors that ensure each envelope has the right number of sheets placed inside it. The Formax FD 7102 inserter comes with a processing capacity of up to 4,500 envelopes per hour and folding capacity of up to 8 sheets in one go. It has plenty of great features that make FD 7102-Standard 2F an absolute knock-out product to have on board!

Video of Formax FD 7102-Standard 2F High Volume Modular Inserter
