Formax  |  SKU: FD 6608-Standard 4

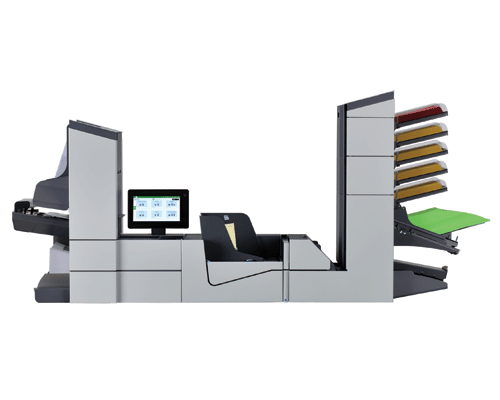

Formax FD 6608 Standard 4 Folder & Inserter

$50,695.00 $63,368.75
4 Standard Feed Stations, Process 80,000 Pieces/month, Total Feed Capacity of 1,300 sheets

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6608 Standard 4 Folder & Inserter
Manufacturer Formax
Model FD 6608-Standard 4
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4300
Duty Cycle (Pieces/month) 80,000
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H"") 3.5” - 14” L x 5.1” - 9” W
Envelope Size 6.3” - 9.7” L x 3.5” - 6.3” W
Power Supply (Volts) 100 Volts
Programmable Fold Applications 50
Fold Types C, Half, Z, Double Parallel, no fold
Double Feed Detection Yes
Feed Stations w/ Sheet Capacity 4 standard feed stations with 325 sheet capacity each
Optional Accessories Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers
Dimensions (H”xW”xD”) 31” H x 60” W x 18” D
Weight 242 lbs
Product Description:

Features of the Formax FD 6608 Standard 4 Folder Inserter
  • Four-station configuration with four fully automatic standard feeders
  • Each feeder holds up to 325 sheets to support steady mid-volume production
  • Processes up to 4,300 finished envelopes per hour with a monthly duty cycle of 80,000 pieces

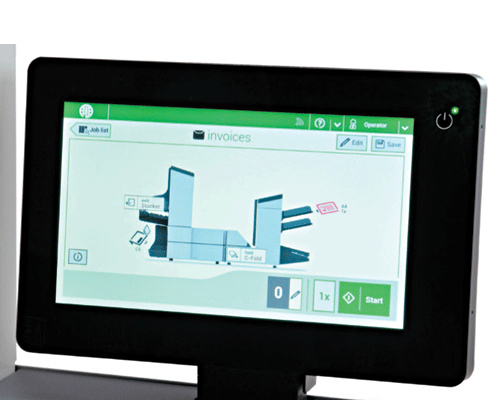

  • 10 inch color touchscreen with graphical interface and paper and envelope presence indicators
  • AutoSet technology automatically adjusts paper length, thickness, fold type, and envelope size
  • Stores up to 50 programmable jobs for quick recall of recurring applications
  • Electromechanical double document detection ensures accurate insertion and document integrity
  • High-capacity vertical output stacker holds up to 500 finished envelopes in correct order
Performance of the Formax FD 6608 Standard 4 Folder Inserter

The Formax FD 6608 Standard 4 Folder Inserter is designed for mid-volume mailing environments that require dependable automation and efficient document handling. Capable of producing up to 4,300 envelopes per hour, it combines folding and inserting into a single continuous workflow that reduces manual handling and improves turnaround time. The four standard feeders allow multi-page document sets to be collated accurately before insertion, making it well suited for transactional and business mail. Cascade mode supports continuous operation by allowing feeders to be replenished without interrupting production.

The Formax FD 6608 Standard 4 Folder Inserter is equipped with an intuitive touchscreen interface that simplifies setup and job changes. AutoSet functionality minimizes operator involvement by automatically configuring key job parameters when documents and envelopes are loaded. Finished envelopes are delivered neatly to the vertical output stacker, supporting efficient downstream handling. Energy-saving eco mode and advanced document detection contribute to reliable, user-friendly performance in busy office and mailroom environments.

Recommendation & Warranty

The FD 6608 Standard 4 mid volume inserter makes workplace mailing operations the easiest task on the list. The machine is backed with 90-day warranty on parts and labor to ensure customer satisfaction as it never fails to provide inserting and folding jobs with ease and efficiency.

Frequently Asked Questions

Q: What is the difference in the Formax 6606 series and 6608 series?

A: Formax 6608 series is the replacement of the 6606 series and has a new design and a 22” touch screen control panel.

Q: For how long am I entitled to warranty?

A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.

Q: How many jobs can my 6608 series can save?

A: The 6608 series can save up to 50 programmable jobs for frequent use.

Q: What is the difference between all the models of the 6608 series?

A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.

Video of Formax FD 6608 Standard 4 Folder & Inserter
