Formax  |  SKU: FD 6608-Standard 3F

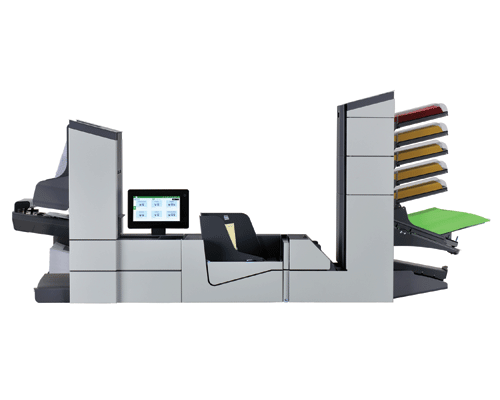

Formax FD 6608 Standard 3F Folder & Inserter

$46,095.00 $53,009.25
2 Standard - 1 High Capacity Station, Process 80,000 Pieces/month, Total Feed Capacity of 1,375 sheets

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6608 Standard 3F Folder & Inserter
Manufacturer Formax
SKU FD 6608-Standard 3F
Dimensions (H”xW”xD”) 31” H x 60” W x 18” D
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 2 standard station with 325 sheet capacity each and one high capacity standard feeder with 725 sheet capacity
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 100 Volts

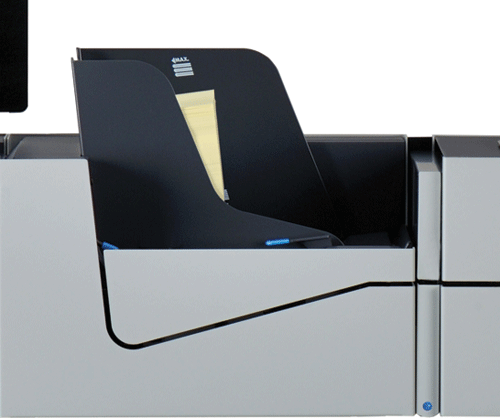

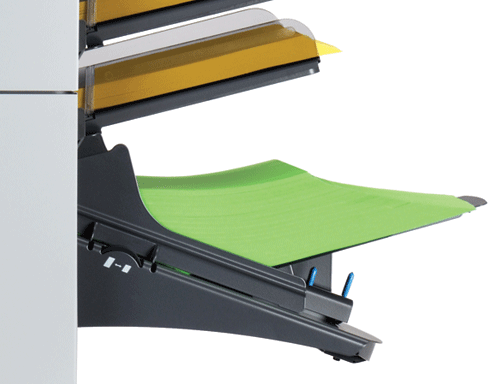

Optional Accessories Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

Features of Formax FD 6608 Standard 3F Folder & Inserter
  • Includes three stations including 1 High Capacity Standard Feeder and 2 Standard Feeders
  • This strong inserter can process 4300 envelopes in an hour

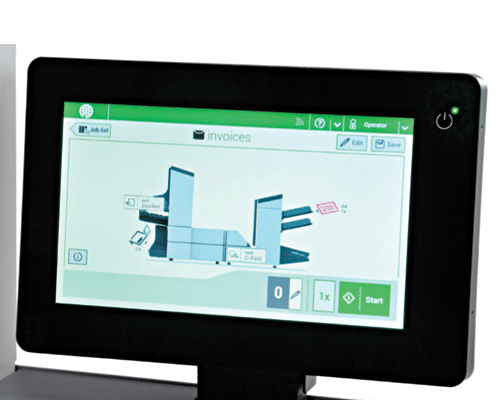

  • 10” color touch screen with graphic symbols for simple and easy utilization
  • AutoSetTM automatically sets the paper thickness, paper length, fold type and envelope size
  • Double document detection to ensure no repetition of document is fed
  • High capacity vertical output stacker holds up to 500 processed envelopes
  • Capability to fold 10 sheets in half fold or up to 8 sheets in tri-fold at once.
  • Eco mode is enabled when the machine is inactive for an hour
  • Each feeder can hold up to 325 sheets and can be linked in cascade mode
  • Supported fold types C, Half, Z, Double Parallel and no fold
Performance of Formax FD 6608 Standard 3F Folder & Inserter

The Formax FD 6608 Standard 3F has its own configurations of 3 stations that include 1 high capacity feeder and 2 standard feeders. The Formax 6608 series has the amazing processing capacity of 4300 pieces in just an hour and possess the monthly duty cycle of 80000 pieces with ease and accuracy. The Standard 3F feeders can be linked in cascade mode that assists users to move around as it provides continuous operations. Standard feeders have the capacity to hold 325 sheets whereas the high capacity feeder can hold 725 sheets. The high capacity vertical output stacker can hold up to 500 processed envelopes until retrieved.

The folds supported by the Standard 3F are C, Half, Z, Double Parallel and no fold and has the amazing capability of folding 10 sheets in to half fold and 8 sheets in to tri fold at once. The 6608 series inserters are equipped with AutoSetTM that automatically sets the paper length, paper thickness, fold type, and envelope size making the user operations easy. The Standard 3F inserter can also store 50 programmable jobs for instant use. The eco-friendly device sleeps after one hour of inactivity which saves energy and also preserves the life of the machine.

Recommendation & Warranty

The 6608 Standard 3F has the power to process many applications and offers reliability of larger machines to small business. The variety of features makes it an ideal for any size of office or workplace environment. To ensure customer satisfaction this compact machine comes with a 90-day warranty of parts and labor.

Frequently Asked Questions

Q: What is the difference in the Formax 6606 series and 6608 series?

A: Formax 6608 series is the replace of the 6606 series and has a new design and a 22” touch screen control panel.

Q: For how long am I entitled to warranty?

A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.

Q: How many jobs can my 6608 series can save?

A: The 6608 series can save up to 50 programmable jobs for frequent use.

Q: What is the difference between all the models of the 6608 series?

A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
