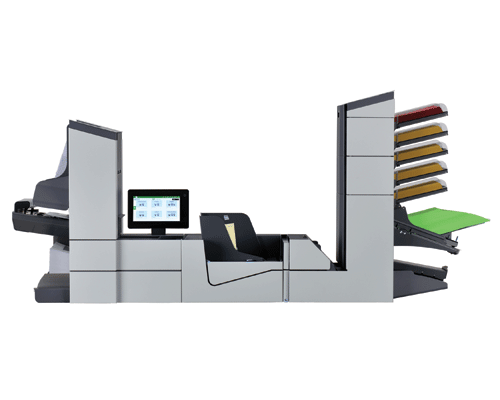

Formax FD 6608 Special 2 Folder & Inserter
Formax FD 6608 Special 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6608 Special 2 Folder & Inserter
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 6608 Special 2 Folder & Inserter |
| Manufacturer | Formax |
| Model | FD 6608-Special 2 |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H"") | 3.5” - 14” L x 5.1” - 9” W |
| Envelope Size | 6.3” - 9.7” L x 3.5” - 6.3” W |
| Power Supply (Volts) | 100 Volts |
| Programmable Fold Applications | 50 |
| Fold Types | C, Half, Z, Double Parallel, no fold |
| Double Feed Detection | Yes |
| Feed Stations w/ Sheet Capacity | 1 standard station and 1 special station with 325 sheet capacity each |

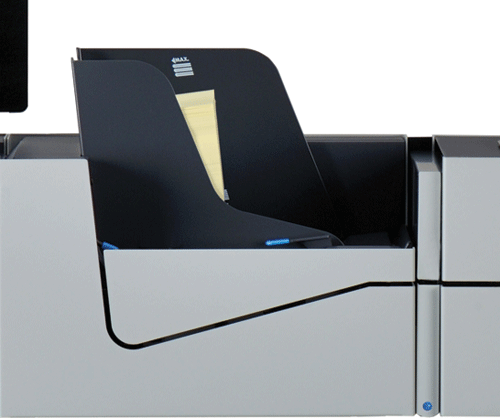

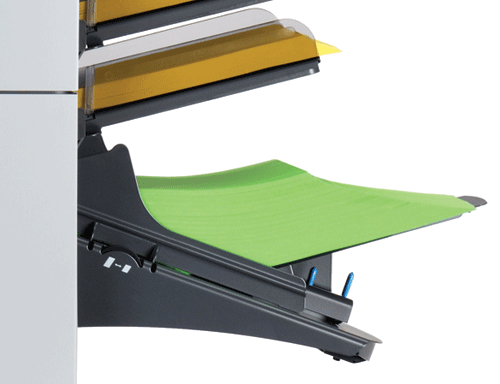

| Optional Accessories | Short Feed Trays, Production Feeder, CIS Scanner, Thin Booklet Feeder, Side Exit Tray, OMR, BCR & OCR ,Short Feed Trays, Custom Cabinets and 402 Series Joggers |
| Dimensions (H”xW”xD”) | 31” H x 60” W x 18” D |
| Weight | 242 lbs |
Product Description:
Features of the Formax FD 6608 Special 2 Folder Inserter
- Two-station configuration with one special feeder and one standard feeder
- Each feeder holds up to 325 sheets and supports cascade mode for continuous operation
- Processes up to 4,300 finished envelopes per hour with a monthly duty cycle of 80,000 pieces

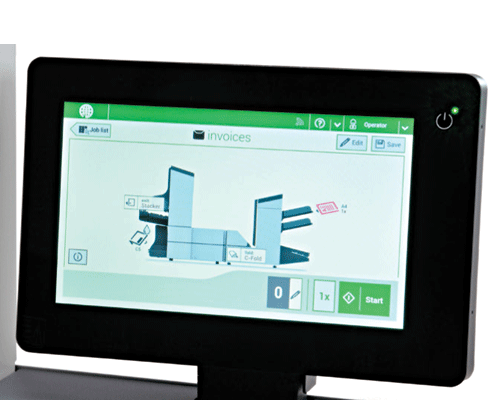

- 10 inch color touchscreen with graphical interface and paper and envelope presence indicators
- AutoSet technology automatically adjusts paper length, thickness, fold type, and envelope size
- Stores up to 50 programmable jobs for quick recall of recurring applications
- Electromechanical double document detection ensures accurate insertion and document integrity

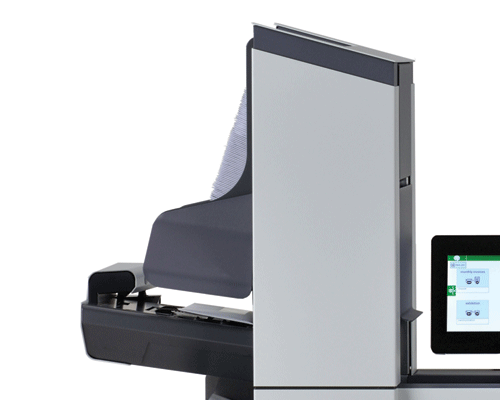

- High-capacity vertical output stacker holds up to 500 finished envelopes
The Formax FD 6608 Special 2 Folder Inserter is designed for mid-volume mailing operations that require reliable automation in a compact two-station configuration. Capable of producing up to 4,300 envelopes per hour, it combines folding and inserting into a single streamlined process that reduces manual labor and improves turnaround time. The combination of a standard feeder and a special feeder allows flexible handling of varied document sets, while cascade capability supports uninterrupted production during longer runs.
The Formax FD 6608 Special 2 Folder Inserter is equipped with an intuitive touchscreen interface that simplifies setup and daily operation. AutoSet functionality minimizes operator involvement by automatically configuring key job parameters, while manual adjustment on the special feeder supports unique applications when required. Finished envelopes are delivered neatly to the vertical output stacker, supporting efficient downstream handling. Energy-saving eco mode and advanced document detection contribute to dependable, user-friendly performance in busy office and mailroom environments.
Recommendation & WarrantyThe FD 6608 series is backed with 90-day parts and labor excluding wearables to ensure customer satisfaction. Workplaces that require folding and inserting together and want to eliminate manual work then FD 6608 Inserter is the top-notch inserter they need to boost their productivity.
Frequently Asked Questions
Q: What is the difference in the Formax 6606 series and 6608 series?
A: Formax 6608 series is the replacement of the 6606 series and has a new design and a 22” touch screen control panel.
Q: For how long am I entitled to warranty?
A: The Formax 6608 series comes with a 90-day warranty on parts excluding wearables and labor.
Q: What is a job?
A: If there is a certain type of mail set that reoccurs a lot then you can save it as a job for instant use.
Q: How many jobs can my 6608 series can save?
A: The 6608 series can save up to 50 programmable jobs for frequent use.
Q: What is the difference between all the models of the 6608 series?
A: The 6608 series model are designed with the same engine and features the only difference it has is the number and type of feed stations each model have.
