Formax  |  SKU: FD 6606-Standard5F

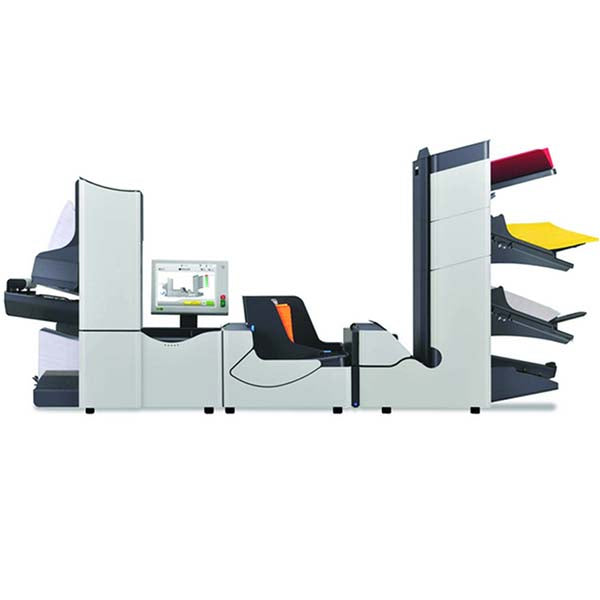

Formax FD 6606-Standard 5F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6606-Standard 5F Folder & Inserter
Manufacturer Formax
SKU FD 6606-Standard5F
Dimensions (H”xW”xD”) 36 x 63 x 18 (6 Stations)
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 100V AC, 50/60 Hz

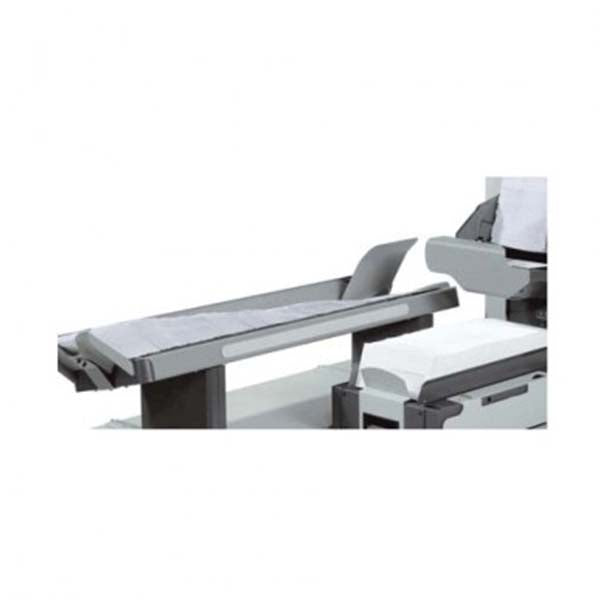

Optional Accessories Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 5.5 - 9.8
Envelope Size (H") 3.5 - 6.4
Max. sheet Size (W") 5 - 9
Product Description:

  • Formax FD 6606-Standard 5F presenting 4 standard and 1 highest capacity feeders
  • Works at a processing rate of about 4,300 pieces/hour
  • Up to 50 predefined settings for facilitating users
  • Top-loading holder designed to accommodate up to 500 envelopes

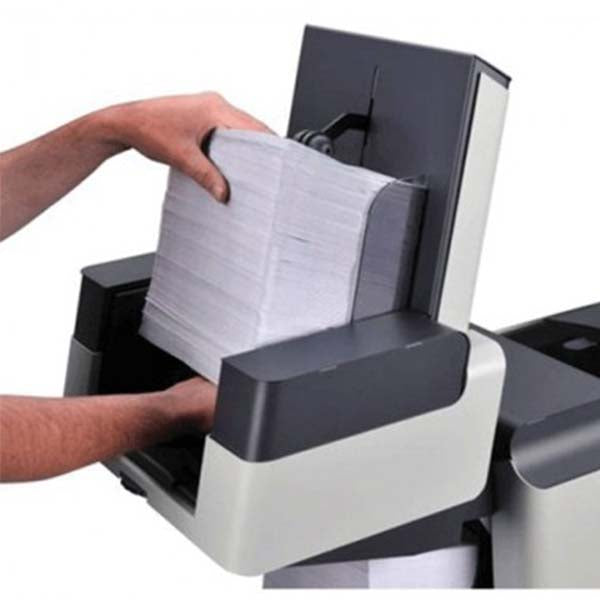

  • High capacity feeder wide enough to house up to 725 sheets

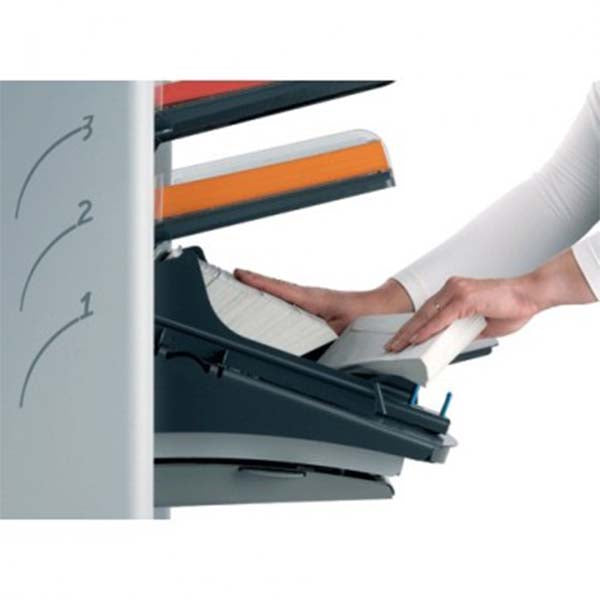

  • Vertical stacker for storing up to 500 professionally finished envelopes in an organized fashion
  • Barcode and Optical Mark Recognition capabilities
  • Setup made easy with the one-touch adjustments
  • Energy saving mode enabled for increasing the life span of the product

The Formax FD 6606-Standard 5F is the product for taking care of the tedious jobs of folding and filling envelopes with speed and efficiency. With a processing speed of up to 4,300 pieces in an hour, this amazing machine will astonish the users with its productivity. Its performance is boosted by its 4 standard and 1 highest capacity feeders, all of which are designed with users’ convenience in mind. Each of these feeders can easily take in about 325 sheets.

This product is aimed at making folding and inserting tasks effortless at all levels. It also features special detectors for paper size, thickness, and color that allow easy monitoring and evaluation. Its 10.4” wide color touch screen control panel makes every setting accessible and understandable. Users can save up to 50 programmable jobs into Formax automatic inserter’s memory for applying customized settings. The Formax FD 6606 inserter has in it the special cascade mode that ensures continuous functionality.

Video of Formax FD 6606-Standard 5F Folder & Inserter
