Save 10% Off Your First Purchase!

Formax  |  SKU: FD 6606-Standard4

Formax FD 6606-Standard 4 Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6606-Standard 4 Folder & Inserter
Manufacturer Formax
SKU FD 6606-Standard4
Dimensions (H”xW”xD”) 36 x 63 x 18 (6 Stations)
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 100V AC, 50/60 Hz

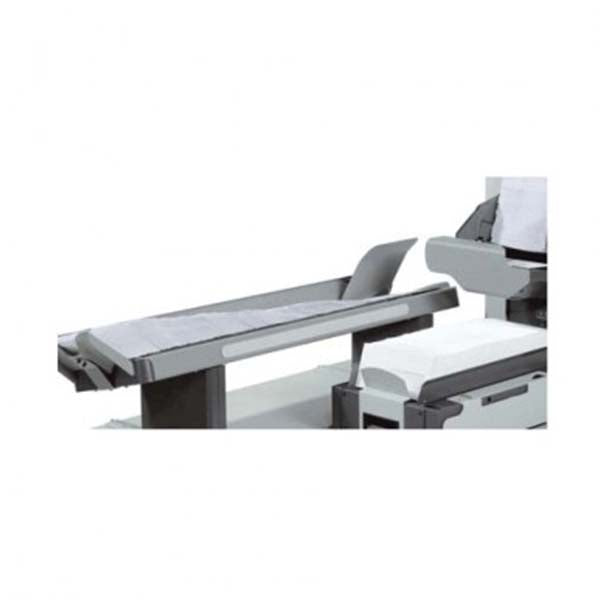

Optional Accessories Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 5.5 - 9.8
Envelope Size (H") 3.5 - 6.4
Max. sheet Size (W") 5 - 9
Product Description:

  • Formax FD 6606-Standard 4 Automatic Inserter introduces modular design that can accommodate up to 7 feed stations for increased productivity

  • 10.4” full-color touchscreen control panel and graphical interface for keeping the users engaged

  • Speedy processing of up to 4,300 envelopes in one hour

  • Automatic paper and envelope Presence Sensors showing their indications on the control panel

  • Fold types applicable include C, Half, Z, Double Parallel and no fold

  • AutoSet technology allows convenient setup in lesser time

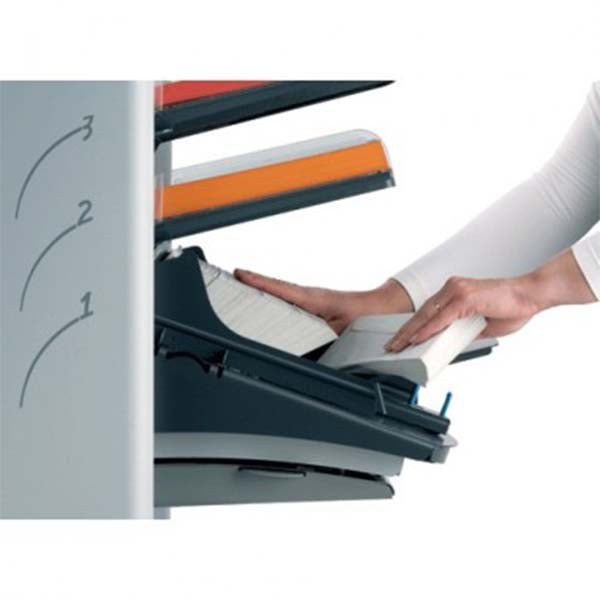

  • Vertical output stacker comes with reverse stacking mechanism to accommodate up to 500 envelopes

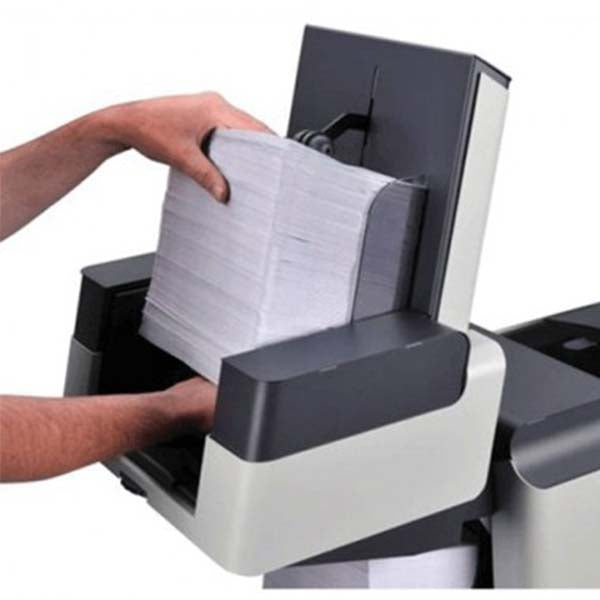

  • Decently-sized top-loading envelope hopper facilitates uninterrupted operation while keeping 500 envelopes aside

  • Security ensured with two double-document detectors

  • Automatic standby mode for increasing longevity of the FD 6606-Standard 4 unit

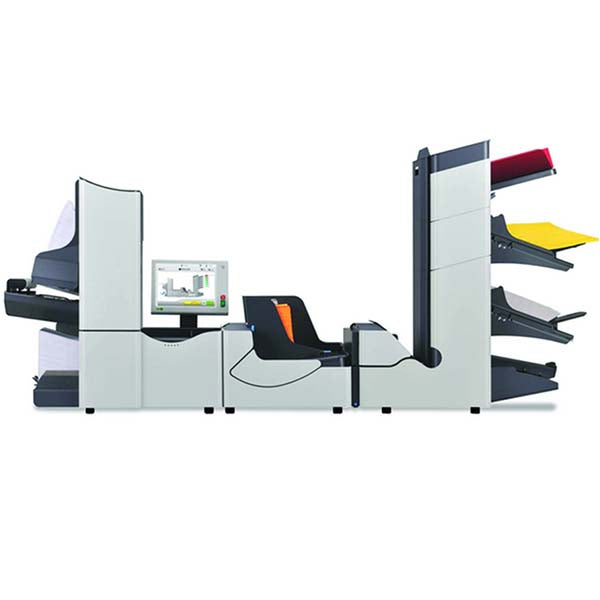

The Formax FD 6606-Standard 4 Automatic Inserter and Folder is an intelligent folding and inserting machine with which folding and inserting documents into envelopes become easier than ever. It features a number of components and specs that ensure the input is precisely converted to output. Its control panel is touch-based and interface is graphical that together make the operations fun and interesting.

Video of Formax FD 6606-Standard 4 Folder & Inserter
