Formax  |  SKU: FD 6606-Standard3F

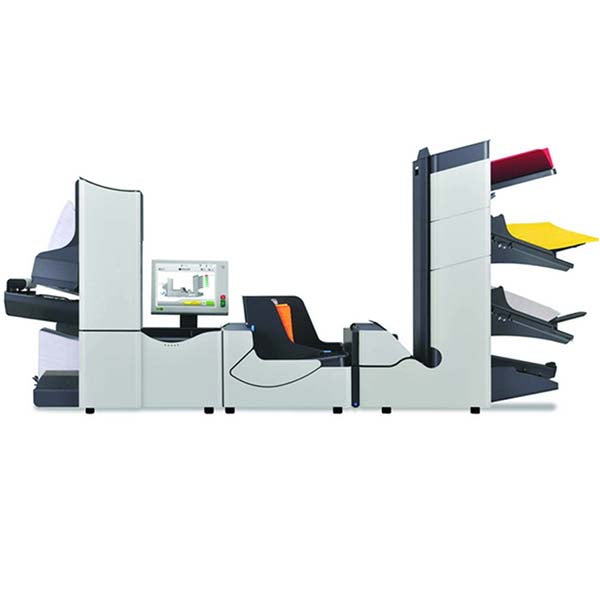

Formax FD 6606-Standard 3F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6606-Standard 3F Folder & Inserter
Manufacturer Formax
SKU FD 6606-Standard3F
Dimensions (H”xW”xD”) 36 x 63 x 18 (6 Stations)
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 2 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 100V AC, 50/60 Hz
Optional Accessories Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 5.5 - 9.8
Envelope Size (H") 3.5 - 6.4
Max. sheet Size (W") 5 - 9
Product Description:

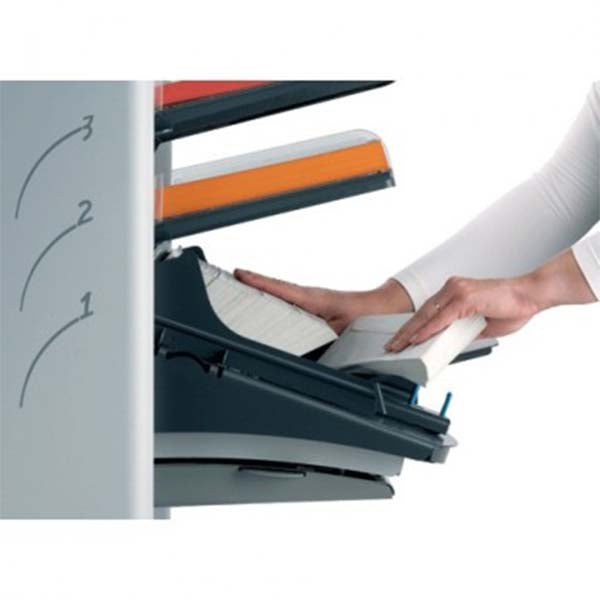

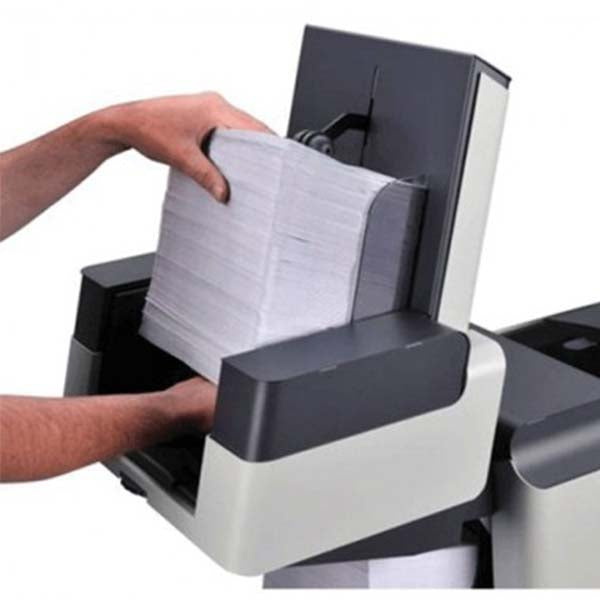

  • Formax FD 6606-Standard 3F with three unique stations, 1 high-capacity document feeder and 2 standard feeders

  • Its unique modular layout provides space for up to 7 feed stations

  • Operations are facilitated with 10.4” full-color touchscreen control panel

  • Easily applies its functionality to up to 4,300 envelopes per hour with great speed with 50 programmable jobs to choose from

  • Setup expedited with AutoSet technology

  • Automatic Presence Sensors that present graphics to alert the operator regarding the envelopes or documents present inside the machine

  • Flexible diverter for delivering error-free results

  • Fold types available are C, Half, Z, Double Parallel and no fold

  • Stands by automatically when not in use

  • Easily handles envelopes up to 6.4” H x 9.8” W

  • Daily Mail mode for processing stapled sets with same consistency

The Formax FD 6606 inserter/folder is an adaptable new way for facilitating the inserting and folding jobs. Its design allows the machine to bring in additional functionality of up to 7 stations for delivering accurate results faster. It also presents configurations that make input entry and output exit a breeze.

The FD 6606-Standard 3F flaunts a wide reversible full-color touchscreen control panel where users can control all machine functions with few touches. There are various intelligent features in this Formax automatic inserter like automatic paper and envelope presence sensors with special indicators on the control panel, a vertical output stacker holding about 500 filled envelopes, a top-loading envelope hopper storing up to 500 envelopes and automatic stand-by mode that is activated after 1 hour of inactivity.
