Formax  |  SKU: FD 6606-Special6

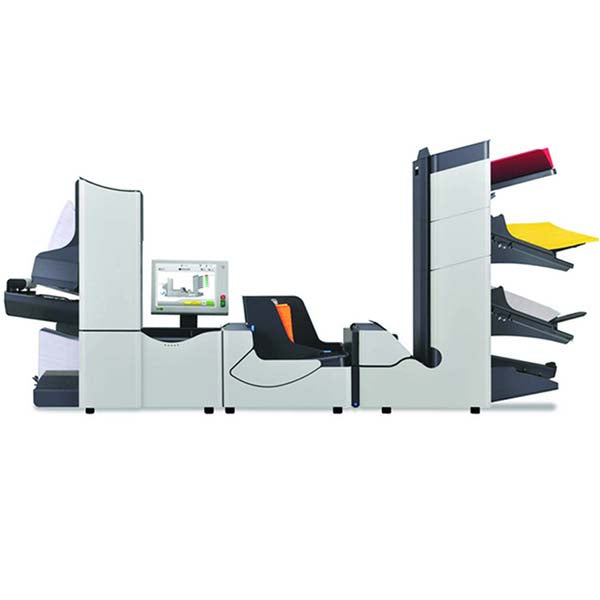

Formax FD 6606-Special 6 Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6606-Special 6 Folder & Inserter
Manufacturer Formax
SKU FD 6606-Special6
Dimensions (H”xW”xD”) 36 x 63 x 18 (6 Stations)
Envelope Hopper Capacity (Envelopes) 500
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,300
Duty Cycle (Pieces/month) 80,000
Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity) 2 Special Feeders (325 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 100V AC, 50/60 Hz
Optional Accessories Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 5.5 - 9.8
Envelope Size (H") 3.5 - 6.4
Max. sheet Size (W") 5 - 9
Product Description:

  • Formax FD 6606-Special 6 presenting 6 stations with standard feeders for top class insertion and folding
  • Capable of folding/inserting up to 4,300 pieces an hour
  • Top-loading hopper giving room for up to 500 envelopes
  • Wide document feeder capable of storing up to 725 sheets
  • Up to 500 filled envelopes are neatly organized in the vertical output stacker
  • Facility of Barcode Recognition, Optical Mark Recognition and Optical Character Recognition available
  • 10.4" wide touchscreen control panel with vibrant interface
  • 50 programmable jobs for ensuring convenience
  • AutoSet one-touch setup technology for facilitating process at all levels
  • Automatic standby mode for effective energy conservation

The Formax FD 6606 inserter presents a new innovation from Formax that is meant to facilitate you further with easier folding and inserting tasks. With this machine, users can get large heaps of mail pieces folded or inserted as required in no time. Along with the basic specs, this Formax automatic inserter possesses 4 standard feeders with a 325-sheet capacity and 2 special feeders dealing with different types of paper in particular. It also processes about 4,300 pieces an hour effortlessly.

The AutoSet technology is also available for instant, hassle-free setup. Presence sensors are smart enough to adjust the settings automatically according to the document dimensions. With FD 6606-Special 6, functions of folding, collating, and sealing can be availed with a minor touch on the control panel screen, and multiple sheets will get done without any need to wait for hours.

Video of Formax FD 6606-Special 6 Folder & Inserter
