Formax FD 6606-Special 2 Folder & Inserter
Formax FD 6606-Special 2 Folder & Inserter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 6606-Special 2 Folder & Inserter
Brochure View PDF File
Product Specifications
| Product Name | Formax FD 6606-Special 2 Folder & Inserter |
| Manufacturer | Formax |
| SKU | FD 6606-Special2 |
| Dimensions (H”xW”xD”) | 36 x 63 x 18 (6 Stations) |
| Envelope Hopper Capacity (Envelopes) | 500 |
| Setup | Autoset, one-touch setup |
| Speed (Pieces/hr) | 4,300 |
| Duty Cycle (Pieces/month) | 80,000 |
| Feed Stations w/ Sheet Capacity | 1 Standard Feeder (325 sheet capacity) 1 Special Feeder (325 sheet capacity) |
| Vertical Stacker Capacity (Filled Envelopes) | 500 |
| Max. sheet Size (H") | 3.5 - 14 |
| Warranty | 90 day limited warranty |
| Country of Origin | United States |
| Power Supply (Volts) | 100V AC, 50/60 Hz |

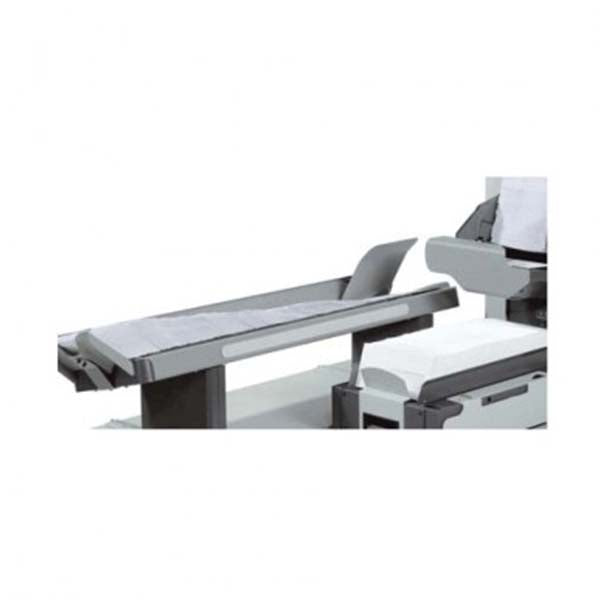

| Optional Accessories | Thin booklet feeder (135 Inserts), High capacity output conveyor, Envelope hopper (1,000) envelopes, Side exit Tray, Cabinet, 402 Series Jogger |
| Programmable Fold Applications | 50 |
| Programmable Fold Applications | 41 - 60 |
| Fold Types | C, Half, Z, Double Parallel, No fold |
| Double Feed Detection | Yes |
| Envelope Size (W") | 5.5 - 9.8 |
| Envelope Size (H") | 3.5 - 6.4 |
| Max. sheet Size (W") | 5 - 9 |
Product Description:
- Formax FD 6606-Special 2 presenting 2 separate stations; 1 special and 1 standard feeder
- Up to 4,300 pieces an hour is the processing rate of this product
- User-friendly configuration process enabled by the 10.4" full-color touchscreen control panel
- Widely accommodating top-loading hopper with space for up to 500 envelopes

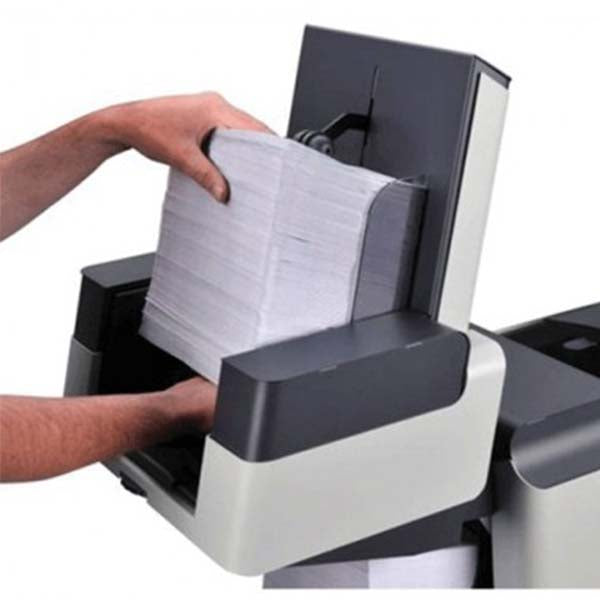

- Spacious document feeder offering accommodation for up to 725 sheets

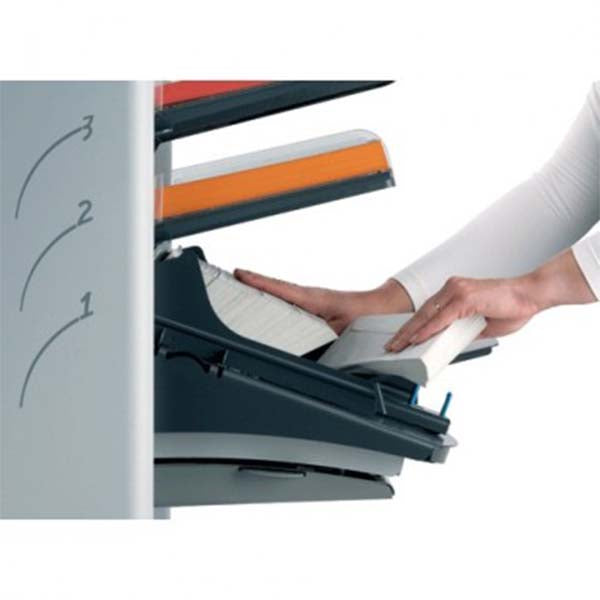

- Amazing vertical output stacker that neatly arranges up to 500 filled envelopes
- Optical Mark and Character Recognition along with Barcode Recognition feature available
- Efficiency increased with the memory for up to 50 programmable jobs
- Quick and easy adjustments done automatically with the AutoSet one-touch facility
- Energy-saving standby mode conserves energy by shutting the machine off when not in use

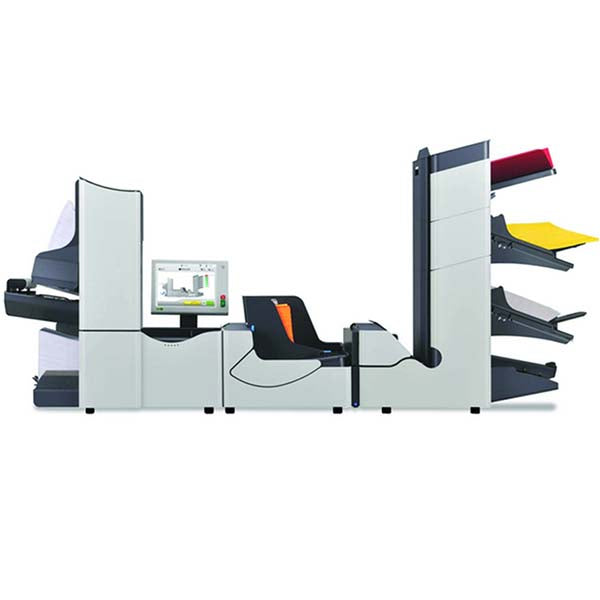

The Formax FD 6606-Special 2 Automatic Inserter presents a bigger and better version of the basic Formax folder and inserter, promising completely new dimensions of functionality and quality. It boasts some of the most amazing features that make this Formax automatic inserter a class apart. It features 1 special and 1 standard feeder that together perform exceptionally well to deliver the best output to the users. With little variation in the design and physical specs, this Formax FD 6606 inserter claims to bring the same quality, durability and affordability for the users like other members of the series. Hence with the FD 6606-Special 2 in possession, users can make their envelope folding and inserting jobs easier and much facilitated than ever before.
Video of Formax FD 6606-Special 2 Folder & Inserter
