Formax  |  SKU: FD 6404-Standard 5F

Formax FD 6404-Standard 5F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6404-Standard 5F Folder & Inserter
Manufacturer GBC
SKU FD 6404-Standard 5F
Dimensions (H”xW”xD”) 36.5 x 72 x 16.5 (4 Stations)
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capactiy)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 120V AC, 60 Hz
Optional Accessories Advanced OMR & BCR, Formax MailDoc Software, Short Feed Trays, Production Feeder, Side Exit tray
Programmable Fold Applications 25
Programmable Fold Applications 21 - 40
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

  • Formax FD 6404-Standard 5F with 2 - 6 fully-automatic feed stations
  • Processing capacity of up to 4,000 envelopes per hour
  • Easy process setup with AutoSet convenience and user-friendly adjustments
  • Up to 25 programmable fold applications for instant selection

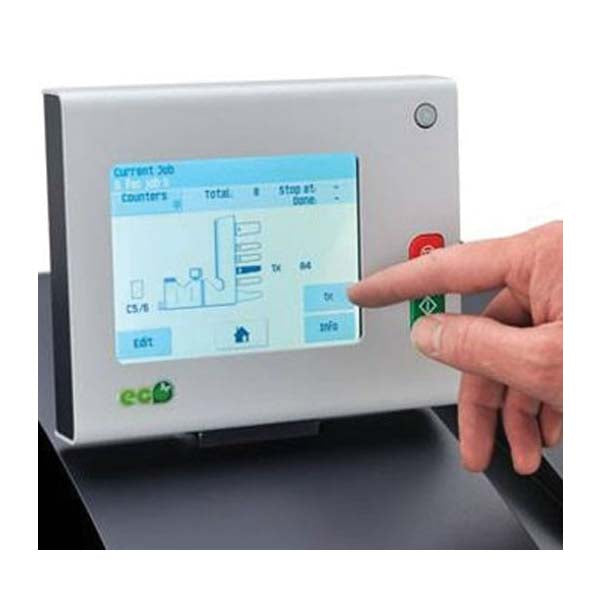

  • Touch-screen fully color control panel that is user-oriented and adaptable
  • Efficient diverter for reducing the chances of error in the output
  • Durable foam rollers minimize the maintenance cost
  • Seal and non-seal capabilities available with enhanced effect
  • 4 adjustable insert fingers for an all-rounding effect
  • Double document detection to avoid wastage of time and material
  • C, Half, Z, Double Parallel and even no fold option is available

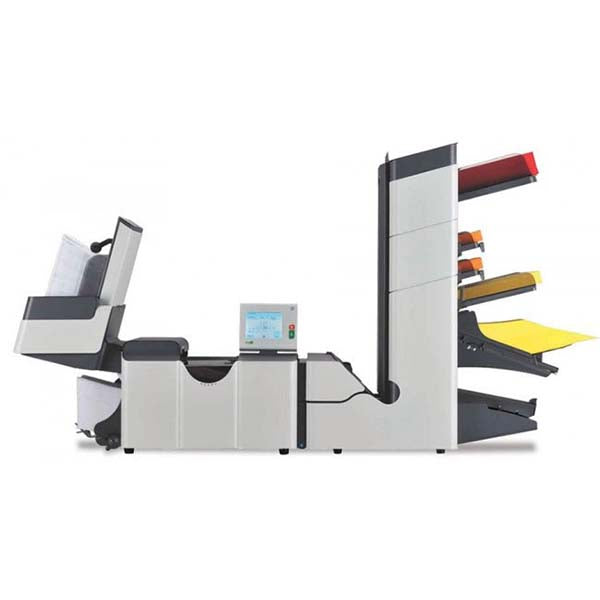

This Formax FD 6404 inserter is the next level insert/folder with 4 Standard Feeders and 1 High Capacity Document Feeder. With the standard touchscreen control panel in place, users can control their operations intelligently with the help of programmable jobs and other built-in conveniences. A variety of fold types particularly the C, Half, Z, Double Parallel and no fold are there to help users make a quick choice of the fold they want.

The feeders available in this Formax automatic inserter are so handy that provide a compact storage for a large number of documents before or after being processed. The FD 6404-Standard 5F guarantees the users of long-term support with its efficient standby mode that helps conserve the energy and increases the life of the product by automatically being activated after one hour of idleness.

Video of Formax FD 6404-Standard 5F Folder & Inserter
