Formax  |  SKU: FD 6404-Standard 4

Formax FD 6404-Standard 4 Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6404-Standard 4 Folder & Inserter
Manufacturer Formax
SKU FD 6404-Standard 4
Dimensions (H”xW”xD”) 36.5 x 72 x 16.5 (4 Stations)
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,000
Duty Cycle (Pieces/month) 60,000

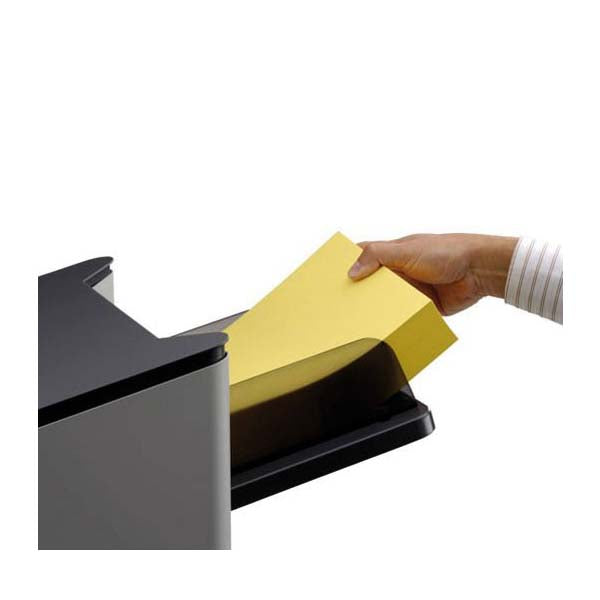

Feed Stations w/ Sheet Capacity 4 Standard Feeders (325 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 120V AC, 60 Hz
Optional Accessories Advanced OMR & BCR, Formax MailDoc Software, Short Feed Trays, Production Feeder, Side Exit tray
Programmable Fold Applications 25
Programmable Fold Applications 21 - 40
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

  • Formax FD 6404-Standard 4 with 2 - 6 fully-automatic feed stations
  • Features a processing capacity of up to 4,000 envelopes/hour
  • Facilitates setting of the machine with the AutoSet technology
  • Has 25 pre-installed and programmable fold applications

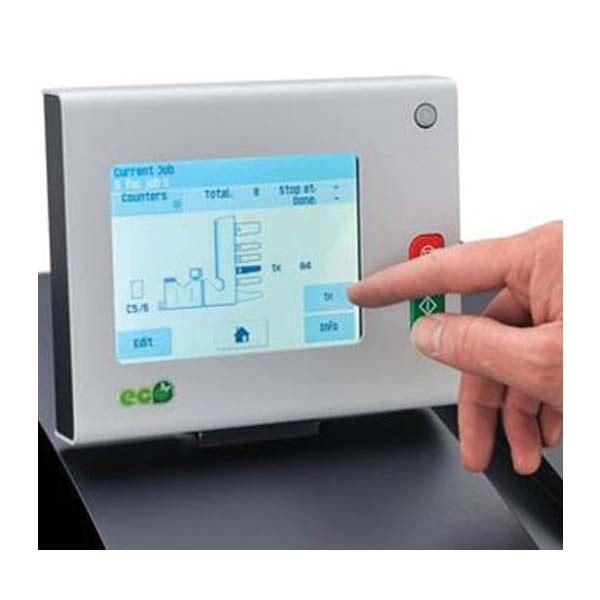

  • Color touch-screen control panel available for easy and user-friendly setting process
  • Consistent operation ensured for years due to the long-lasting foam rollers
  • Seal and non-seal capabilities
  • 4 adjustable insert fingers allow for a customized output with flexibility
  • Double document detection ensures that no envelope is filled twice
  • Diverter and water level detection features for additional convenience
  • Folds and inserts up to 10 pages in half-fold and up to 8 pages in tri-fold modes
  • Fold types of C, Half, Z, Double Parallel and no fold available

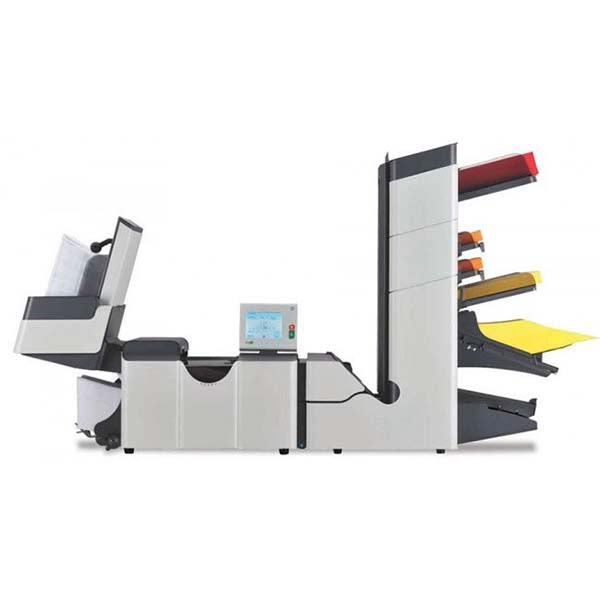

The Formax FD 6404-Standard 4 is a folder and inserter with 4 separate stations and feeders. Each feeder allows about 325 sheets of paper to be inserted into the machine. It makes this machine capable of processing about 1,300 sheets in one go. Users can apply one of the 5 different fold types available already in this Formax automatic inserter. About 10 sheets of paper can be neatly folded in the half-fold mode while up to 8 sheets can be done easily in the tri-fold mode. The Formax FD 6404 inserter is so smart and intuitive that it can deliver optimal output even without any supervision. It features energy saving mode that conserves energy by turning off the machine when it is not being used for about 1 hour.

Video of Formax FD 6404-Standard 4 Folder & Inserter
