Formax  |  SKU: FD 6404-Standard 3F

Formax FD 6404-Standard 3F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6404-Standard 3F Folder & Inserter
Manufacturer Formax
SKU FD 6404-Standard 3F
Dimensions (H”xW”xD”) 36.5 x 72 x 16.5 (4 Stations)
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 2 Standard Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 120V AC, 60 Hz
Optional Accessories Advanced OMR & BCR, Formax MailDoc Software, Short Feed Trays, Production Feeder, Side Exit tray
Programmable Fold Applications 25
Programmable Fold Applications 21 - 40
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

  • Formax FD 6404-Standard 3F Automatic Folder & Inserter with up to 6 automatic feed stations

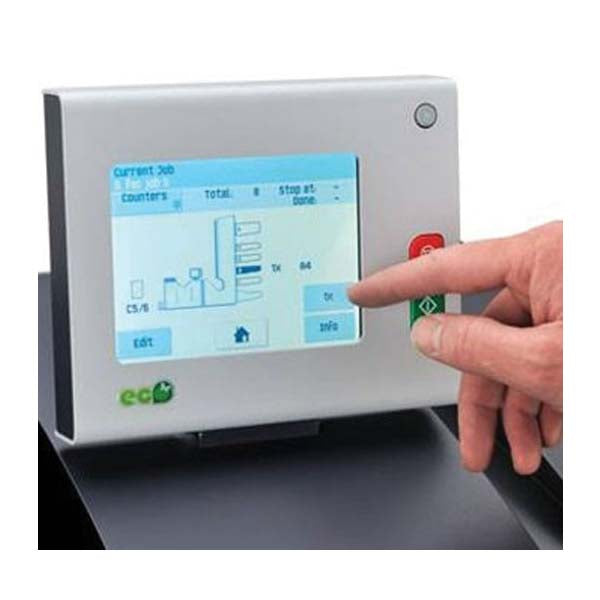

  • Presents a 5.7” touchscreen control panel that is reversible for convenient use

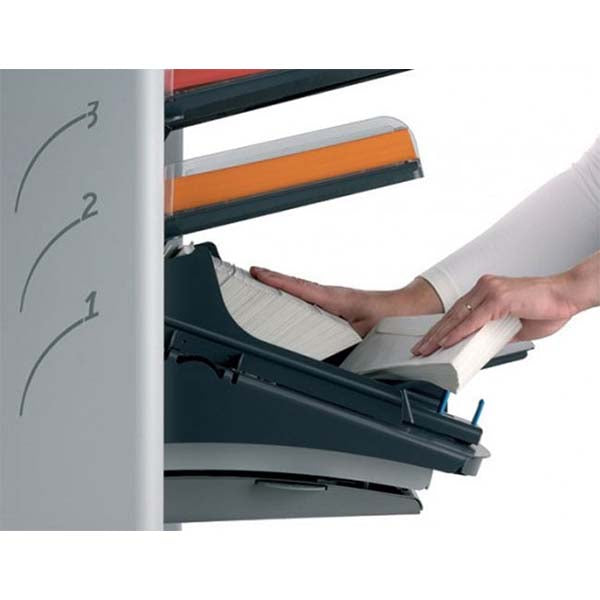

  • Has a power stacker with reverse stacking function to accommodate up to 500 filled envelopes
  • Easy installation with AutoSet technology
  • Can fill up to 4,000 envelopes in one hour at a great speed
  • 25 programmable jobs are ready to be applied for saving time of the users
  • C, Half, Z, Double Parallel and no fold are the built-in fold types
  • Unique top-loading envelope hopper capable of carrying up to 325 envelopes
  • Double-document detector for keeping the operations secure
  • Minimized error in the output because of the efficient diverter
  • Smart energy-saving mode that turns on the standby after 1 hour of inactivity

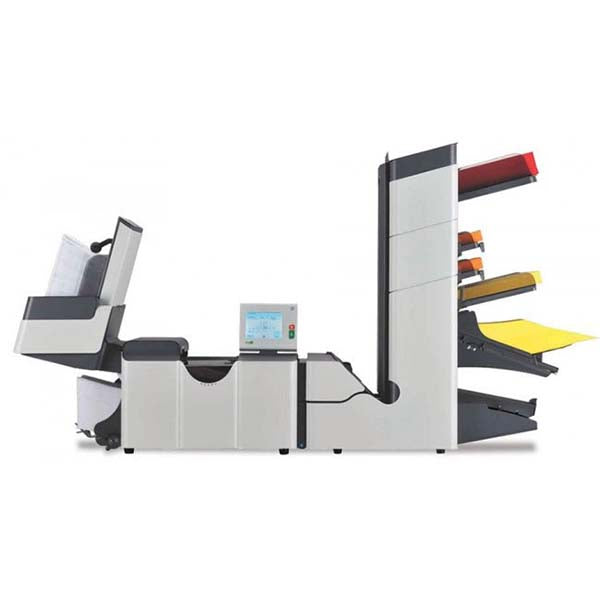

The Formax FD 6404-Standard 3F Automatic Folder & Inserter is a versatile machine for a variety of folding and inserting orientations. Up to 6 stations can be attached to the main chassis to increase the level of output. C, Half, Z, Double Parallel and no fold are some of the standard fold types that users can avail with this Formax automatic inserter.

FD 6404-Standard 3F boasts an outstanding full-color touchscreen control panel that makes the operations and settings easy with its touch-based interface. Users can collect up to 500 filled envelopes at one time in the spacious output stacker. Formax FD 6404 inserter is efficient in terms of energy as well because of its energy-saving mode that automatically turns on when the machine is not in use for a minimum of 1 hour.

Video of Formax FD 6404-Standard 3F Folder & Inserter
