Formax  |  SKU: FD 6404-Special 5F

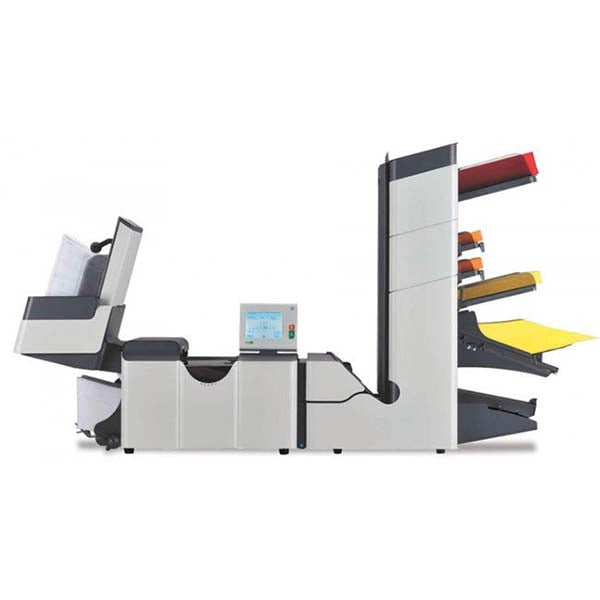

Formax FD 6404-Special 5F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6404-Special 5F Folder & Inserter
Manufacturer Formax
SKU FD 6404-Special 5F
Dimensions (H”xW”xD”) 36.5 x 72 x 16.5 (4 Stations)
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 2 Standard Feeders (325 sheet capacity) 2 Special Feeders (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 120V AC, 60 Hz
Optional Accessories Advanced OMR & BCR, Formax MailDoc Software, Short Feed Trays, Production Feeder, Side Exit tray
Programmable Fold Applications 25
Programmable Fold Applications 21 - 40
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

  • Formax FD 6404-Special 5Fpresenting 5automatic feed stations for enhanced productivity
  • Efficient enough to process about 4,000 envelopes per hour
  • Superb duty cycle giving up to 60,000 pieces per month
  • Applies half-fold to about 10 pages andtri-foldto about 8 pages in one go
  • Built-in fold types include C, Half, Z, Double Parallel and no fold
  • AutoSetfacility for intelligent process setup
  • 25 programmable fold applications that make the folding/inserting job easy

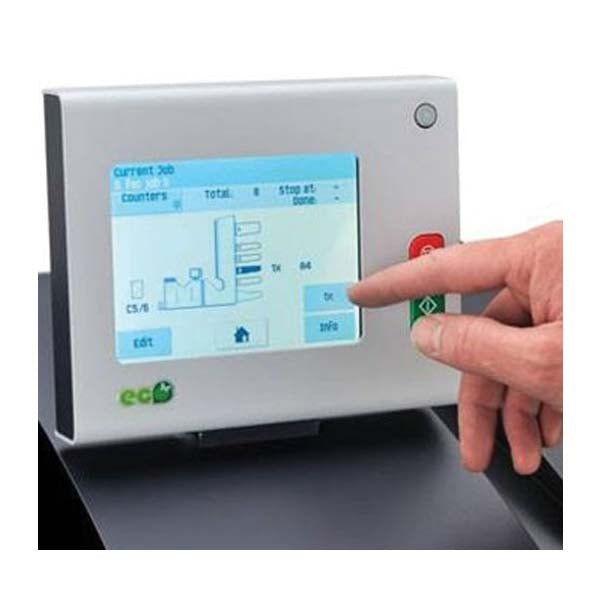

  • User-friendly touchscreen control panel with all the settings just a touch away
  • Errors minimized in the output with the diverter
  • Foam rollers that assure the users of a smooth and durable output
  • 4 insert fingers that are adjustable according to the need
  • Double document detection feature available to avoid unwanted filling of the envelopes

The Formax FD 6404 inserter is a spot on solution for large-scale folding and inserting tasks. This machine possesses 2 Standard Feeders, 2 Special Feeders and 1 High Capacity Document Feeder, each designed for a unique function. A top-loading envelope hopper accommodating up to 325 envelopes and a large output stacker accommodating up to 500 fully-done envelopes are the structural features that provide a means of delivering the output systematically.

This Formax automatic inserter has a handy control panel that displays all the settings to be operated with a touch. FD 6404-Special 5F also gives confidence to the users because of its energy-saving mode that automatically starts performing when the machine stays idle for a certain time.

Video of Formax FD 6404-Special 5F Folder & Inserter
