Formax  |  SKU: FD 6404-Special 3F

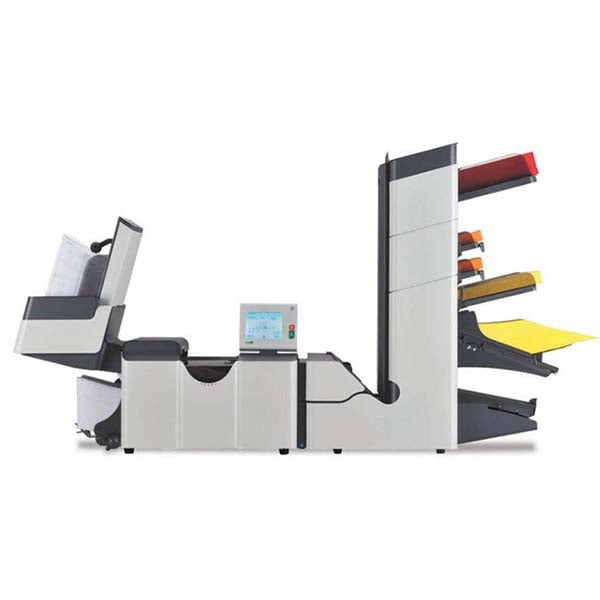

Formax FD 6404-Special 3F Folder & Inserter


Brochure View PDF File

Product Specifications
Product Name Formax FD 6404-Special 3F Folder & Inserter
Manufacturer Formax
SKU FD 6404-Special 3F
Dimensions (H”xW”xD”) 36.5 x 72 x 16.5 (4 Stations)
Envelope Hopper Capacity (Envelopes) 325
Setup Autoset, one-touch setup
Speed (Pieces/hr) 4,000
Duty Cycle (Pieces/month) 60,000
Feed Stations w/ Sheet Capacity 1 Standard Feeder (325 sheet capacity) 1 Special Feeder (325 sheet capacity) 1 High Capacity Feeder (725 sheet capacity)
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day limited warranty
Country of Origin United States
Power Supply (Volts) 120V AC, 60 Hz
Optional Accessories Advanced OMR & BCR, Formax MailDoc Software, Short Feed Trays, Production Feeder, Side Exit tray
Programmable Fold Applications 25
Programmable Fold Applications 21 - 40
Fold Types C, Half, Z, Double Parallel, No fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5.1 - 9
Product Description:

  • Formax FD 6404-Special 3FAutomatic Folder & Inserter with a processing capacity of 4,000 envelopes/hour
  • Can accommodate up to 6 automatic feed stations for more output in less time
  • Fold applications arranged in 25 programmable jobs

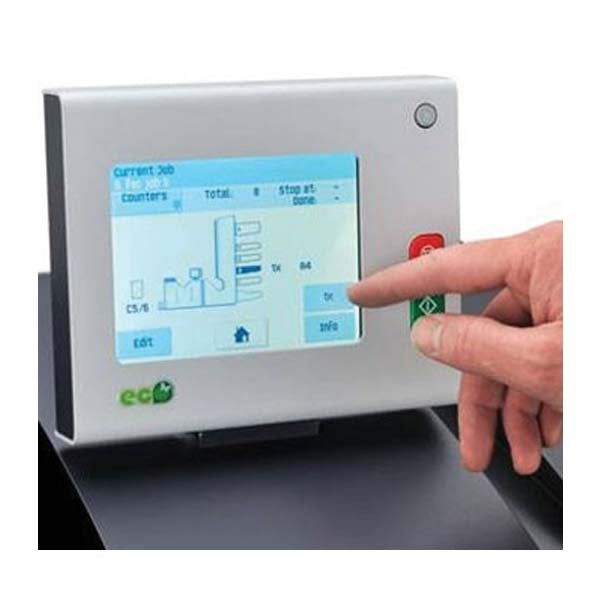

  • Vibrant control panel with touch-based interface
  • Features foam rollers that work consistently with unaltered efficiency
  • Water level detection results shown on the control panel for the facilitation of the users
  • 4 adjustable insert fingers for increased flexibility

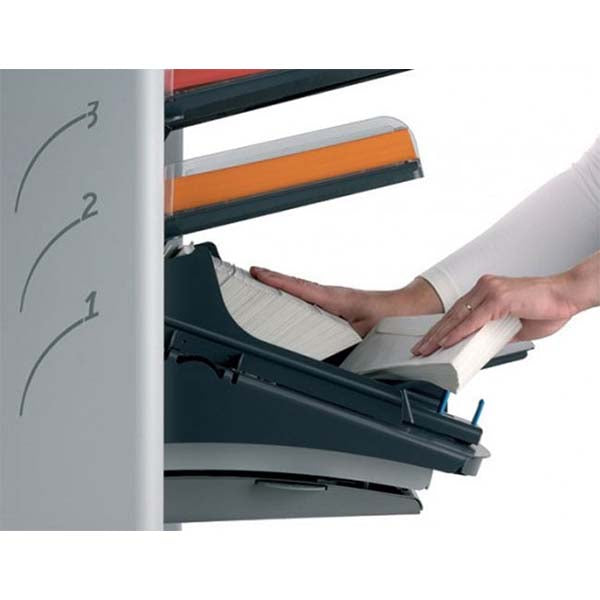

Formax FD 6404-Special 3FAutomatic Folder & Inserter comes with three unique stations, each serving a particular purpose: 1 Special Feeder, 1 Standard Feeder and 1 High Capacity Document Feeder. Each of these stations has its own working capacity and together they make Formax FD 6404 inserter simply exceptional. It also owns a high-capacity document feeder that can accommodate up to 725 sheets with lesser reloading time.

This Formax automatic inserter presents a touch-interface full-color control panel that simplifies the operations and helps in easy configuration of the entire system. The most impressive part is the AutoSet feature that smartly adjusts the setting as per the paper dimensions and starts the job accordingly. Moreover, the users can increase the chances of their project's success by reducing the error and incomplete output with the Diverter. With FD 6404-Special 3F, our customers can easily fold up to 10 sheets in Half-fold and up to 8 sheets in Tri-fold.

Frequently Asked Questions

Q. With such level of sophistication, is the machine easy to set up?

A. The Formax FD 6404-Special 3F Folder & Inserter is surely sophisticated in terms of its exceptional features. But its setup is a breeze owing to its AutoSet feature that allows one-touch set-up of all the job settings. The machine in its entirety is simple to set up as all the instructions are clearly given in the manual.

Q. In which orientation can this machine fold?

A. This product can apply C, Half, Z, and Double Parallel folds with ease. Even if you don’t want any fold, you have a setting for that, too.

Q. What options are available with Formax FD 6404-Special 3F Folder & Inserter?

A. The Formax FD 6404-Special 3F Folder & Inserter offers code reading facility, especially for Barcode and Optical Mark, a variety of output choices, cabinets, and 402 Series Joggers.

Video of Formax FD 6404-Special 3F Folder & Inserter
