Formax  |  SKU: FD 6210-Basic 1

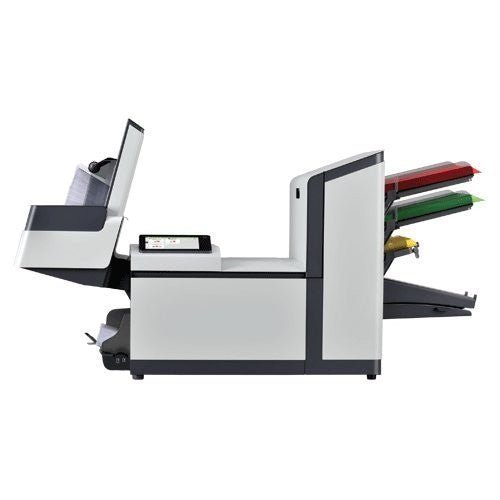

Formax FD 6210 Basic 1 Folder & Inserter

$13,495.00 $15,519.25
Low Volume Desktop Inserter with 1 Automatic Sheet Feeder. Fold & Insert up to 2,200 Pieces/Hour

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6210 Basic 1 Folder & Inserter
Manufacturer Formax
SKU FD 6210-Basic 1
Dimensions (H”xW”xD”) 36” H x 16.5” W x 49” D
Envelope Hopper Capacity (Envelopes) 150
Setup Autoset, one-touch setup
Speed (Pieces/hr) 2200
Duty Cycle (Pieces/month) 15000-20000
Feed Stations w/ Sheet Capacity 1 Feed Station with 325 Sheet Capacity
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 120V
Optional Accessories Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5 - 9
Product Description:

Features of FD 6210- Basic 1 Folder & Inserter

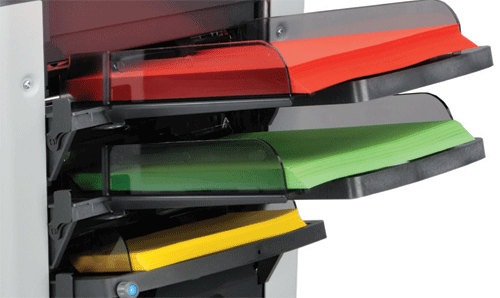

  • Basic 1 includes one fully automatic sheet feeder for processing
  • Processing speed of up to 2,000 pieces per hour
  • 7 inches color touchscreen control panel for innovative and easy use
  • Combined with advanced folding and inserting technology

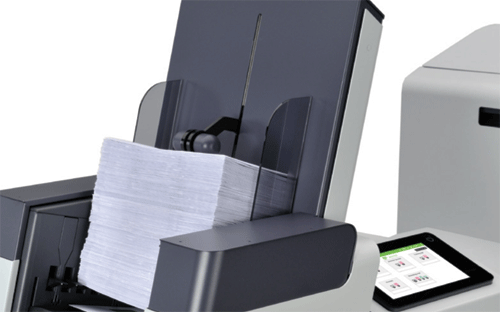

  • Mounted with high-capacity vertical stacker which holds up to 500 finished sheets
  • Paper and envelope presence sensors to assist users
  • Able to process 50 programmable jobs for frequently processed applications
  • User friendly device with auto set feature that senses and set paper length, fold type etc.
  • Capability of folding and inserting documents together
  • Fold types of C, V, Z, Double Parallel, no fold supported
  • Correctly reads OMR, 1D and 2D barcodes printed at any side on a document.

Performance of FD 6210- Basic 1 Folder & Inserter

The 6210 series of inserters consist of five configurations that are designed to meet the need of any small business or office just like the FD 6210- Basic 1. The FD 6210 Basic 1 is a machine with combination of folding and inserting expertise along with its flexible features that makes it easy to use. These 6210 configurations consist one automatic feeder to meet processing needs. The FD 6210 Basic 1 has the processing speed that can inserts up to 2,000 pieces per hour. Standard features included in the series are the 7” color touchscreen control panel with graphical interface for easy use and operations. The machine is also mounted with high-capacity vertical stacker that holds up to 500 finished sheets.

The FD 6210 Basic 1 is featured with automatic envelopes and paper sensor with graphic indicators on the touchscreen control panel that is used to assist users. The inserter consists of a top-loading envelope hopper that enables folding and inserting documents together. The FD 6210 Basic 1 has AutoSetTM that automatically measuring paper lengths, fold lengths and envelope sizes. Recurring jobs can be stored as one of 50 programmable tasks. These series are assembled with eco-friendly feature that saves energy by automatically putting the device into sleep mode after one hour of inactivity.

Recommendation & Warranty

The 6210 Basic 1 has the power to process many applications and offers reliability of larger machines with ease. The variety of features makes it an ideal for any size of office or workplace environment. This compact machine comes with a 90-day warranty of parts and labor to ensure customer satisfaction.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The Formax 6210 series comes with a 90 day warranty on parts excluding wearables and labor.


Q: My envelopes are double fed in to my 6210 inserter, what should i do?

A: This may occur when envelopes not placed properly in the hopper. Check and replace accordingly.


Q: How do i maintain my 6210 insterer properly?

A: Keep the system in proper condition by removing dust, paper remains etc daily.

Q: What is a folder unit?

A: The fold unit folds the documents and 6210 series can fold into C,V,Z, double V fold and no fold.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs alot then you can save it as a job for instant use.
