Formax  |  SKU: FD 6210-Advanced 1

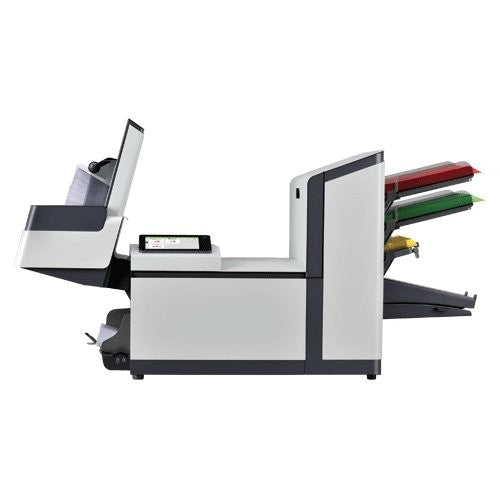

Formax FD 6210 Advanced 1 Folder & Inserter

$14,150.00 $16,272.50
Low Volume Desktop Inserter with 1 Automatic Sheet Feeder and 1 BRE Feeder. Fold & Insert up to 2,200 Pieces/Hour

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax FD 6210 Advanced 1 Folder & Inserter
Manufacturer Formax
SKU FD 6210-Advanced 1
Dimensions (H”xW”xD”) 36” H x 16.5” W x 49” D
Envelope Hopper Capacity (Envelopes) 150
Setup Autoset, one-touch setup
Speed (Pieces/hr) 2200
Duty Cycle (Pieces/month) 15000-20000
Feed Stations w/ Sheet Capacity 1 Feed Station with 325 Sheet Capacity and 1 BRE feeder with 50 BREs or 325 inserts
Vertical Stacker Capacity (Filled Envelopes) 500
Max. sheet Size (H") 3.5 - 14
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 120V

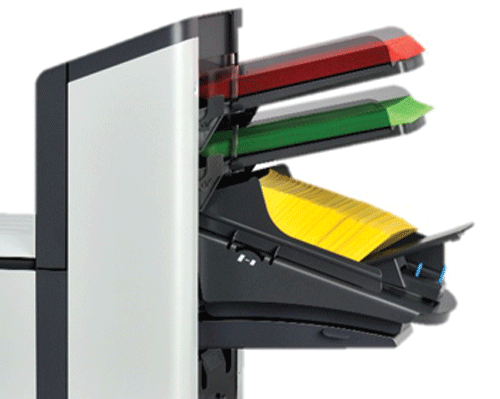

Optional Accessories Short Feed Trays, Production Feeder, CIS Scanner, Single or Multi-Code Reading Licenses, Productivity Package, Front or Rear Side Exit Tray and Catch Tray
Programmable Fold Applications 50
Programmable Fold Applications 41 - 60
Fold Types C, V, Z, Double Parallel, no fold
Double Feed Detection Yes
Envelope Size (W") 6.3 - 9.7
Envelope Size (H") 3.5 - 6.35
Max. sheet Size (W") 5 - 9
Product Description:

Features of FD 6210- Advanced 1 Folder & Inserter

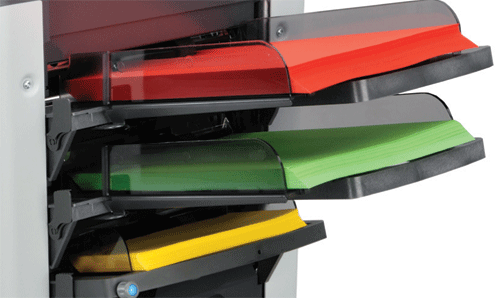

  • This inserter is equipped with one sheet feeder and one insert/BRE feeder
  • Processing speed of 2000 to 2200 inserts per hour and monthly cycle of 15000 to 2000 to 22000
  • 7” color touchscreen control panel with graphical interface
  • Let’s you choose and store manual and automatic 50 programmable jobs

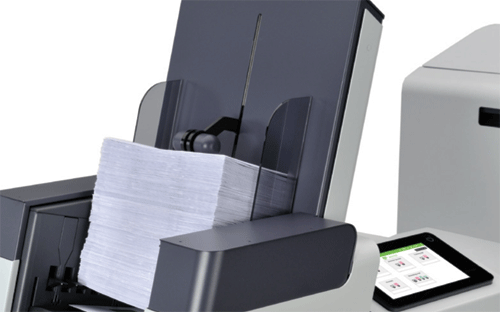

  • High capacity output stacker that holds up to 500 forms easily
  • Eco mode is enabled that sleeps device when inactive for an hour
  • Fold types of C, V, Z, double parallel, no fold supported
  • The documents are folded and inserted together and sealed if instructed
  • Correctly reads OMR, 1D and 2D barcodes printed at any side on a document
  • Envelope and paper sensors presence on touchscreen to assist users
Performance of FD 6210- Advanced 1 Folder & Inserter

The FD 6210 Advanced 1 is a configuration if the 6210 low volume tabletop inserter series. The Advanced 1 is equipped with one sheet feeder and one BRE feeder. The one insert feeder is intended to use for Business Reply Envelopes (BRE), but also 'standard' documents can be processed as well. The Advanced 1 has the processing speed of 2000 to 2200 documents per hour that are folded and inserted together. AutoSetTM automatically sets the paper length, fold length, fold type, envelope size and double document detection. This user friendly is assembled with a 7” color touchscreen for quick and easy setup. Advanced 1 is handy as it saves up to 50 programmable recurring jobs.

The Advanced 2 is mounted with high-capacity vertical stacker which carries up to 500 complete envelopes easily. The FD 6210 Advanced 1 supports up to 5 types of fold like C, V, Z, double parallel, no fold as well as multiple insert capability that can fold or insert sheets, BREs and cards in almost any combination. These series are assembled with eco-friendly feature that saves energy by automatically putting the device into sleep mode after one hour of inactivity.

Recommendation & Warranty

The 6210 Advanced 1 is capable of inserting and folding with ease and efficiency. It also accommodates the Business Reply Envelopes and seals if required. This inserter is ideal for small business as it is reliable and a compact machine. The inserter is backed by 90-day warranty on parts and labor for ensure customer contentment.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The Formax 6210 series comes with a 90 day warranty on parts excluding wearables and labor.

Q: My envelopes are double fed in to my 6210 inserter, what should i do?

A: This may occur when envelopes not placed properly in the hopper. Check and replace accordingly.

Q: How do i maintain my 6210 insterer properly?

A: Keep the system in proper condition by removing dust, paper remains etc daily.

Q: What is a folder unit?

A: The fold unit folds the documents and 6210 series can fold into C,V,Z, double V fold and no fold.

Q: What is a job?

A: If there is a certain type of mail set that reoccurs alot then you can save it as a job for instant use.

Video of Formax FD 6210 Advanced 1 Folder & Inserter
