Formax  |  SKU: FD 404A1

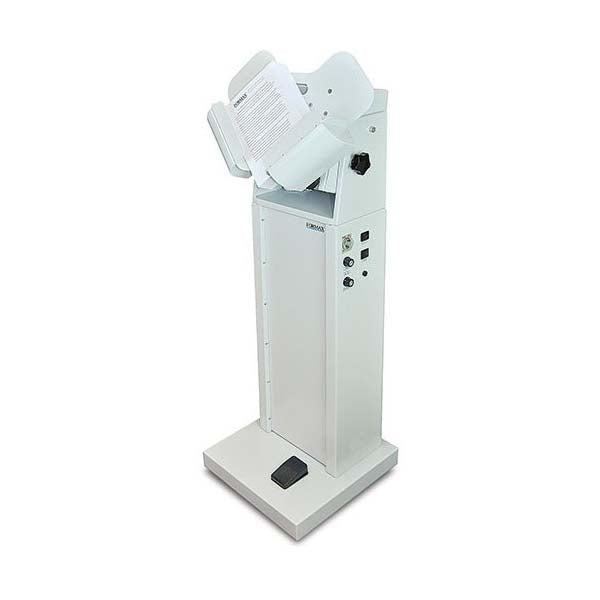

Formax FD 404A1 High Capacity Air Jogger

Foot Pedal Operation Has 940 Sheet Capacity, Jogs Max. Sheet Size of 12" x 18" At Speed Of 3,000 (Vibrations/Min)

Spec Sheet: View PDF File

Product Specifications
Product Name Formax FD 404A1 High Capacity Air Jogger
Manufacturer Formax
SKU FD 404A1
Dimensions (H”xW”xD”) 54 x 21 x 18
Max. Sheet Size (W"x L") 12 x 18
Sheet Capacity 940
Operation Mode Foot Pedal
Min. Sheet Size (W"x L") 5 x 7
Warranty 90 day limited warranty on parts, excluding wearables
Country of Origin United States
User Type Commercial
Additional Features User-Friendly Control Panel, Operating Modes, Tilting Jog Bin
Bin Size (L"xW"xD") 0 x 20.37 x 3.75
Speed (vibrations/min) 3,000
Product Description:

  • Align, dry and remove static in one simple step

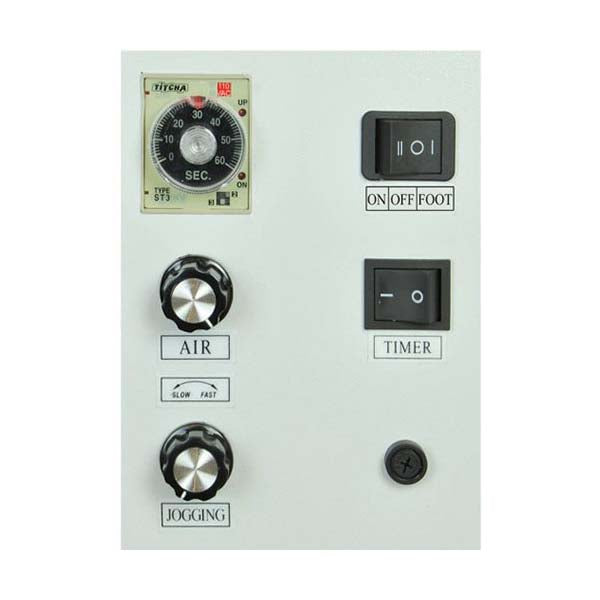

  • Easy to use control panel
  • Foot pedal control allows for two-handed loading and unloading
  • Variable speed control with 3000 vibrations per minute
  • Variable air pressure control: up to 29,000 rpm, reduces jogging time
  • Three operating modes: Vibrate and Air, Air Only and Vibrate Only

The Formax FD 404A1 high capacity air jogger, is an ideal machine for any print shop or office environment. With its revolutionary features, it beats all competition and serves to produce the best results. The Formax FD 404A1 aligns and dries printed sheets in a single process while reducing static electricity. Allows for two-handed loading and unloading to ensure the perfect ergonomic nature of the machine. The FD 404A1 includes an easy-to-use control panel that displays all the required details. The speed on the jogger can be varied up to 3,000 vibrations per minute and with that the air pressure can be controlled up to 29,000 rpm, reducing jogging time. The V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and crisscross stacked piles. The Formax high capacity air jogger jogs up to 940 sheets. The FD 404A1 has a 60-second countdown timer capable of unattended jogging. The jogger can be put in any of the three operating modes like “Vibrate and Air, Air-only and Vibrate-only”. All in all, the Formax FD 404A1 is a great high capacity jogger that will surely improve an office/print-shop operating efficiency.

Frequently Asked Questions

Q. Does it accommodate larger paper stacks or odd paper orientations?

A. Yes, it caters to large format paper stacks and crisscross stacked piles with its special V-shaped Tilting Jog Bin.

Q. Can it be left unattended while the paper jogging is on?

A. The Formax FD 404A1 High Capacity Air Jogger is fully capable of managing the paper jogging process on its own. Just turn on its 60-Second Countdown Timer and continue other chores without any worry.

Q. What media sizes it can cater to?

A. It can accommodate media sizes ranging from 5” x 7” Min - 12” x 18” Max.
