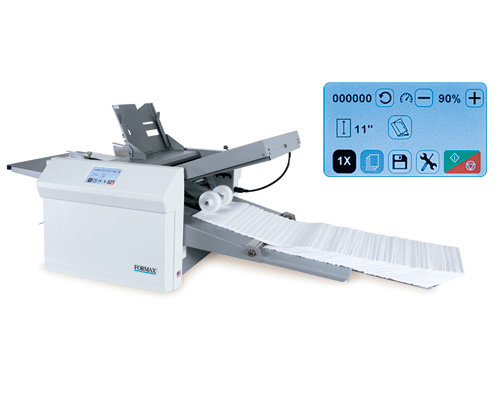

Formax FD 38Xi Fully Automatic Document Folder with Dedicated Multi-Sheet Feeder
Formax FD 38Xi Fully Automatic Document Folder with Dedicated Multi-Sheet Feeder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 38Xi Fully Automatic Document Folder with Dedicated Multi...
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 38Xi Fully Automatic Document Folder |
| Manufacturer | Formax |
| SKU | FD 38Xi |
| Dimensions - Closed (L"xW"xH") | 33" L x 20" W x 19" H |
| Dimensions - Extended (L"xW"xH") | 60" L x 20" W x 19" H |
| Speed (Sheets/Hour) | Up to 17,000 (based on 11" Z-Fold) |
| Hopper Capacity | Up to 500 sheets (20#) |
| Pre-Set Folds | C, V, Z, Gate, Fold Out, Double Parallel (18 total) |
| Custom Folds | Up to 36 |
| Paper Sizes | Min: 3.5" x 5" / Max: 12.25" x 18" |
| Feed Type | Drop-in three-roller feed system |
| Multi-Sheet Feeder | Dedicated (Standard) - up to 4 sheets |
| Category | Friction-Feed |
| Type of Folder | Fully Automatic |
| Weight | 73 lbs (33kg) |
| Power Supply (Volts) | 110-240VAC 50/60 Hz |
| Certifications | UL & CE approved |
| User Type | Offices, Churches, Schools, Mailrooms, Print Shops |
| Optional Accessories | Locking Cabinet, V-Stack36i Vertical Stacker |
| Additional Features | Color Touchscreen, Telescoping Conveyor (14"-36"), AutoStack™ Stacker Wheels, AutoBatch™, 6-Digit Resettable Counter, 8-Digit Life Counter, Noise Reduction, Cross-Folding Guide, Seven-Point Fold Stops |
| Warranty | Optional on-site 90-day warranty with installation |
Product Description:
Features of Formax FD 38Xi Document Folder
- Processes up to 17,000 sheets per hour
- Full-color touchscreen control panel with easy-to-recognize symbols
- 18 pre-programmed fold settings for C, V, Z, Gate, Fold Out, and Double Parallel
- Stores up to 36 custom folds in memory

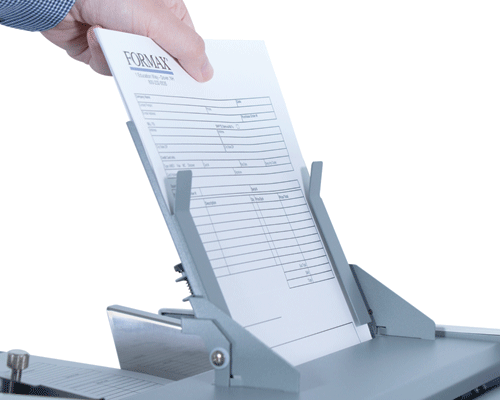

- Dedicated Multi-Sheet Feeder (standard) folds up to 4 stapled or unstapled sheets
- Hopper capacity of up to 500 sheets (20#)
- Handles paper sizes from 3.5" x 5" up to 12.25" x 18"
- Patented Telescoping Conveyor System extends from 14" to 36"

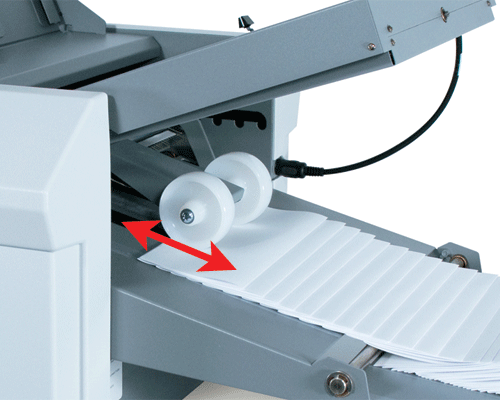

- AutoStack™ fully-automated stacker wheels
- Drop-in three-roller feed system for reliable feeding
Performance of Formax FD 38Xi Document Folder
The Formax FD 38Xi Fully Automatic Document Folder delivers high-performance folding at up to 17,000 sheets per hour. Fully automated fold plates provide one-touch setup of 18 pre-programmed or 36 custom folds that can be stored into memory. The FD 38Xi folds up to 500 sheets in as fast as 2 minutes and holds the folded pieces on its patented Telescoping Conveyor System with AutoStack™ fully-automated stacker wheels that eliminate moving them by hand when switching paper types.

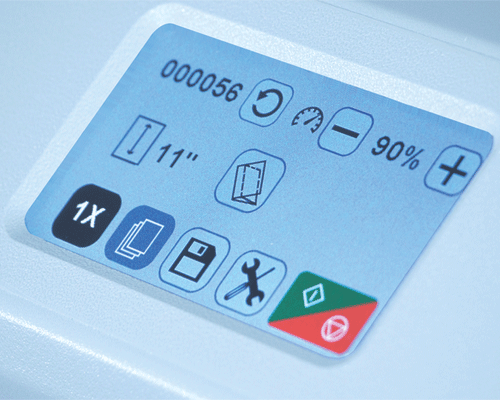

The large full-color touchscreen control panel utilizes easily-recognized symbols in place of text, allowing operators to walk up and start folding with little to no instruction. The Dedicated Multi-Sheet Feeder comes standard and allows up to 4 stapled or unstapled sheets to be folded at one time, making it perfect for newsletters, booklets, and multi-page documents. Standard features also include noise reduction technology, 6-digit resettable and 8-digit life counter, AutoBatch™, cross-folding guide, easy-off feed wheel shaft, and seven-point fold stops for accuracy.
Recommendation & Warranty
The FD 38Xi is ideal for offices, churches, schools, mailrooms, and print shops requiring reliable high-volume document folding with multi-sheet capability. It can be combined with the optional V-Stack36i Vertical Stacker for up to 22" of vertically stacked folded documents. This device comes with an optional on-site 90-day warranty with installation.
Frequently Asked Questions
Q: What is the processing speed of the FD 38Xi?
A: The FD 38Xi processes up to 17,000 sheets per hour based on 11" Z-Fold.
Q: What fold types does the FD 38Xi support?
A: The FD 38Xi is pre-programmed for C, V, Z, Gate, Fold Out, and Double Parallel folds, plus up to 36 custom folds.
Q: What is the difference between the FD 386 and FD 38Xi?
A: The FD 38Xi includes a Dedicated Multi-Sheet Feeder as standard (optional on FD 386), stores 36 custom folds (vs 27), and features AutoStack™ fully-automated stacker wheels.
Q: Can the FD 38Xi fold multiple sheets at once?
A: Yes, the Dedicated Multi-Sheet Feeder comes standard and folds up to 4 stapled or unstapled sheets at one time.
Q: What is the maximum paper size the FD 38Xi can handle?
A: The FD 38Xi handles paper sizes from 3.5" x 5" minimum up to 12.25" x 18" maximum.
Q: What is the hopper capacity of the FD 38Xi?
A: The FD 38Xi hopper holds up to 500 sheets of 20# paper.
Q: For how long am I entitled to warranty?
A: The FD 38Xi comes with an optional on-site 90-day warranty with installation.
