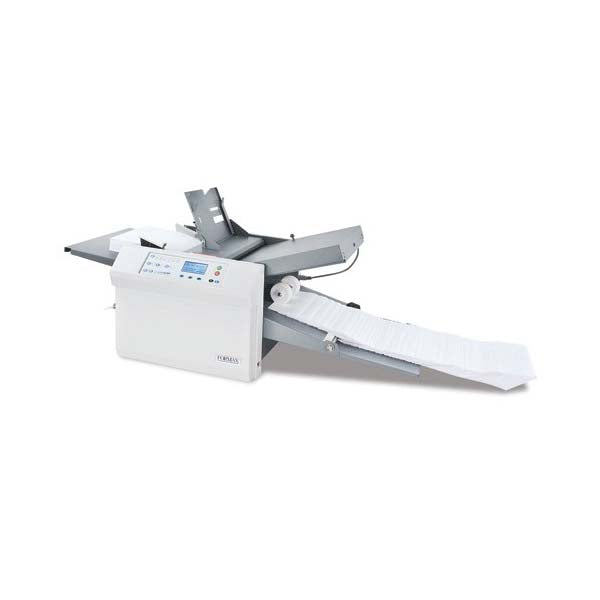

Formax FD 38X Fully Automatic Tabletop Document Folder
Formax FD 38X Fully Automatic Tabletop Document Folder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Brochure: View PDF File
User Manual: View PDF File
Product Specifications
| Product Name | Formax FD 38X Fully Automatic Tabletop Document Folder |
| Manufacturer | Formax |
| Speed (Sheets/Hour) | 20,100 | Feed Tray Capacity | 500 |
| Type of Folder | Auto-Feed, Auto Set-up |
| Fold Selection Setup | Automatic |
| Automated Feed | Yes |
| User Type | Commercial |
| Fold Type | Letter Fold, Z-Fold, Half-Fold, Fold Out, Gate-Fold, Double Parallel Fold |
| Paper Size (W"" x L"") | 3.5 x 5 - 12.25 x 18 |
| Power Supply (Volts) | 110v, 60 Hz |
| Dimensions (H”xW”xD”) | 19 x 20 x 60 |
| Weight | 74 lbs |
Product Description:
Features of the Formax FD 38X Automatic Tabletop Folder
- Fully automatic setup with motorized fold plates for fast job changeovers
- High-speed output capable of processing up to 20,100 sheets per hour
- Pre-programmed with 18 standard fold settings and stores up to 35 custom folds

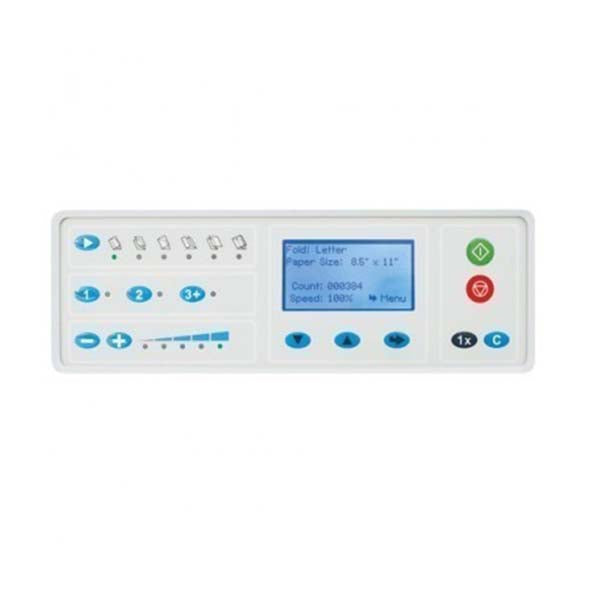

- Large 2.8-inch backlit LCD control panel for clear navigation and job programming

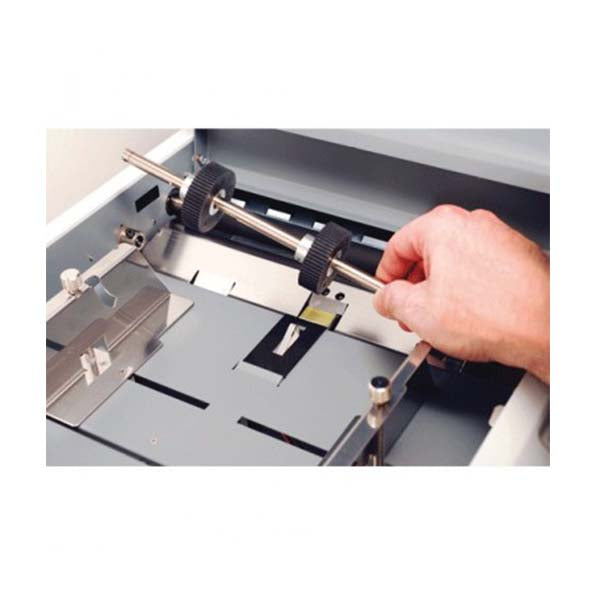

- Patented Multi-Sheet Feeder folds up to four stapled or unstapled sheets at one time
- High-capacity hopper holds up to 500 sheets for unattended operation
- AutoStack stacker wheels automatically adjust for different paper sizes and fold types
- Telescoping conveyor system neatly stacks folded documents for easy retrieval
The Formax FD 38X Automatic Tabletop Folder is designed for fast-paced environments that require reliable, high-quality folding with minimal operator involvement. Capable of folding up to 20,100 sheets per hour, the FD 38X combines fully automated fold plate adjustment with pre-programmed and customizable fold settings to handle a wide range of applications. Operators can load up to 500 sheets, select a fold, and allow the machine to complete jobs efficiently while they attend to other tasks. This streamlined workflow supports consistent productivity in offices, schools, and print-for-pay centers.

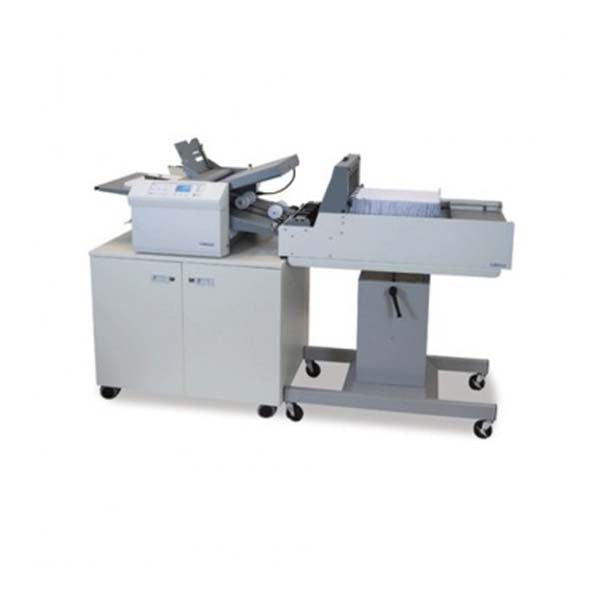

Equipped with advanced automation and output handling, the Formax FD 38X enhances both accuracy and ease of use. The large backlit LCD control panel simplifies programming and adjustments, while the patented Multi-Sheet Feeder expands capability for stapled document sets. AutoStack stacker wheels and the telescoping conveyor ensure clean, organized output regardless of fold type or paper size. Optional vertical stacking accessories further extend output capacity, making the FD 38X a flexible and dependable solution for demanding folding operations.
Frequently Asked Questions
Q: Who is the Formax FD 38X best suited for?
A: The Formax FD 38X is designed for offices, schools, churches, and print-for-pay centers that need fast, automated folding with minimal operator involvement.
Q: How much operator setup is required on the Formax FD 38X?
A: Setup is fully automatic, with motorized fold plates and one-touch selection through the LCD control panel, making it suitable for untrained operators.
Q: Can the Formax FD 38X fold stapled document sets?
A: Yes, the patented Multi-Sheet Feeder allows the FD 38X to fold up to four stapled or unstapled sheets at one time through a dedicated feed path.
Q: Is the Formax FD 38X capable of unattended operation?
A: The high-capacity hopper and automated stacking system allow jobs to run unattended, letting operators focus on other tasks while folding is completed.
