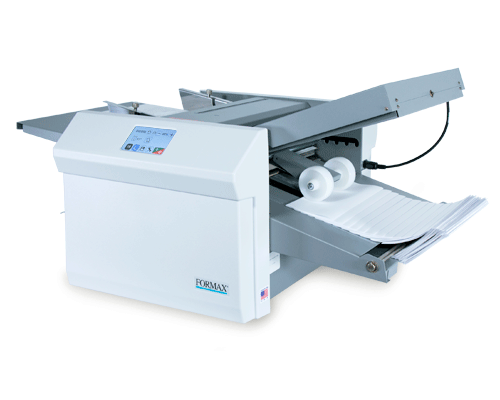

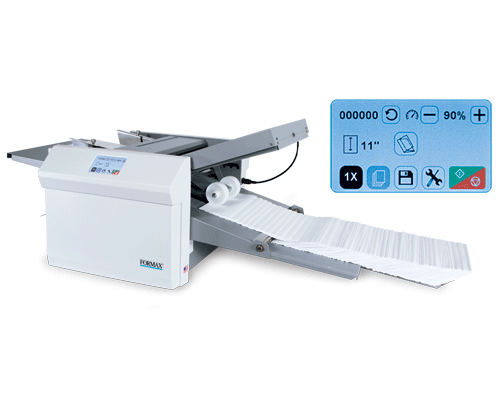

Formax FD 386 Automatic Document Folder with Touchscreen Control Panel
Formax FD 386 Automatic Document Folder with Touchscreen Control Panel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 386 Automatic Document Folder with Touchscreen Control Panel
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 386 Automatic Document Folder |
| Manufacturer | Formax |
| SKU | FD 386 |
| Dimensions - Closed (L"xW"xH") | 33" L x 20" W x 19" H |
| Dimensions - Extended (L"xW"xH") | 60" L x 20" W x 19" H |
| Speed (Sheets/Hour) | Up to 17,000 (based on 11" Z-Fold) |
| Hopper Capacity | Up to 500 sheets (20#) |
| Pre-Set Folds | C, V, Z, Gate, Fold Out, Double Parallel (18 total) |
| Custom Folds | Up to 27 |
| Paper Sizes | Min: 3.5" x 5" / Max: 12.25" x 18" |
| Feed Type | Drop-in three-roller feed system |
| Category | Friction-Feed |
| Type of Folder | Automatic |
| Weight | 73 lbs (33kg) |
| Power Supply (Volts) | 110-240VAC 50/60 Hz |
| Certifications | UL & CE approved |
| User Type | Offices, Churches, Schools, Mailrooms, Print Shops |
| Optional Accessories | Multi-Sheet Feeder, Locking Cabinet, V-Stack36i Vertical Stacker |
| Additional Features | Color Touchscreen, Telescoping Conveyor (14"-36"), Adjustable Stacker Wheels, AutoBatch™, 6-Digit Resettable Counter, 8-Digit Life Counter, Noise Reduction, Cross-Folding Guide |
| Warranty | Optional on-site 90-day warranty with installation |
Product Description:
Features of Formax FD 386 Document Folder
- Processes up to 17,000 sheets per hour

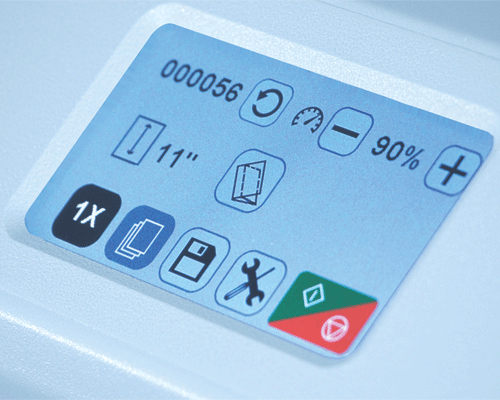

- Full-color touchscreen control panel with easy-to-recognize symbols
- 18 pre-programmed fold settings for C, V, Z, Gate, Fold Out, and Double Parallel
- Stores up to 27 custom folds in memory
- Hopper capacity of up to 500 sheets (20#)
- Handles paper sizes from 3.5" x 5" up to 12.25" x 18"
- Patented Telescoping Conveyor System extends from 14" to 36"
- Adjustable stacker wheels for neat stacking of folded pieces

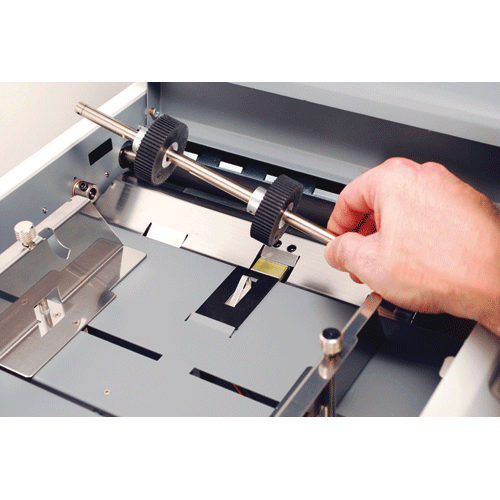

- Drop-in three-roller feed system for reliable feeding

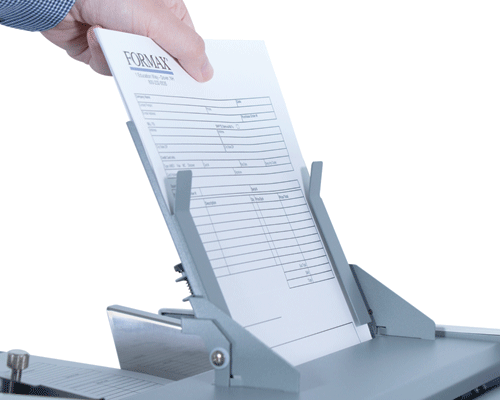

- Optional multi-sheet feeder folds up to 4 stapled or unstapled sheets at once
Performance of Formax FD 386 Document Folder
The Formax FD 386 Automatic Document Folder delivers high-performance folding at up to 17,000 sheets per hour. Fully automated fold plates provide one-touch setup of 18 pre-programmed or 27 custom folds that can be stored into memory. The FD 386 folds up to 500 sheets in as fast as 2 minutes and holds the folded pieces on its patented Telescoping Conveyor System with adjustable stacker wheels.
The large full-color touchscreen control panel utilizes easily-recognized symbols in place of text, allowing operators to walk up and start folding with little to no instruction. Standard features include a drop-in three-roller feed system, noise reduction technology, 6-digit resettable and 8-digit life counter, AutoBatch™, cross-folding guide, and seven-point fold stops for accuracy. The optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time, making it perfect for newsletters and multi-page documents.
Recommendation & Warranty
The FD 386 is ideal for offices, churches, schools, mailrooms, and print shops requiring reliable high-volume document folding. It can be combined with the optional V-Stack36i Vertical Stacker for up to 22" of vertically stacked folded documents. This device comes with an optional on-site 90-day warranty with installation.
Frequently Asked Questions
Q: What is the processing speed of the FD 386?
A: The FD 386 processes up to 17,000 sheets per hour based on 11" Z-Fold.
Q: What fold types does the FD 386 support?
A: The FD 386 is pre-programmed for C, V, Z, Gate, Fold Out, and Double Parallel folds, plus up to 27 custom folds.
Q: What is the maximum paper size the FD 386 can handle?
A: The FD 386 handles paper sizes from 3.5" x 5" minimum up to 12.25" x 18" maximum.
Q: Can the FD 386 fold multiple sheets at once?
A: Yes, with the optional Multi-Sheet Feeder, the FD 386 can fold up to 4 stapled or unstapled sheets at one time.
Q: What is the hopper capacity of the FD 386?
A: The FD 386 hopper holds up to 500 sheets of 20# paper.
Q: How long is the telescoping conveyor?
A: The patented Telescoping Conveyor System extends from 14" to 36" in length and holds up to 500 folded pieces.
Q: For how long am I entitled to warranty?
A: The FD 386 comes with an optional on-site 90-day warranty with installation.
