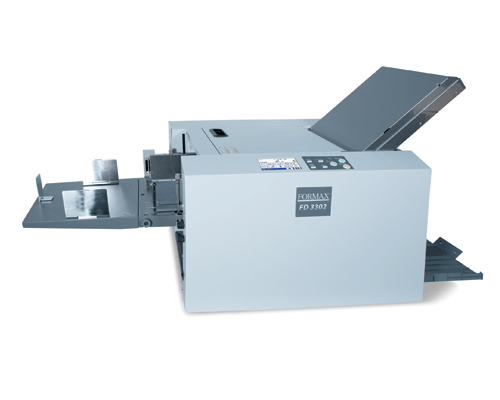

Formax FD 3302 Air-Suction Tabletop Document Folder
Formax FD 3302 Air-Suction Tabletop Document Folder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 3302 Air-Suction Tabletop Document Folder
Spec Sheet: View PDF File
Product Specifications
| Product Name | Formax FD 3302 Air-Suction Tabletop Document Folder |
| Manufacturer | Formax |
| SKU | FD 3302 |
| Dimensions (L"xD"xH") | 53.3" L x 23.2" D x 24.2" H |
| Speed (Sheets/Hour) | Up to 18,600 (11", single fold) |
| Infeed Capacity | Up to 1.96" high, 625 sheets (64gsm) |
| Pre-Set Folds | C, Z, Half, Fold Out, Double Parallel, Gate, Custom |
| Custom Folds | Up to 30 |
| Paper Sizes | Min: 4.73" x 7.2" / Max: 12.2" x 25.5" |
| Paper Weight (Uncoated) | 52.3 - 157gsm (14 - 40#) |
| Paper Weight (Coated) | 73.3 - 157gsm (19 - 40#) |
| Paper Weight (Maximum) | Up to 230gsm (single fold) |
| Feed Type | Air suction belt |
| Double Feed Detection | Optical and ultrasonic sensors |
| Weight | 157 lbs (71kg) |
| Power Supply (Volts) | 110V-240, 50/60 Hz |
| User Type | Print Shops, Mailrooms, High-Volume Offices |
| Operation Type | Automatic |
| Category | Air-Suction Feed |
| Optional Accessories | 402 Series Air Jogger |
| Additional Features | Color Touchscreen, Automatic Paper Size Detection, Side Air System, Batch Counting, Noise Reduction, Four Fold Rollers |
Product Description:
Features of Formax FD 3302 Document Folder
- Processes up to 18,600 sheets per hour
- Air-suction feed technology reduces static and minimizes feed marks

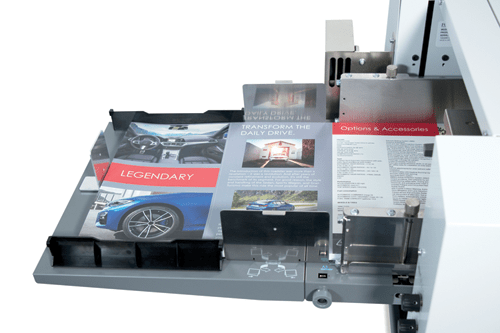

- Extended infeed handles sheets up to 25.5" long

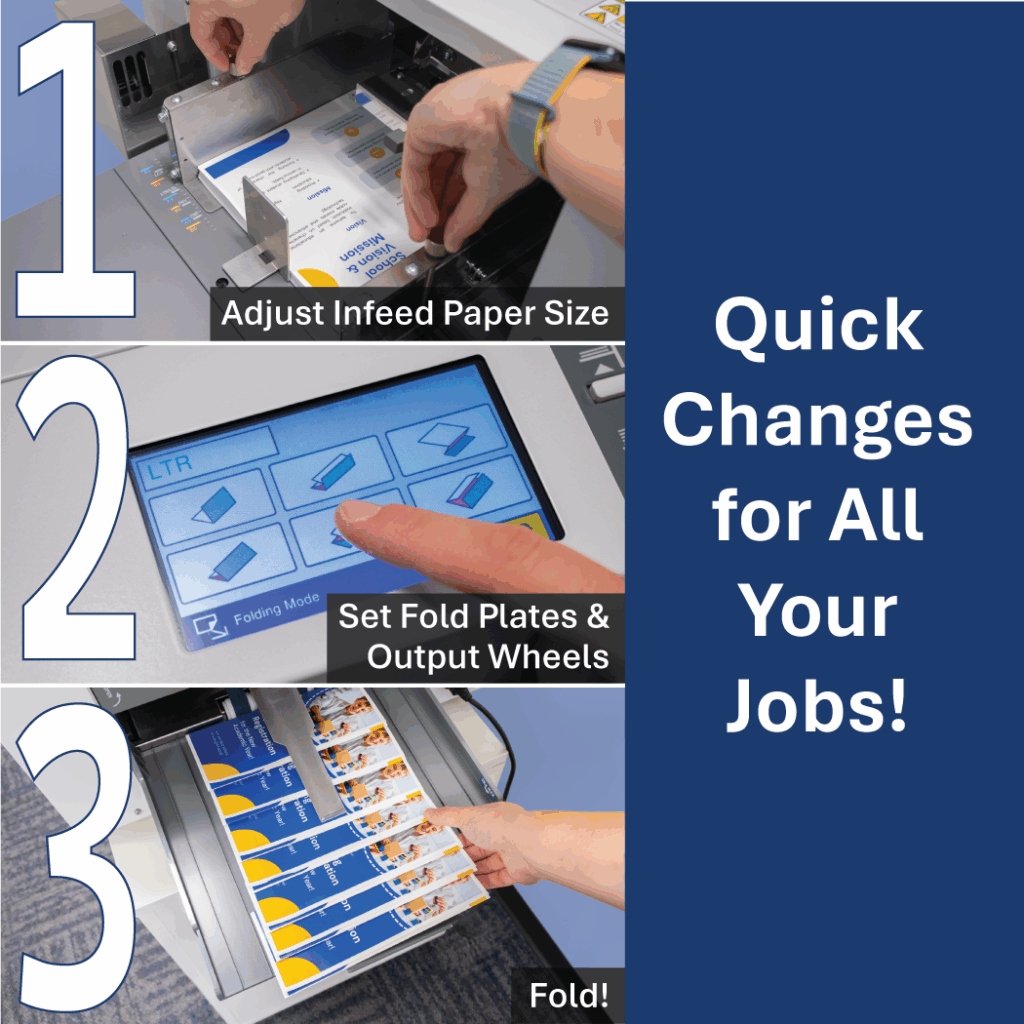

- Automatic paper size detection and fold plate settings

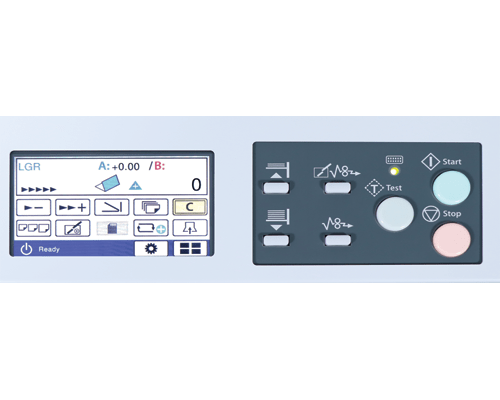

- Color touchscreen control panel for easy programming
- Six pre-programmed fold settings with up to 30 custom folds
- Feed tray capacity of up to 625 sheets (64gsm)
- Handles heavy and coated stock up to 230gsm (single fold)
- Optical and ultrasonic double feed detection sensors

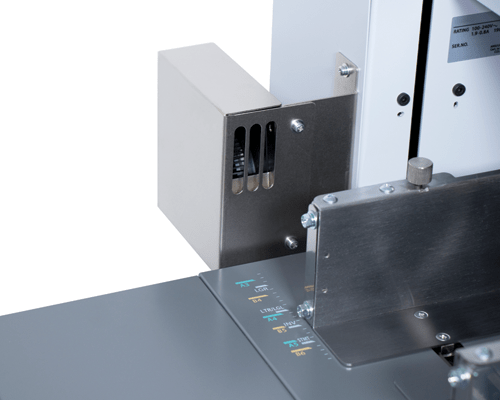

- Side air system enhances feeding of heavy stock and large paper
Performance of Formax FD 3302 Document Folder
The Formax FD 3302 Air-Suction Document Folder offers high performance folding in a compact tabletop unit. The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems, making it the ideal choice for handling heavy and coated stock. With a speed of up to 18,600 sheets per hour and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications all at the touch of a button.

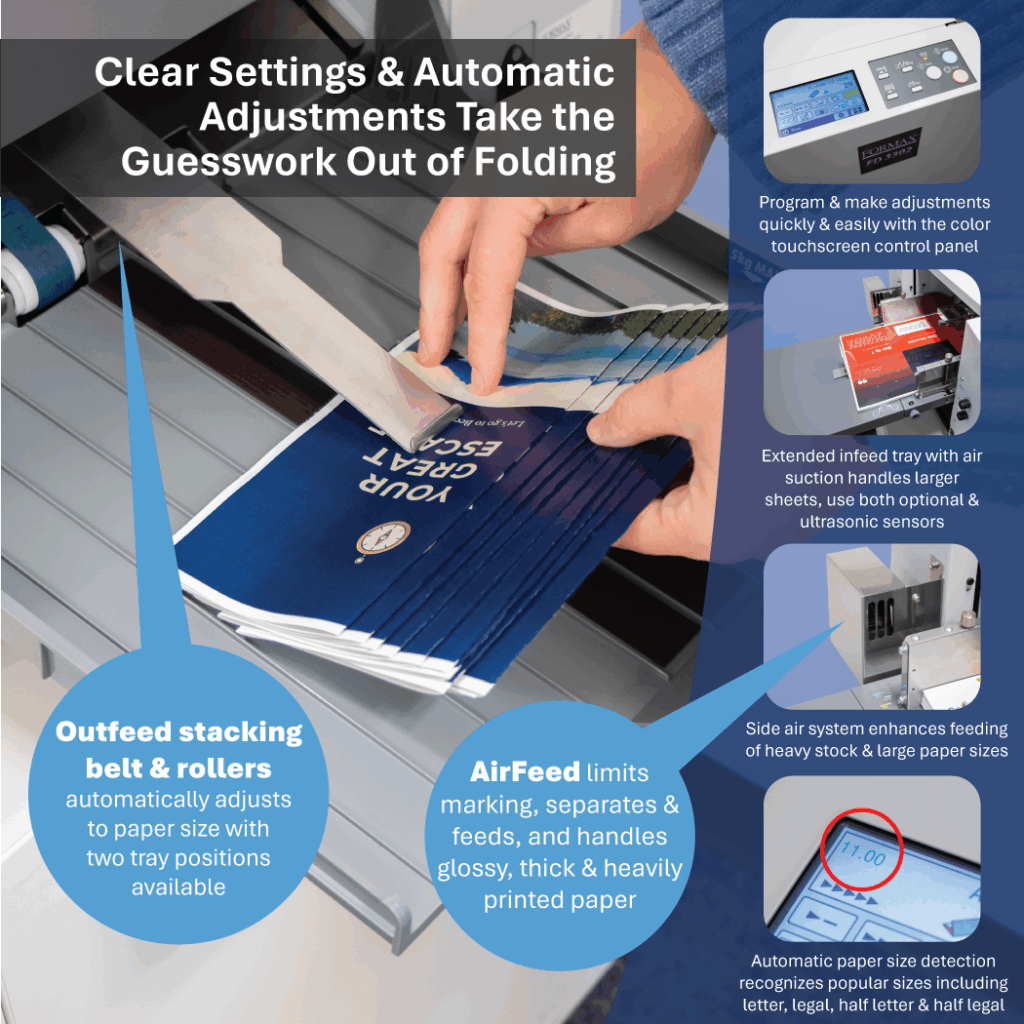

The FD 3302 is designed to handle a variety of paper weights and sizes, up to 25.5" long. User-friendly features include automatic paper size detection and fold plate settings, a color touchscreen control panel, a four-digit counter with batch counting, six pre-programmed fold settings, and the ability to store up to 30 custom folds. The outfeed stacking belt and rollers automatically adjust to paper size, with two tray positions available for neat, organized output.
Recommendation & Warranty
The FD 3302 is ideal for print shops, mailrooms, corporate offices, and any high-volume environment requiring reliable document folding with heavy or coated stock. Its air-suction technology provides superior feeding performance compared to traditional friction-feed folders. Contact your dealer for warranty information on the Formax FD 3302.
Frequently Asked Questions
Q: What is the processing speed of the FD 3302?
A: The FD 3302 processes up to 18,600 sheets per hour based on 11" single fold.
Q: What is the maximum paper length the FD 3302 can handle?
A: The FD 3302 handles sheets up to 25.5" long with its extended infeed tray.
Q: What type of feed system does the FD 3302 use?
A: The FD 3302 uses an air-suction belt feed system that reduces static electricity and minimizes feed marks.
Q: Can the FD 3302 handle coated paper?
A: Yes, the FD 3302 handles coated stock from 73.3 to 157gsm, and up to 230gsm for single fold applications.
Q: How many custom folds can the FD 3302 store?
A: The FD 3302 stores up to 30 custom folds in addition to 6 pre-programmed fold settings.
Q: Does the FD 3302 have automatic paper size detection?
A: Yes, the FD 3302 automatically detects popular paper sizes including letter, legal, half letter, and half legal.
Q: For how long am I entitled to warranty?
A: Contact your dealer for warranty information on the Formax FD 3302.
