Formax  |  SKU: FD 314

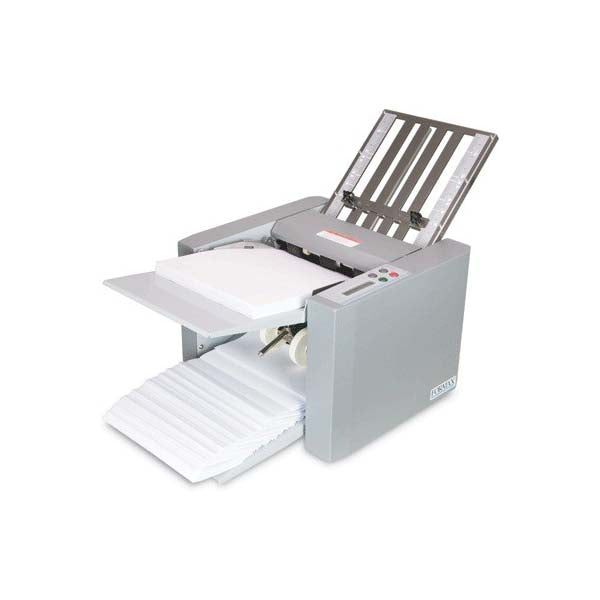

Formax FD 314 Tabletop Document Folder

Manual Set-Up, Auto-Feed, Speed Of 7,700 (Sheets/Hour), Fold 11"x14" Paper Size, 250 Feed Tray Capacity

Spec Sheet: View PDF File

Product Specifications
Product Name Formax FD 314 Tabletop Document Folder
Manufacturer Formax
SKU FD 314
Dimensions (H”xW”xD”) 17 x 14 x 24
Fold Type Z-Fold, Half-Fold, Double Parallel Fold, C-Fold
Paper Weight (Gsm) Up to 30# (112 GSM)
Paper Size (W" x L") 11 x 14
Category Friction-Feed
Type of Folder Auto-Feed, Manual Set-up
Fold Selection Setup Manual
Speed (Sheets/Hour) 7,700
Automated Feed Yes
Warranty 90 day limited warranty on parts, excluding wearable and labor
Country of Origin United States
Power Supply (Volts) 120v, 60 Hz
User Type Large Office
Feed Tray Capacity 250
Product Description:

  • Formax FD 314 desktop folder is a handy and portable paper folder for low-volume operations

  • Easy installation aided by a comprehensive setup manual accompanying the product

  • Works at a superb speed of folding 7,700 sheets per hour

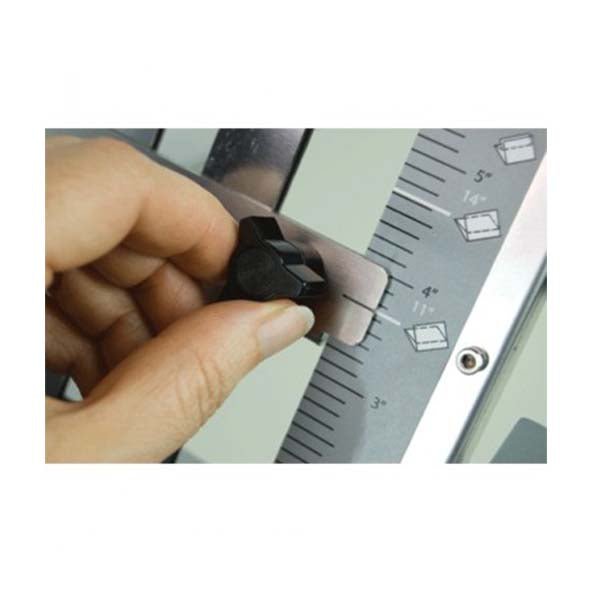

  • Features Pre-Marked scales for the selection of the type of fold desired

  • Capability of turning any non-glossy paper into C, Z, Half and Double Parallel folded styles

  • Can manage papers having maximum dimensions of 11” x 14”

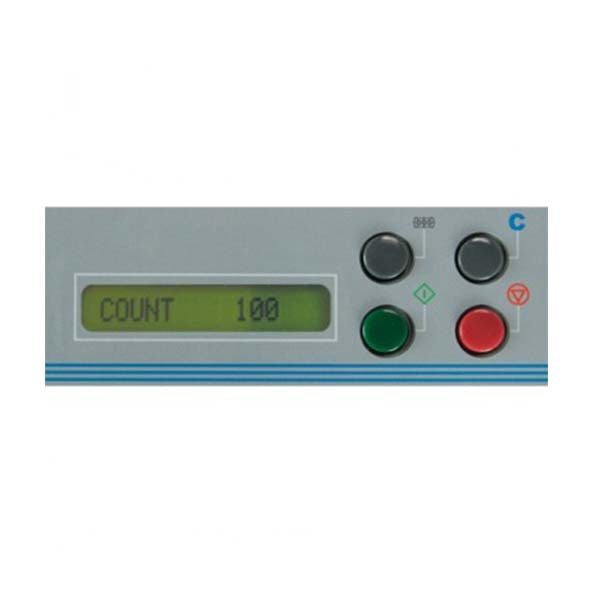

  • LCD control panel with 3-digit resettable counter to monitor the output being received

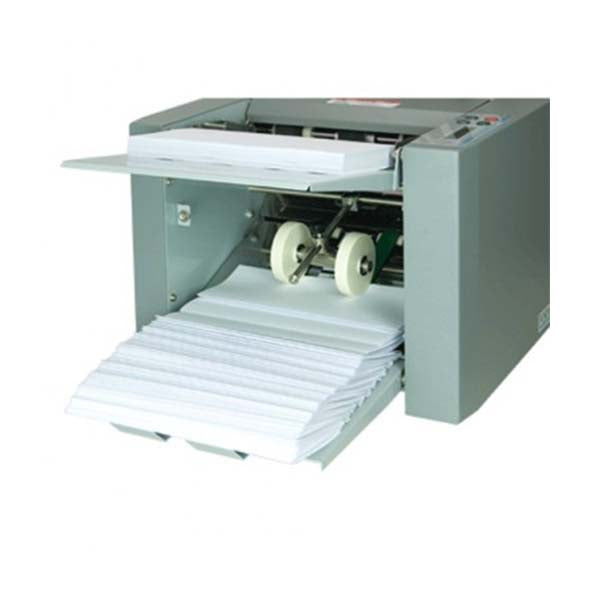

  • Output conveyor that keeps the output in order and easy to handle

  • AutoBatch feature that enables the users to schedule the folding process with appropriate pauses

The Formax FD 314 desktop folder is an amazing new means of making the paper folding job easy and fun. This machine is nothing too complicated to think of. Simply follow the setup manual inside the box and the machine is ready to work on its own for organizing all the papers into neatly folded stacks. FD 314 has pre-marked fold plates that let the users choose between the letter, zig-zag, half and double parallel fold styles before starting the machine. It can accommodate 11” and 14” papers and gives out the output at a speed of 7,700 sheets per hour. Up to 250 sheets can be fed in at a time.

The LCD control panel allows convenient operations and the resettable 3-digit counter helps the users keep a record of the number of papers folded. The outstanding AutoBatch feature offers a smart way to instruct FD 314 paper folder to process a defined number of papers and take pauses where required. Hence folding a paper will never be a trouble as Formax FD 314 is here to save your time and effort!
