Formax Cut True 28A Automatic Programmable Guillotine Paper Cutter
Formax Cut True 28A Automatic Programmable Guillotine Paper Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
Product Name | Formax Cut True 28A Automatic Guillotine Paper Cutter |
Manufacturer | Formax |
SKU | Cut-True 28A |
Cutting Width (inches) | 18.9 |
Maximum Paper Stack Height | 3.15” (80mm) | Length Behind Blade (Inches) | 18.9 |
Narrow Cut (Inches) | 1.37 (35mm) 0.98 | Sheet Capacity | 800 |
Operation | Automatic |
Type of cutter | Floor Stand Guillotine |
Cutting Height (Inches) | 3.15 |
Blade Drive | Electric |
Paper Clamp | Automatic |
Back Gauge Adjustment | Fully programmable using screen |
Cutting Action | Dual-button electric |
Dimensions (H”xW”xD”) | 60” H x 36” W x 40” D (1520 x 920 x 1010mm) | Warranty | 90 days limited warranty |
Country of Origin | United States |
Power Supply (Volts) | 220V, 60Hz, 20A dedicated line, NEMA 6-20P |
User Type | Commercial |
Optional Accessories | Wide Side Tables (Pair), Replacement Blade (29-10), Replacement Cutting Sticks, pkg of 8 (29-20) |
Applications | Print Shops, In-Plant Finishing Operations |
Cutting Material | Paper |
LED Laser Cut Line | Yes |
Safety Feature | Infrared Light beam safety curtain, shuts down operation if the plane is interrupted |
Product Description:
- Cuts up to 18.9" wide
- Programmable 99 jobs, 30 cuts each
- Automatic back gauge

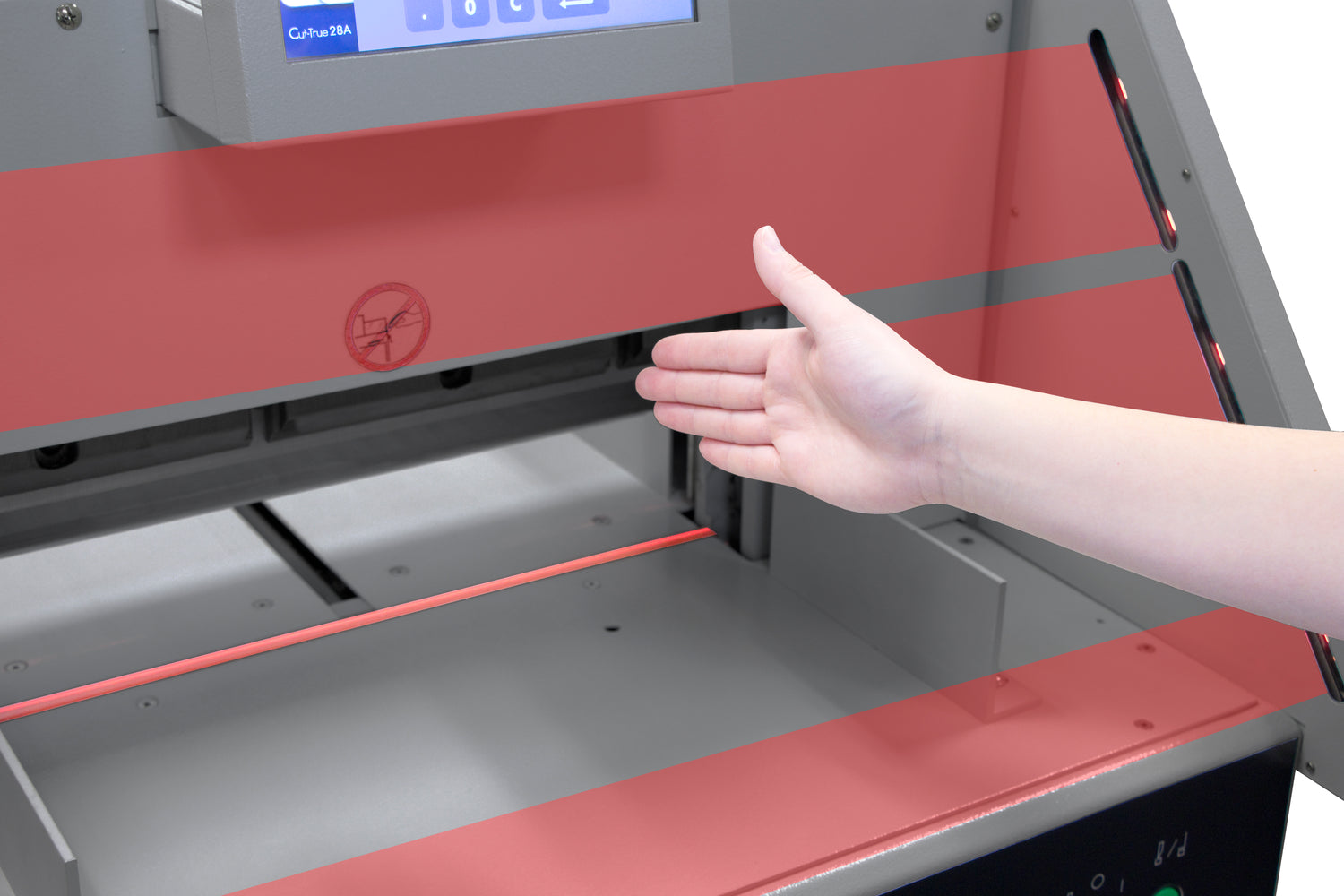

- Infrared safety curtain

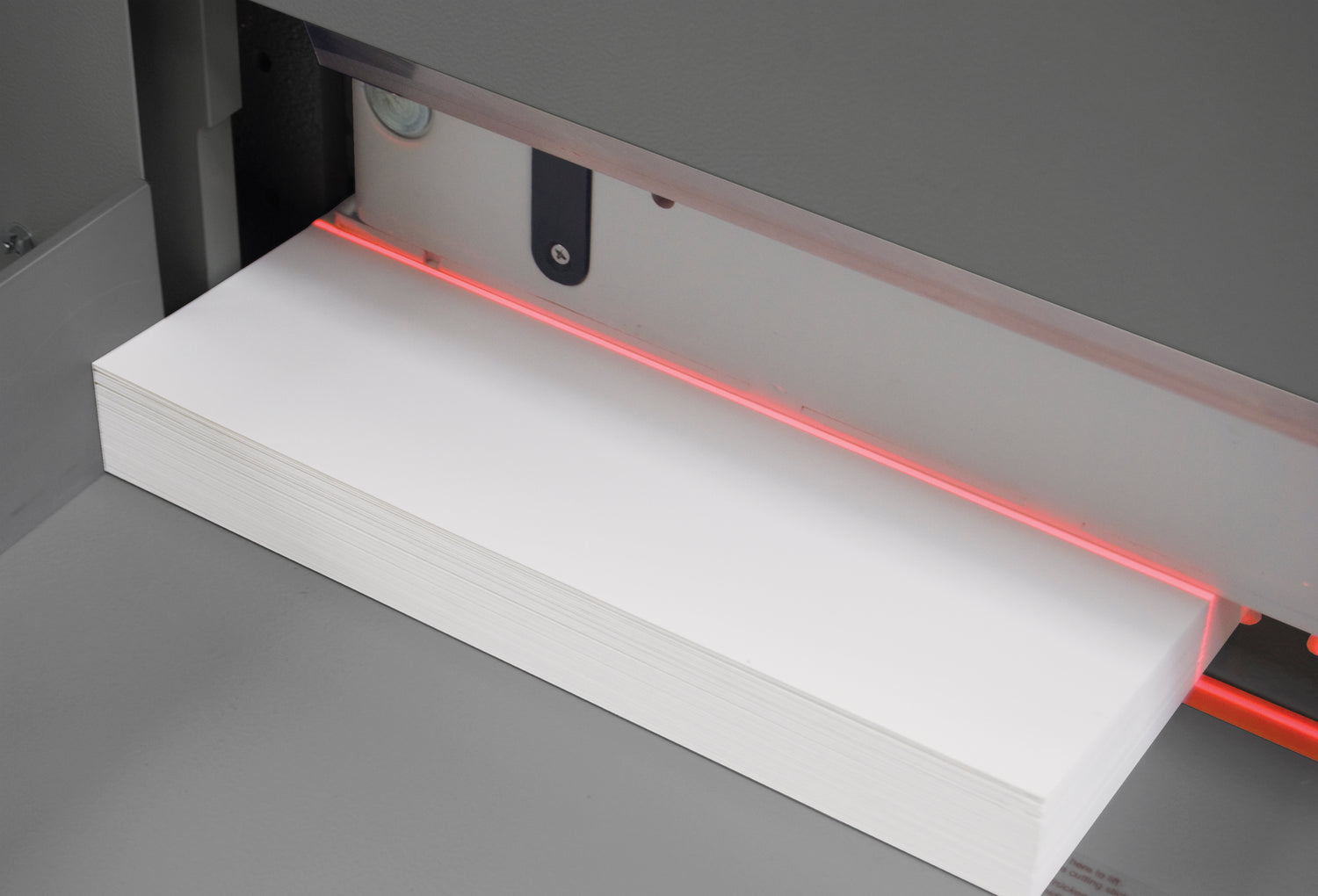

- LED cutting line

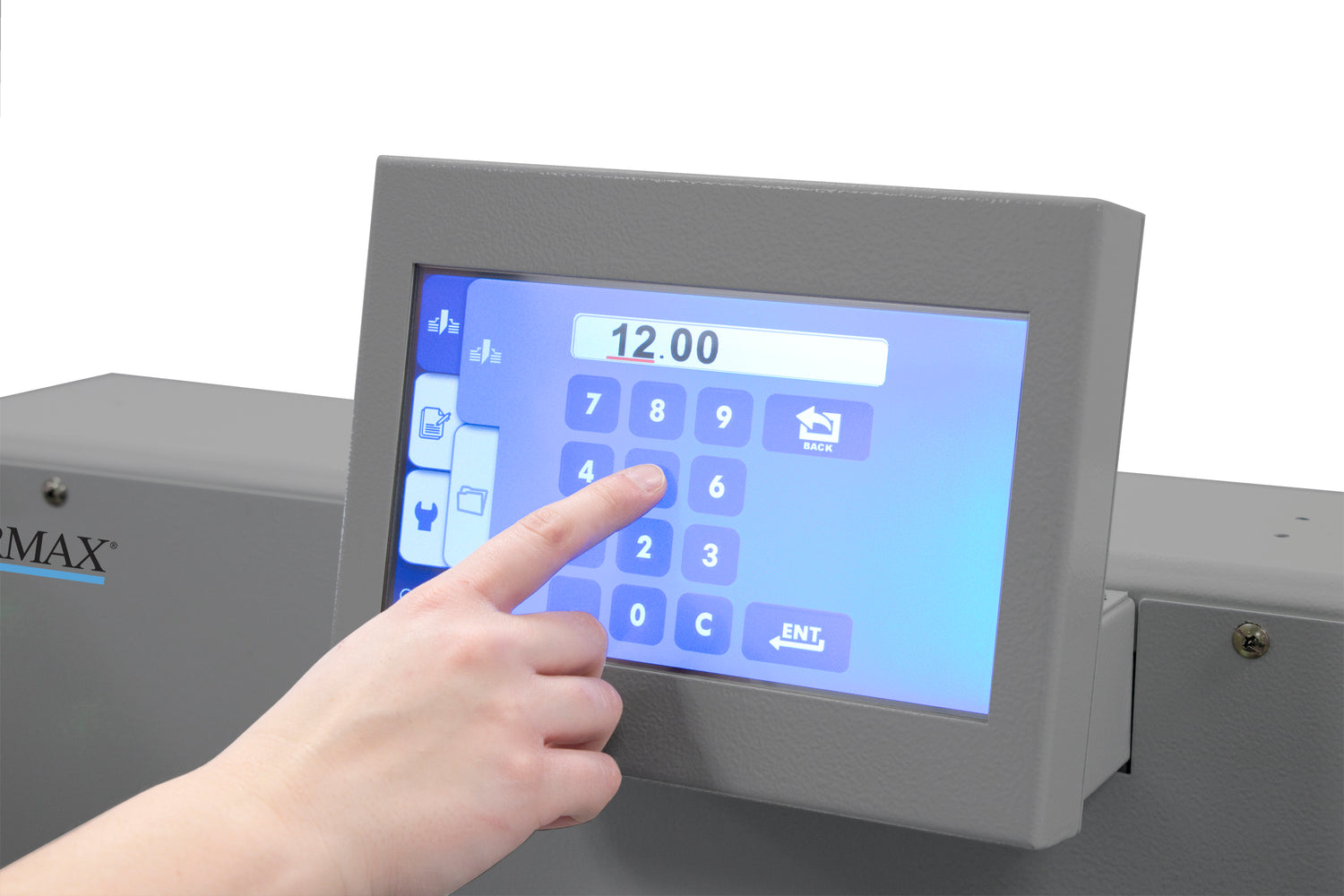

- Touchscreen control panel

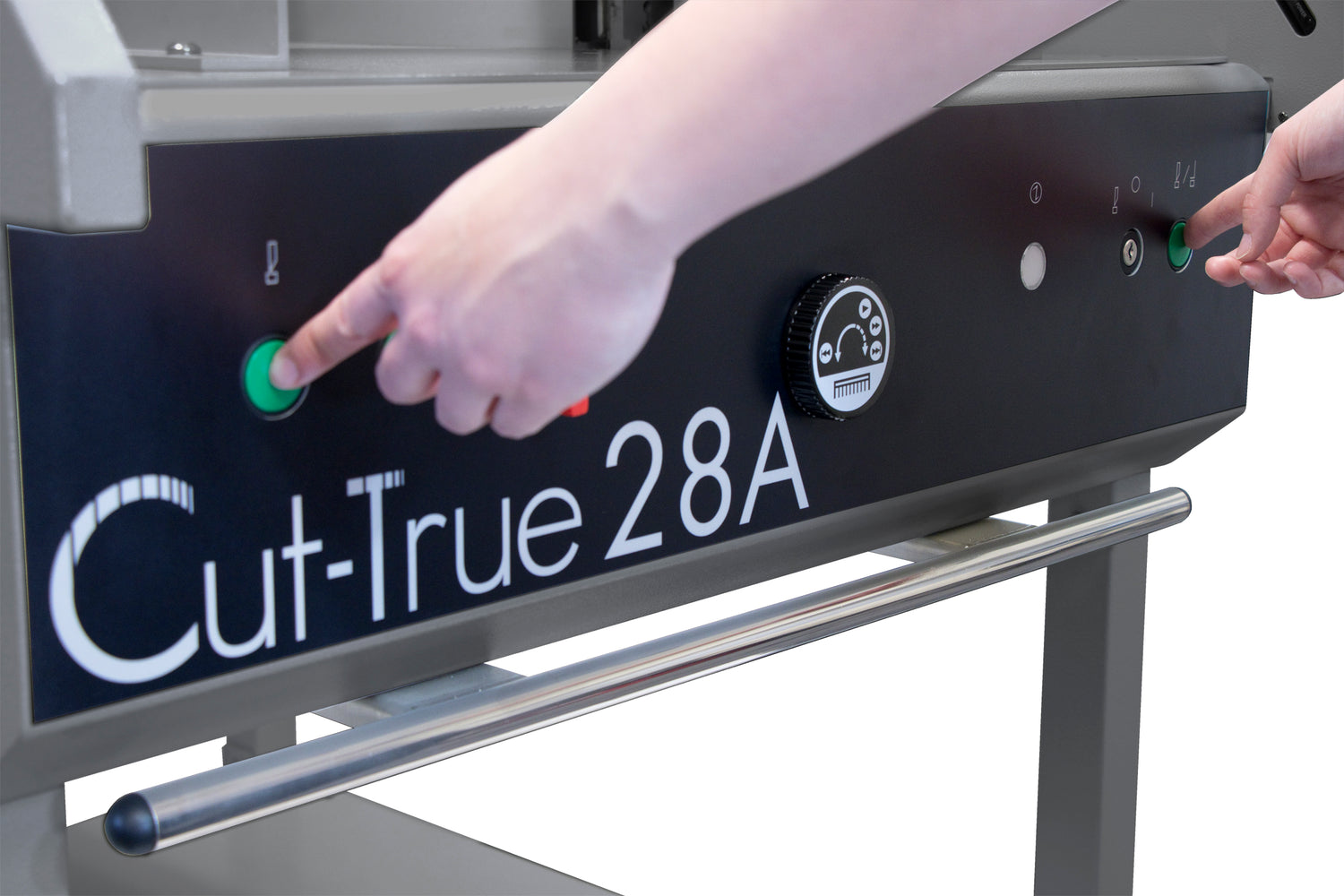

- Two-hand operation with safeguards

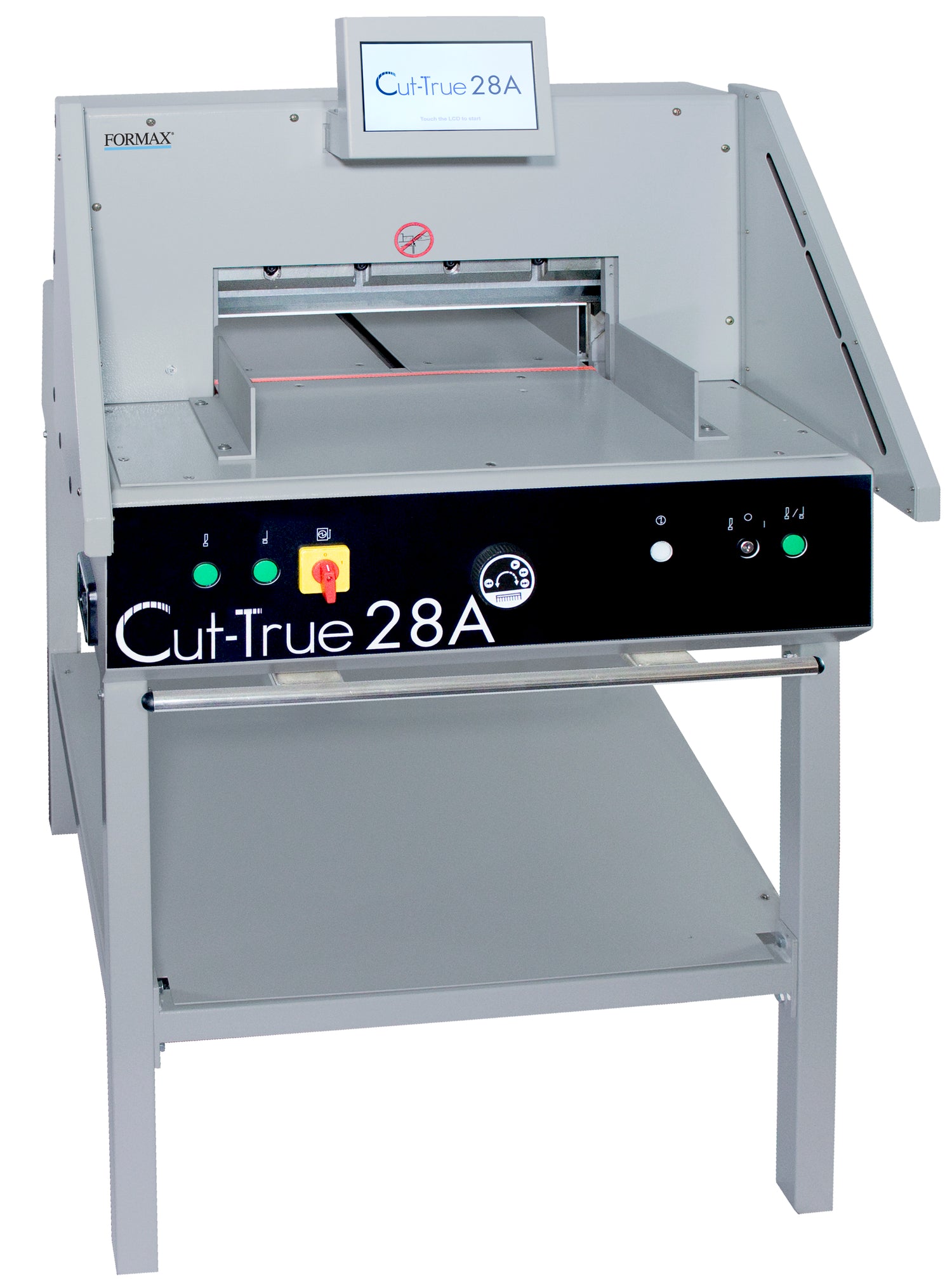

The Formax Cut-True 28A Electric Guillotine Paper Cutter is designed for precision cutting in professional print finishing environments. It can handle paper stacks up to 18.9 inches wide and is equipped with a hardened steel blade for reliable results. The programmable touchscreen allows up to 99 jobs with 30 cuts each, supported by an automatic back gauge for repeatable accuracy.

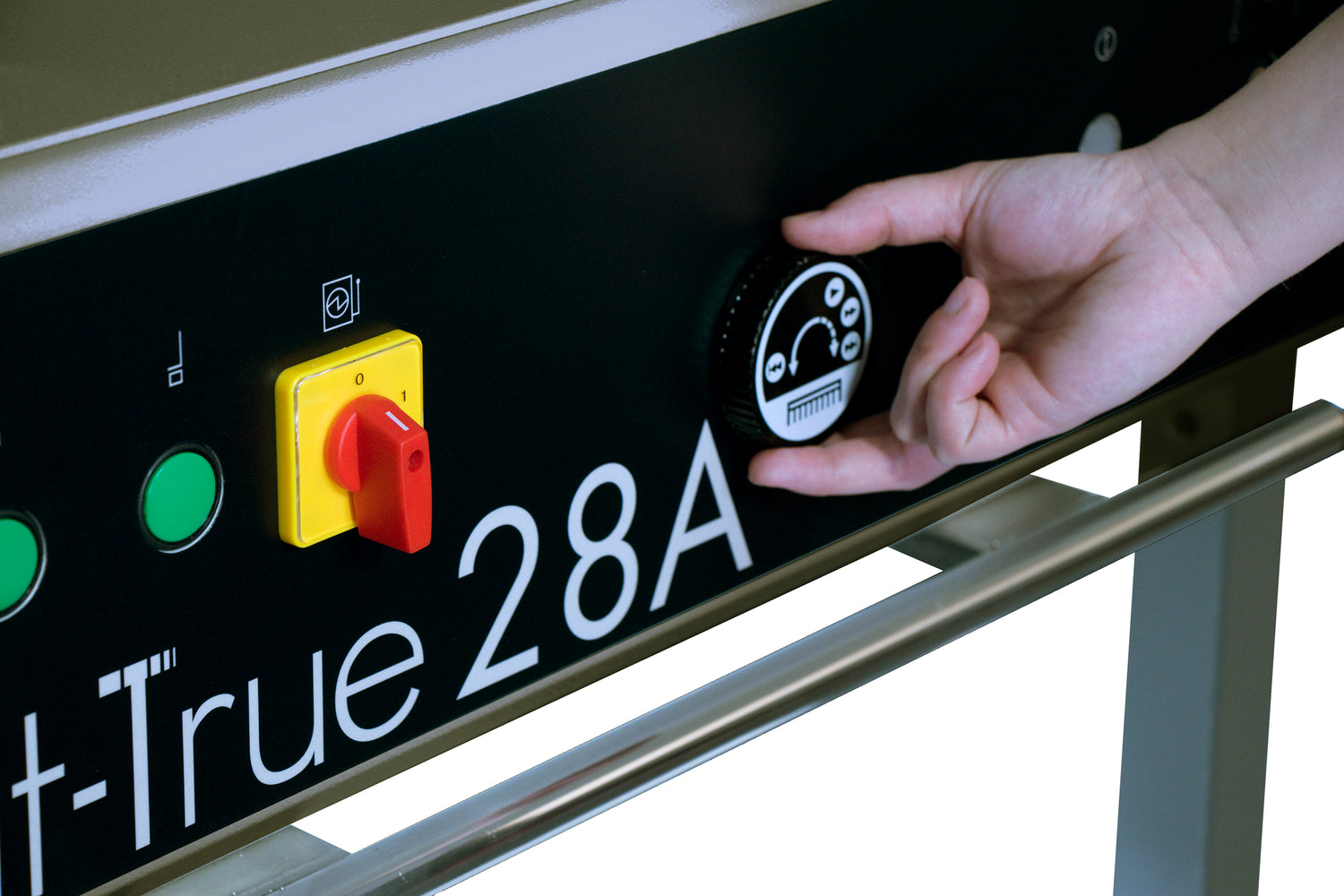

User safety and convenience are central to the 28A’s design, featuring an infrared light beam curtain, two-hand operation, and automatic blade return. The LED cutting line and electronic fine-adjustment knob enhance accuracy, while safeguards such as a key lock, blade lock, and built-in blade change tool provide secure operation. With robust construction and versatile features, the 28A is ideal for producing brochures, invitations, and other high-quality printed materials.
