Formax Coil100 Electric Coil Binding & Crimping Machine
Formax Coil100 Electric Coil Binding & Crimping Machine is backordered and will ship as soon as it is back in stock.
Formax Coil100 Electric Coil Binding & Crimping Machine
Formax Coil100 Electric Coil Binding & Crimping Machine is backordered and will ship as soon as it is back in stock.
Spec Sheet: View PDF File
Product Specifications
| Binding Operation | Electric insert, manual crimp & cut |
| Pitch | 0.25 inch (6mm) |
| Binding Thickness | 0.04 inch - 0.62 inch (1 - 16mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 13.4 inches (340mm) |
| Coil Diameter | 1/4 inch - 3/4 inch (6 - 20mm) |
| Binding Speed | Up to 80 booklets/hr |

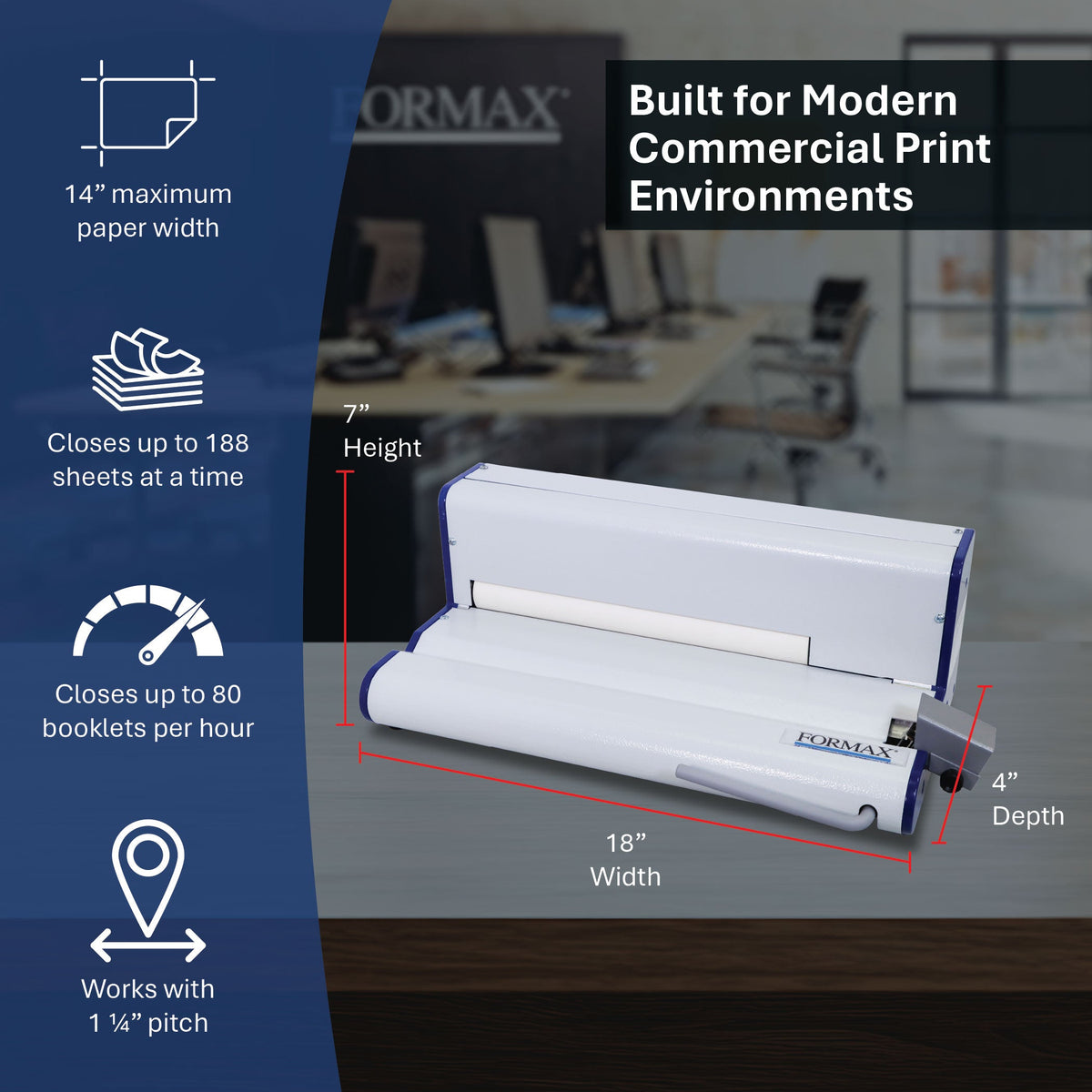

| Dimensions | 17.7 x 4 x 6.3 inches (450 x 100 x 160mm) |
| Weight | 21 lbs (9.5kg) |
| Power | 115V, 60Hz, 90W |
Product Description:

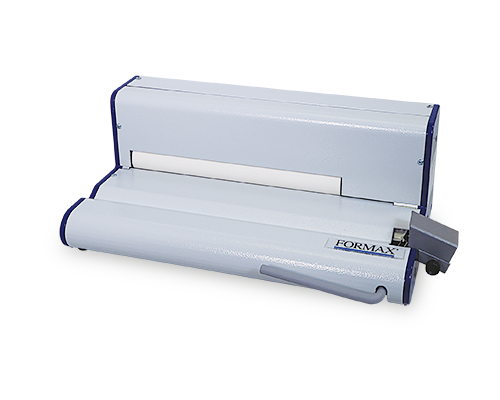

The Formax Coil100 Electric Coil Binding and Crimping Machine threads spiral plastic coil through punched documents using an electric rubber roller. It works independently or attaches to the Formax Punch100 Electric Punch for combined punching and binding.
Key Features:
- Bind up to 80 booklets per hour with electric coil insertion.
- Accommodate documents up to 13.4 inches wide.
- Use coil diameters from 1/4 inch to 3/4 inch (6 to 20 mm).
- Trim and secure coil ends with the integrated cutting unit and 45-degree crimp.

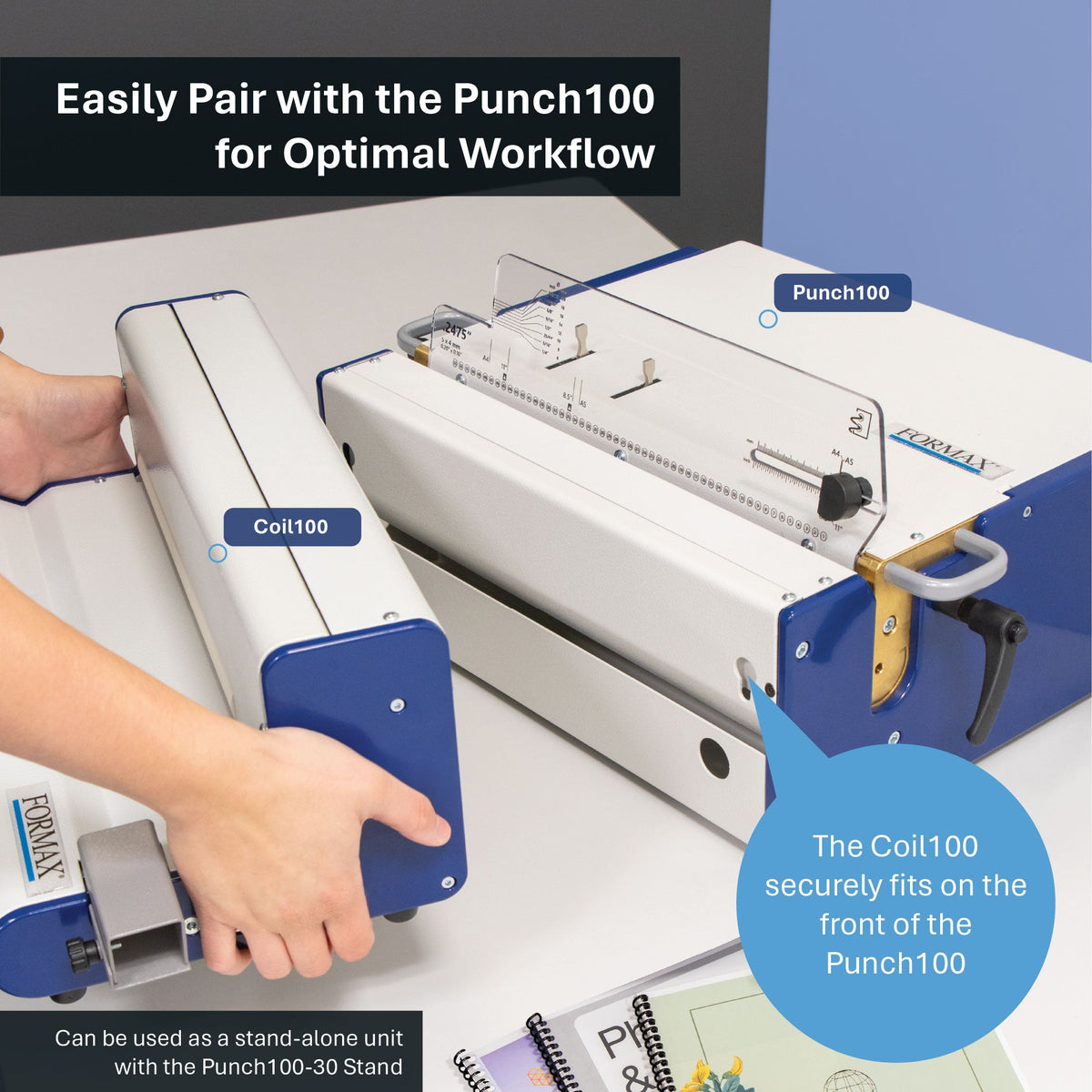

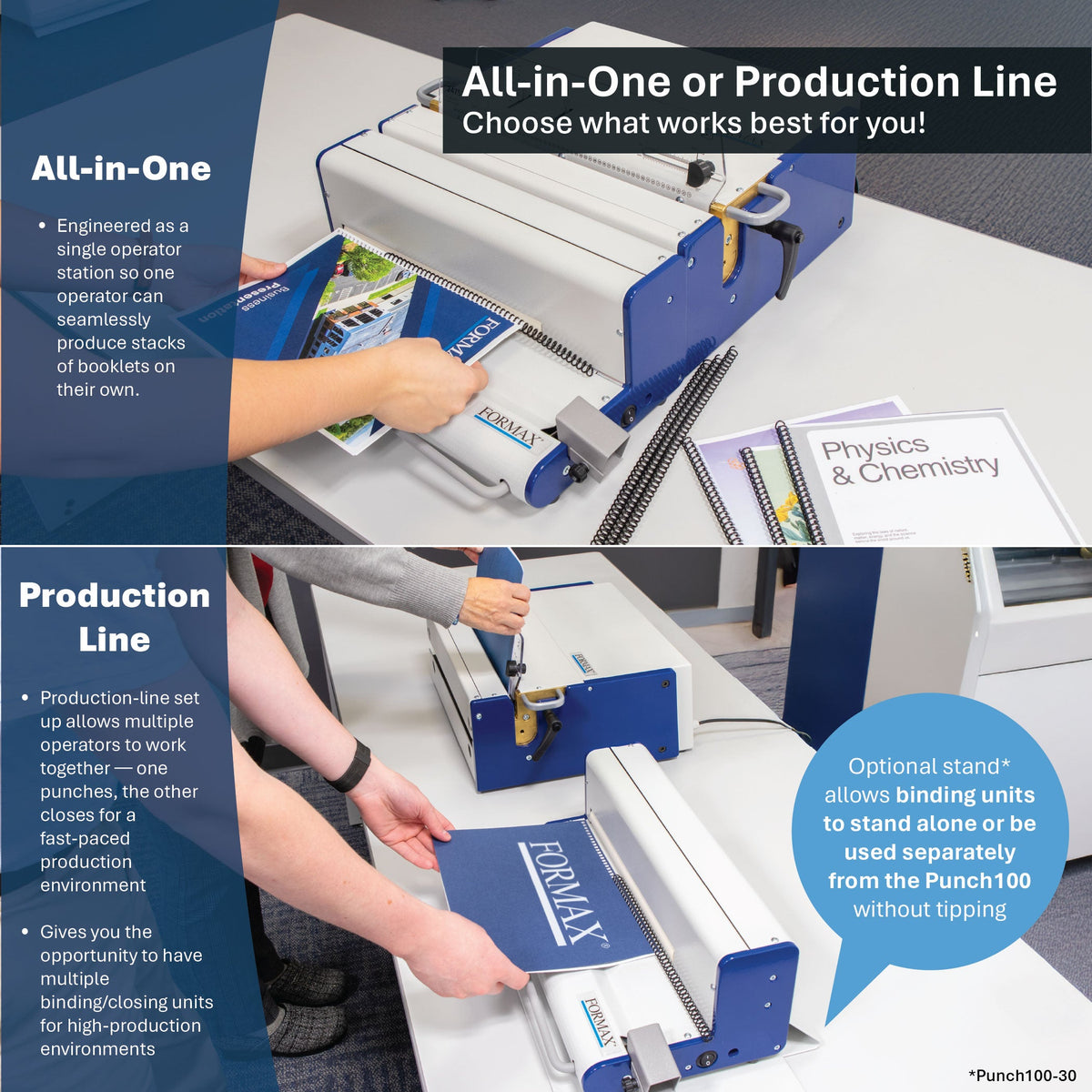

The Coil100’s all-metal construction and quiet operation support regular use, while an automatic roller stop supports operator safety. Integrated mounting pins connect it to the Punch100, and the optional Punch100-30 support stand allows independent use. It suits offices preparing reports, manuals, and presentations that lie flat or fold back for reading and reference.
Video of Formax Coil100 Electric Coil Binding & Crimping Machine
