Formax  |  SKU: FD 2300-EXT*

Formax AutoSeal FD 2300-EX Pressure Sealer

$125,180.39 $143,957.45
Commercial High Volume Tabletop Pressure Sealer with 40,000 Sheet Capacity, 11.5"x 14" Max Paper Size and 1000 (Sheets) Hopper Capacity

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Product Name Formax AutoSeal FD 2300-EX Pressure Sealer
Manufacturer Formax
SKU FD 2300-EXT*
Dimensions (H”xW”xD”) 56” H x 30” W x 152” D
Hopper Capacity (sheets) 1000
Max. Paper Weight (lbs.) 24
Type of Pressure Sealer High-Volume Production Pressure Sealer
Function Seal, Fold
Fold Type Half, Custom Folds, Z, C, Uneven Z
Optional Accessories V-STACK36 Vertical Stacker, Center Slitter & Two-Up Form Kit
Applications Paychecks, Invoices, Tax Forms, Medical Reports, Bills, Coupons & Notices
Anti-Jam System No
Warranty 90 day parts and labor
Country of Origin United States
Power Supply (Volts) 208V, three phase
User Type Commercial
Sheet Capacity (sheets/hour) 43000
Operation Type Automatic
Additional Features Color Touchscreen Control Panel, Integrated Output Conveyor and Interlocks
Product Description:

Features of Formax FD 2300-EX Pressure Sealer

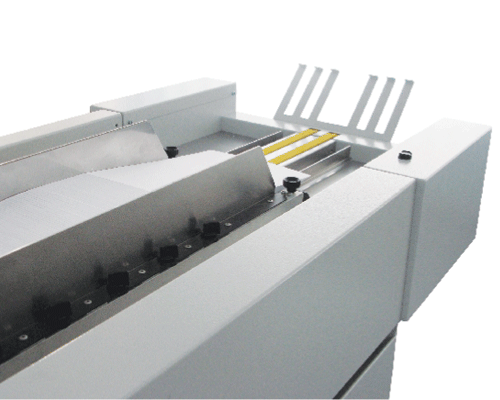

  • Compatible to seal and fold highest volume with extended air feed system
  • Graphic based color touchscreen control for interactive and easy use
  • Fast speed of processing 14” long 43000 forms in an hour
  • Capable of programming up to 200 jobs and storing as well
  • Resettable counter and batch counters for full audit control
  • Supported paper size up to 11.5” W x 14” L (292 W x 356 L mm)
  • Pre set 20 standard folds in the device for easy and quick use
  • Fold types of Z, uneven Z, C, Half and custom fold supported
  • Processes forms like checks, invoices, school reports, tax forms, appointment notices, PIN notices and a variety of direct marketing pieces
Performance of Formax FD 2300-EX Pressure Sealer

FD 2300-EX is another top-notch addition to the 2300 series that offers an extended air feed system. This pressure sealer allows to reach the capacity of 1000 forms of 11.5” wide and 25” long forms at once. This user-friendly device is installed with graphic based color touch screen that enables easy use to for the operator. Formax FD 2300-EX has the ability to up to 43000 to 45000 forms in an hour with ease and effectiveness. This fully automated machine is inclusive of variety of features that make the operations easy like alignment rails, fold plate stops, deflectors, fold rollers, delivery rollers.

The 2300-EX has the ability to process any kind of high capacity processing forms like checks, invoices, school reports, tax forms, appointment notices, PIN notices and a variety marketing piece. The fold plates installed have pre marked 20 standard folds that provides quick and easy application. The fold types supported are Z, uneven Z, C, half and custom folds. The 2300-EX has the ability to program up to 200 jobs, conveyer with photo for neat stacking, interlocks for fault detection, insulated fold plate for noise less operations and combination rollers for durability.

Recommendation & Warranty

These highly effective and durable pressure sealers come with a 90-day warranty of parts and labor excluding wearables. This FD 2300-EX pressure sealer can produce high volume forms and deliver you a secure product that is ready for mail. This is ideal for fast and accurate folds for a large workplace with heavy duty sealing.

Frequently Asked Questions

Q: What are the sizes of the pre-marked standard folds for sealing?

A: The standard folds for FD 2300 can be 11.5” wide and 25” long form sizes and can easily be adjusted for custom as well.

Q: What is the difference in all of the 2300 series products?

A: The difference in the products of the 2300 series each product has a different feed system and hopper capacity.

Q: What does the photo eye do with the 2300 series?

A: The photo eye with the conveyor allows for neat and sequential stacking of processed forms.

Q: For how long am I entitled to warranty?

A: Formax 2300 series comes with a 90-day warranty on parts and labor excluding wearables.

Video of Formax AutoSeal FD 2300-EX Pressure Sealer
