Formax  |  SKU: FD 1406

Formax AutoSeal FD 1406 Pressure Sealer

$4,548.00 $5,150.00
Tabletop One Piece Pressure Sealer with 4,380/hr Sheet Capacity, with Hopper Capacity of 160 Forms and Color Touchscreen Control Panel

Spec Sheet: View PDF File

User Manual: View PDF File

Product Specifications
Function Seal, Fold
Hopper Capacity Up to 160 Sheets
Fixed Speed Up to 73 sheets/min
Max. Paper Weight 20 lbs.
Paper Size Up to 8.5’’ W x 14” L
Monthly Duty Cycle Up to 30,000/month
Power 120 Volts AC 50/60Hz
Dimensions 24” L x 17” W x 13” H
Weight 81 lbs
Warranty 90-day factory warranty
Certifications UL, CE and CUL Approved
Product Description:

Features of the Formax FD 1406 Pressure Sealer
  • Processes up to 73 forms per minute for efficient low-volume document sealing
  • Handles one-piece pressure seal forms up to 14 inches in length

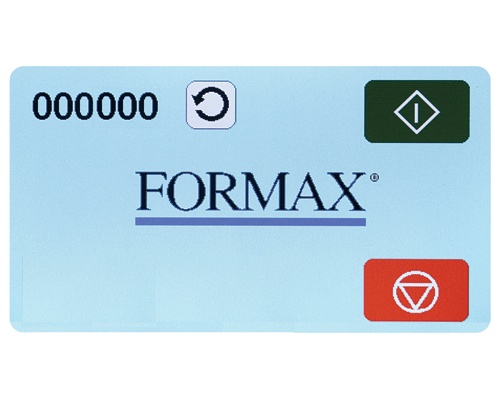

  • Color touchscreen control panel with intuitive, symbol-based interface for easy operation
  • Supports multiple fold types including Z, C, uneven Z, uneven C, half, and custom folds
  • Drop-in top feed system with three rollers ensures smooth and reliable paper feeding
  • Pre-marked and adjustable fold plates allow quick setup and accurate fold positioning
  • Integrated six-digit resettable counter for precise job tracking and audit control
  • Compact desktop design with durable construction suitable for office environments
Performance of the Formax FD 1406 Pressure Sealer

The Formax FD 1406 Pressure Sealer is designed as a reliable solution for low to mid-volume pressure seal applications, delivering consistent performance for everyday business documents. Capable of processing up to 73 forms per minute, the system efficiently handles one-piece mailers such as checks, invoices, tax forms, and notices. Equipped with a drop-in feed system and three-roller configuration, the Formax FD 1406 Pressure Sealer ensures smooth document handling and consistent sealing quality. Its ability to process forms up to 14 inches in length provides flexibility for a range of mailing formats.

Backed with a color touchscreen control panel and pre-marked fold plates, the Formax FD 1406 Pressure Sealer offers simple setup and user-friendly operation with minimal adjustments required. The unit supports a variety of fold types, allowing operators to easily switch between common and custom configurations. The integrated resettable counter enhances workflow tracking and audit control, while the compact desktop design fits easily into office environments. Designed for dependable operation and ease of use, the Formax FD 1406 Pressure Sealer provides consistent, professional-quality document sealing.

Frequently Asked Questions

Q: What are the sizes of the pre-marked standard folds for sealing?

A: The standard folds for FD 1406 is for 11” and 14” form sizes and can easily be adjusted for custom as well.

Q: What is the hopper capacity of the Formax FD 1406?

A: The hopper capacity of this pressure sealer is up to 160 forms, 20#.

Q: What is the difference between the FD 1402 and 1406?

A: The Formax FD 1406 is the replacement of the FD 1402 and is one of the firsts in industry with color touch screen control panel.

Q: For how long am I entitled to warranty?

A: Formax FD 1406 comes with a 90-day warranty on parts excluding wearables.

Video of Formax AutoSeal FD 1406 Pressure Sealer
