Formax 7700 Series Modular Inserters
Formax 7700 Series Modular Inserters - FD 7700-Base13 Inserter Base w/5K Speed License, 8K Accumulator Speed License, Conveyor, Cabinet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax 7700 Series Modular Inserters
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| System Speed | 7,000 envelopes/hour |
| Accumulation Speed | 14,000 Sheets/hour |
| Document Feeder Capacity | Up to 2,000 sheets |
| Duty Cycle | Up to 300,000 pieces per month |
| Tower Feeder Sheet Size | Up to 16” L portrait feed (folding), 8.5” L landscape feed (no folding), Up to 8.5” W portrait feeding (folding), 12” W landscape feed (no folding) |
| High-Capacity Insert Feeder | Up to 250 sheets 20# (80gsm), Up to 1/4” (6mm) booklets |
| Envelope Feeder | Top-loading, up to 800 #10 envelopes or 500 10” x 13” flats (landscape) |
| Envelope Size | 3.9” - 10” H x 8.9” - 13” W* (99 - 254 x 226 - 330mm) |
| Max Set/Insert Thickness | Up to 80 sheets, up to 3/8” (10mm) |
| Max Sheet Thickness | Up to 200gsm |
| Code Reading | OMR, BCR, 2D Data Matrix, QR, barcodes on reverse of document |
| Voltage | 110V, 60Hz, 10Amp |
| Safety Certifications | UL, CE, FCC certified |
Product Description:
- Modular, customizable design
- Up to 7,000 envelopes per hour
- Folds up to 8 sheets
- OMR, BCR, 2D, QR reading

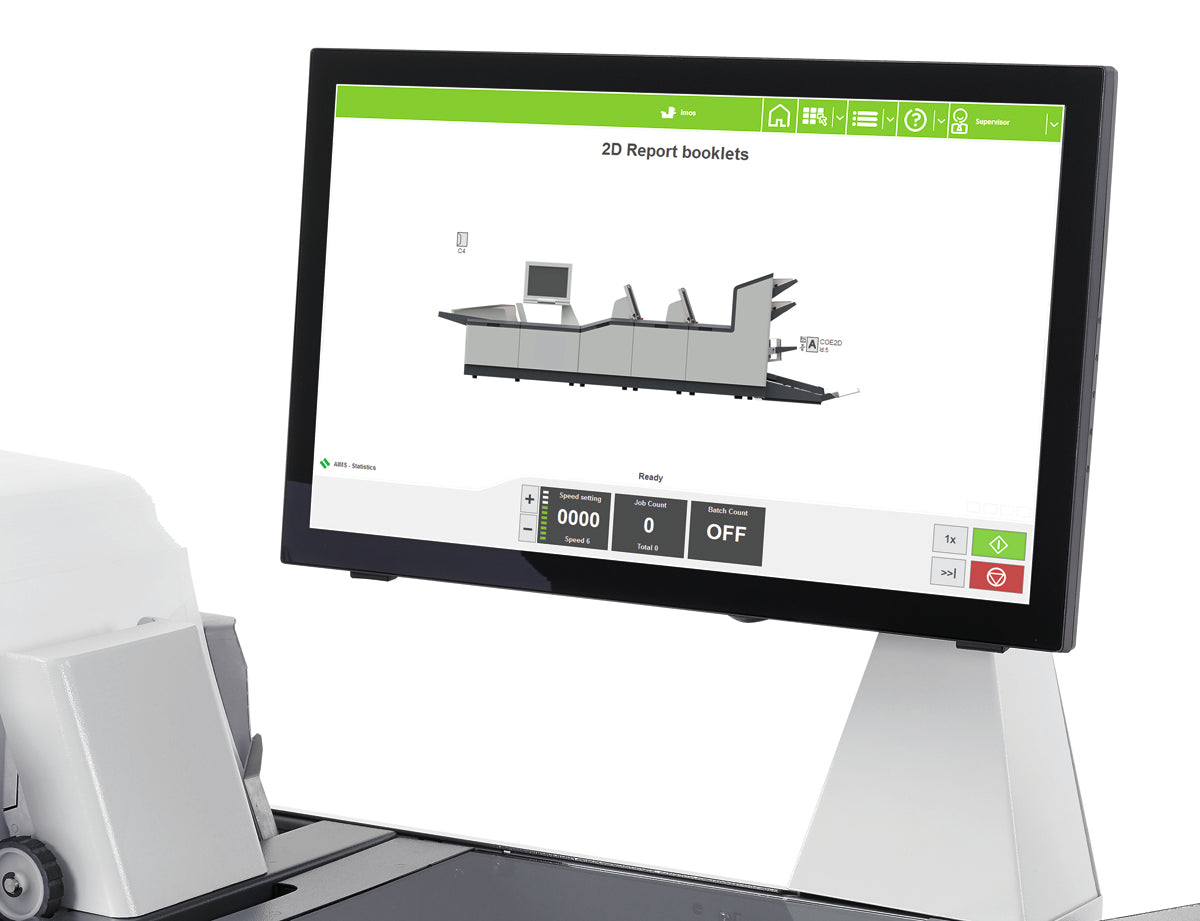

- 22" color touchscreen
- High-capacity feeders and conveyors
- Thick Set: up to 80 sheets or 10 mm
The Formax 7700 Series Modular Inserters optimize high-volume mailing with a configurable platform that fits complex applications. Each system can be tailored to direct mail, statements, and sensitive correspondence while maintaining precision and security. Intelligent code reading and robust materials handling help teams meet strict accuracy and productivity targets.
Operators work quickly using a 22-inch color touchscreen that simplifies setup and monitoring for repeatable jobs. The system processes up to 7,000 envelopes per hour and folds up to eight sheets, with high-capacity feeders and conveyors to reduce downtime. Landscape orientation processing and dual-side barcode reading further increase speed and integrity for both standard envelopes and large flats.
