Formax  |  SKU: FD 4040

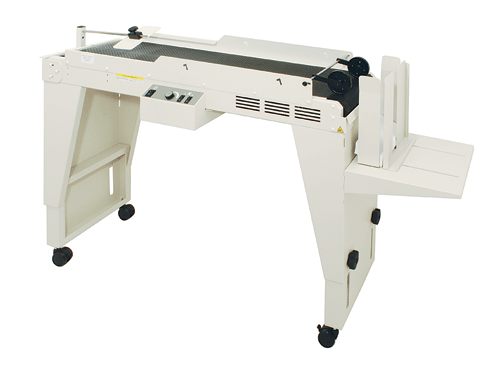

Formax 4040 Bi-Directional Drop-Stacking Conveyor

$4,390.00 $5,048.50
Processing speed of 30-350 feet per minute, 4" conveyor, and reversible for bi-directional transport.

User Manual: View PDF File

Product Specifications
Product Name Formax 4040 Bi-Directional Drop-Stacking Conveyor
Manufacturer Formax
SKU FD 4040
Speed (feet/min) 350
Internal Vacuum Fans (feet/min) 170
Common Applications Medium to high-speed inkjet addressing systems
Dimensions (H”xW”xD”) 35.5” H x 16.5” W x 66.5” D
Conveyor Height (inch) 28”-35”
Media Size (L") 13.5” W x 15” L
Added Features Bi-Directional: Patent Pending Control Panel, Internal Vacuum Fans
Drop Stack Capacity 5” - 11”
Power Supply (Volts) 105/120 VAC, 50/60 Hz
Warranty 90 day parts and labor
Product Description:

Features of Formax FD 4040 Drop Stacking Conveyor
  • Processing speed of 30 – 350 feet (9 - 106m) per minute
  • Formax FD 4040 Bi-Directional has a control panel module enabling it to rotate 180° to allow right to left and vice versa.
  • Common Applications is a medium to high-speed ink-jet addressing system applied.
  • Its weight is 130 lbs. (59 kg) with power of 105/120 VAC, 50/60 Hz.
  • Formax FD 4040 has adjustable height from 28” -35” H (71 -89 H cm) and 9 – 106m (30 -350 feet) per minute speed.
  • The internal vacuum has tube-axial fans of 170 cubic feet/min that pulls media down the belt.
  • 12’ W (30.5 W cm) perforated belt of this model allows vacuum at in-feed.
  • The drop stack capacity of Formax FD 4040 is adjustable from 12.7 to 28 cm (5” -11”)
  • The media size is maximum up to 13.5” W by 15” L (342 W by 381 L mm)
  • The configuration is straight-on or right-angle orientation to printer
Performance of Formax FD 4040 Drop Stacking Conveyor

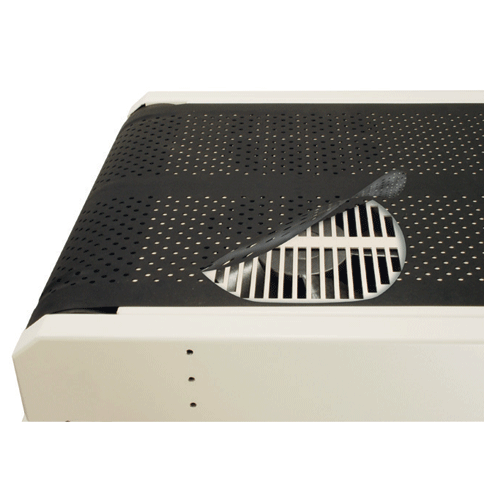

The Formax FD 4040 bi-directional drop- stacking conveyor is usually in line with several brands which support inkjet addressing systems enabling it to deliver high quality imaging at affordable prices. It saves time and increases efficiency by utilizing internal vacuum fans at infeed which has a high speed up to 350 feet/minute to transport material. These dual high-suction internal vacuum fans pull media down towards the conveyor as they are located under the perforated belt.

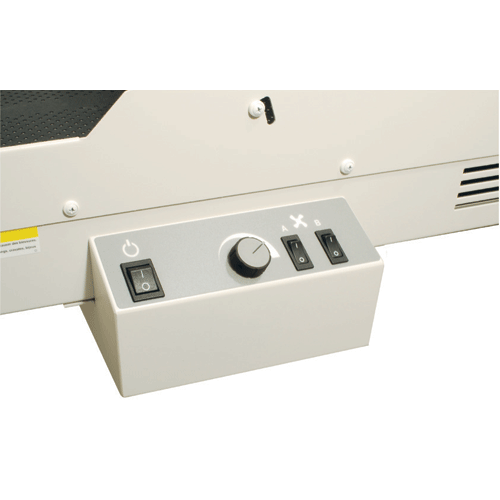

A patent pending reversible control panel module is installed in Formax FD 4040 bi-directional drop stacking conveyor which allows it to be rotated 180° from left to right and right to left transporting material. Hence, offering greater flexibility than before in the workflow and in equipment conformation.

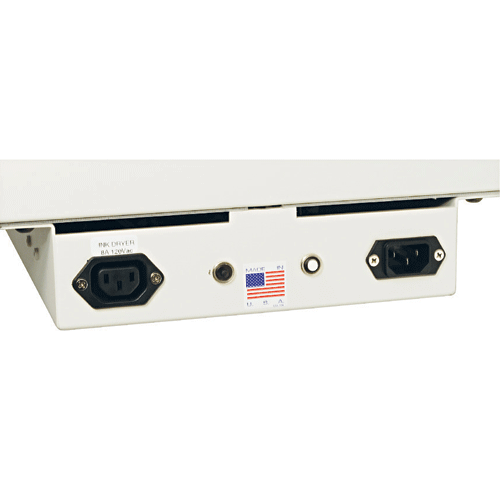

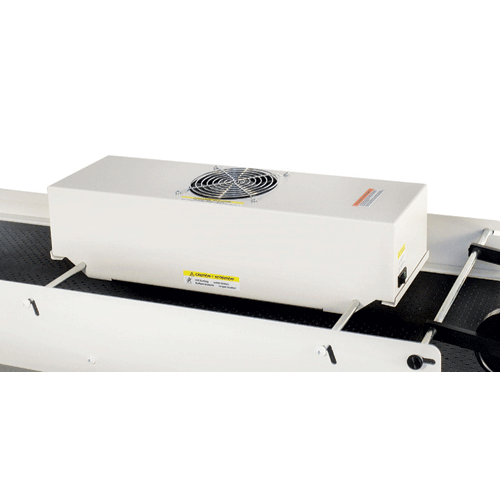

Formax FD 4040 bi-directional drop-stacking conveyor is a convenient and safe power for any optional infrared dryer as IEC receptacles are incorporated into the control panel. The legs of the equipment can even be adjustable up to 35” height along with the drop stack height which can be adjusted from about 5” to 11”, and every Formax FD is proudly produced in USA.

Recommendation and Warranty

Formax FD 4040 bi-directional drop stacking conveyor is an ideal model which comes with up to 90-day warranty on each part and customer care specifically trained to satisfy customers. This will ensure easy and flexible use of equipment speeding up work at office.

Frequently Asked Questions

Q: For how long am i entitled to warranty?

A: The Formax drop stacking conveyor comes with a 90 day parts and labor warranty.

Q: How do we configure the Fd 4040/4060 with the printer?

A: The Formax FD 4040/4060 is configured right angle orientation to printer.

Q: What width does the belt allow for vacuum infeed?

A: Single 12” W (30.5 W cm) perforated belt allows vacuum at infeed.

Q: What does Bi-Directional mean?

A: Bi-Directional means that the patent pending control panel module can be rotated 180 degrees.
