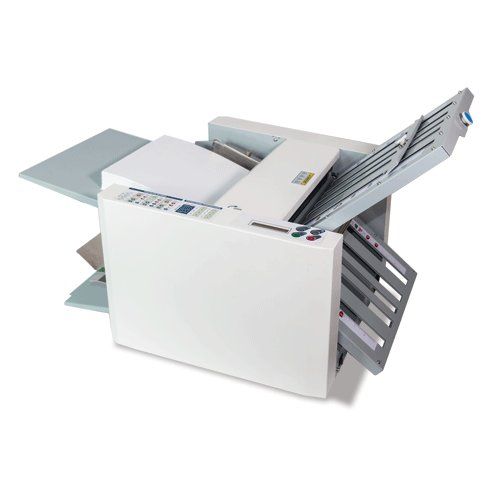

Formax FD 324 Tabletop Document Folder
Manual Set-Up, Auto-Feed, Speed Of 8,600 (Sheets/Hour), Paper Size, 500 Feed Tray Capacity
Formax FD 324 Tabletop Document Folder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Formax FD 324 Tabletop Document Folder
Product Specifications
| Manufacturer | Formax |
| Speed | 8600 sheets/hour |
| Feed Tray Capacity | 500 |
| Paper Weight (Gsm) | 112 |
| Paper Sizes | Min: 4” W x 5” L Max: 12” W x 18” L |
| Fold Type | Letter Fold, Z-Fold, Half-Fold, Double Parallel Fold |

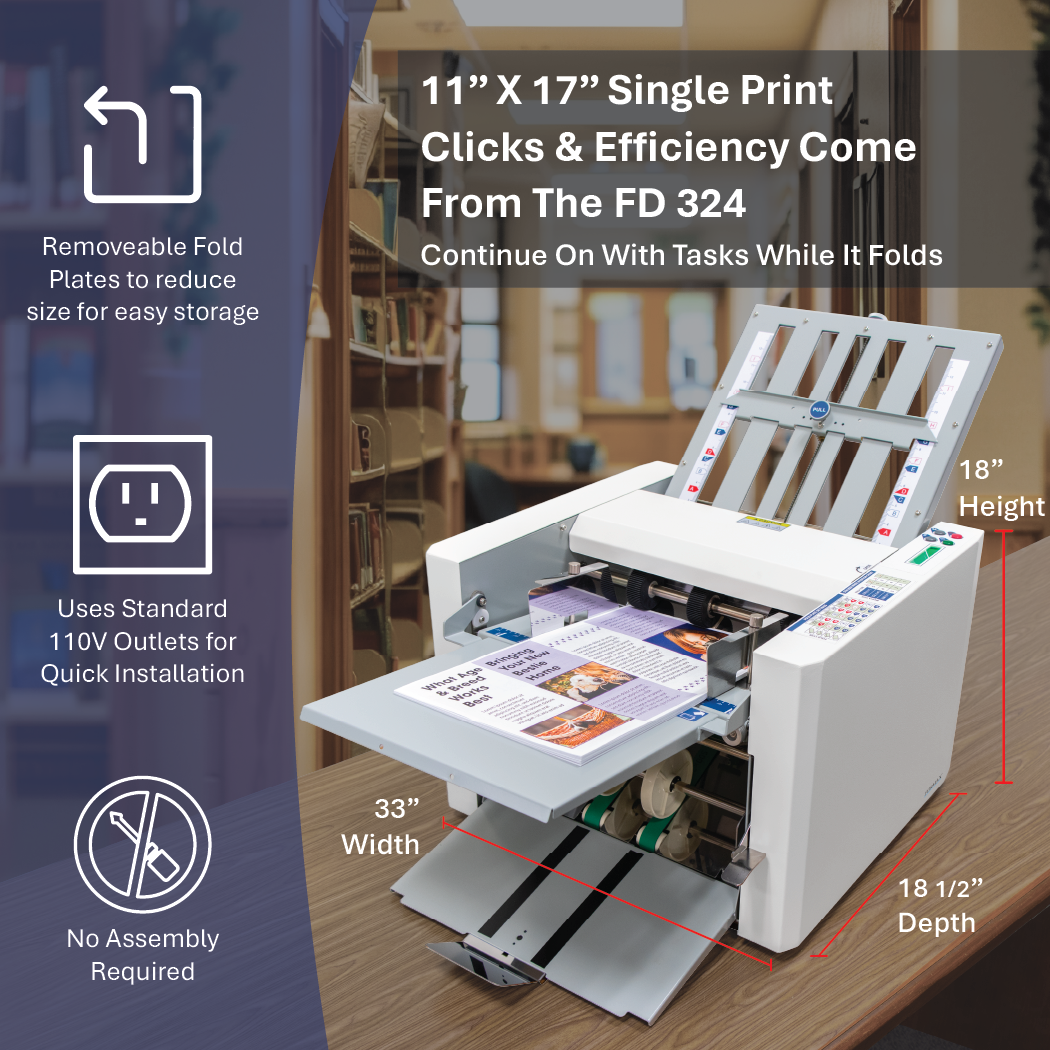

| Dimensions (H”xW”xD”) | 22” x18.5” x 33” |
| Weight | 75 lbs (34kg) |
Product Description:
Features of the Formax FD 324 Document Folder
- Processes up to 8,600 sheets per hour for efficient medium-duty folding operations
- Drop-in feed system with three-tire friction rollers eliminates the need to fan paper

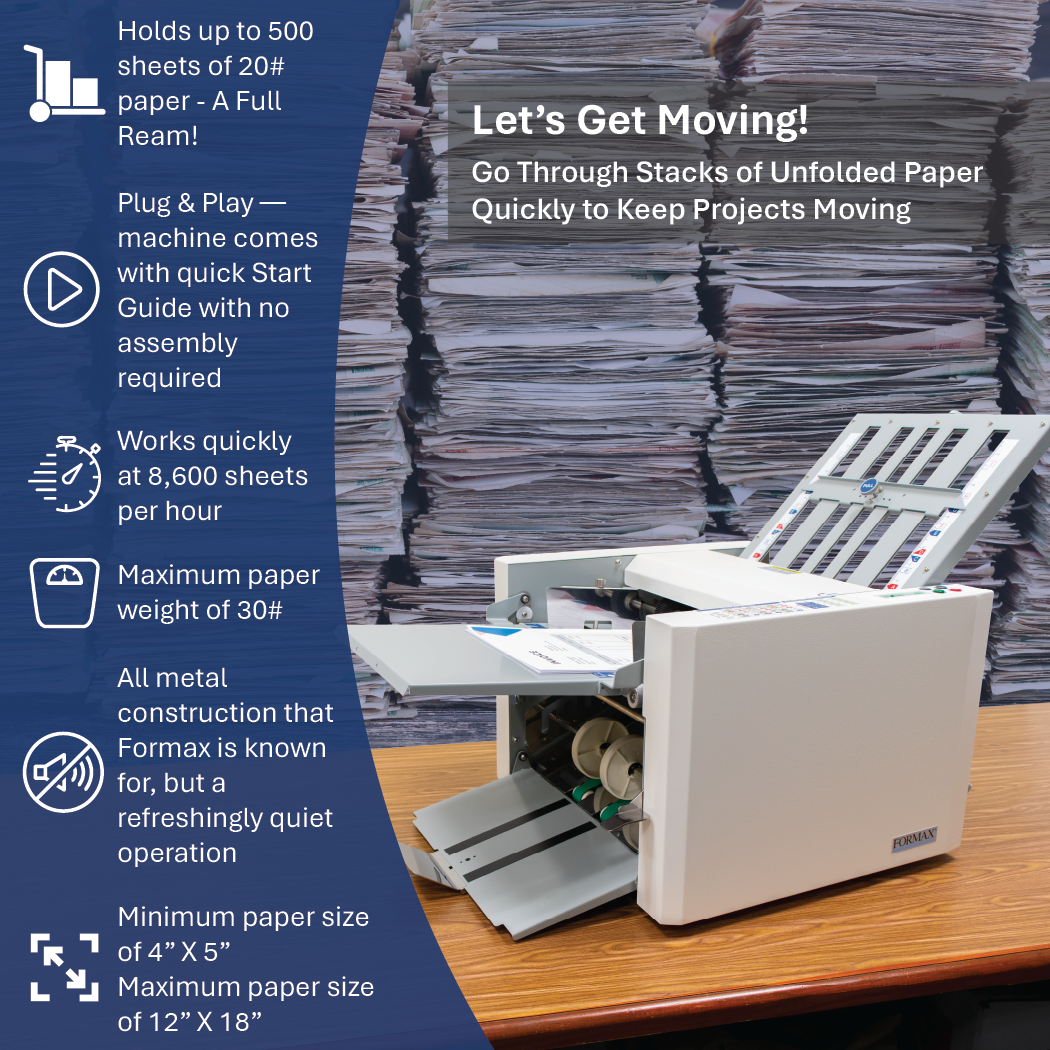

- High-capacity hopper holds up to 500 sheets to support longer production runs
- Handles paper sizes up to 12 x 18 inches for flyers, brochures, and larger documents

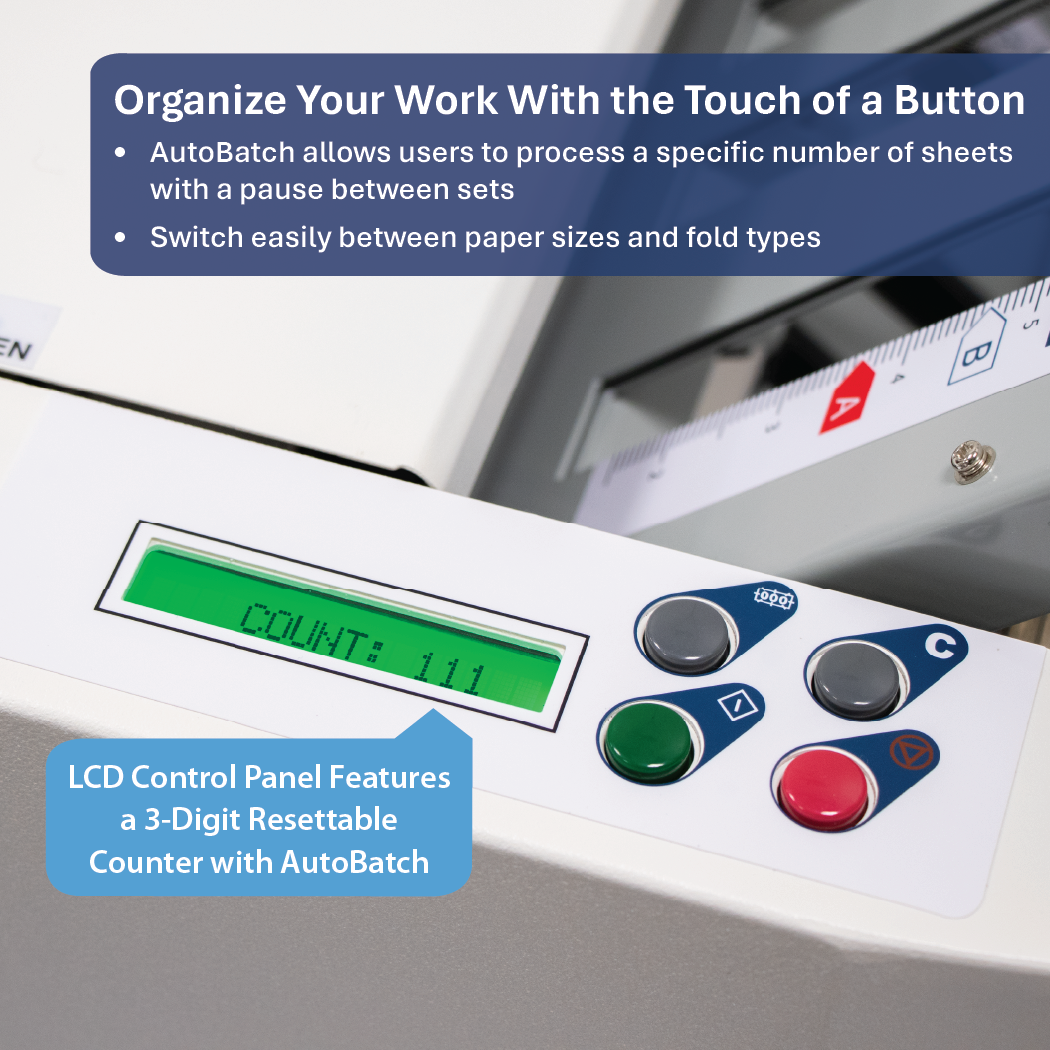

- LCD control panel with resettable counter and AutoBatch for controlled job processing

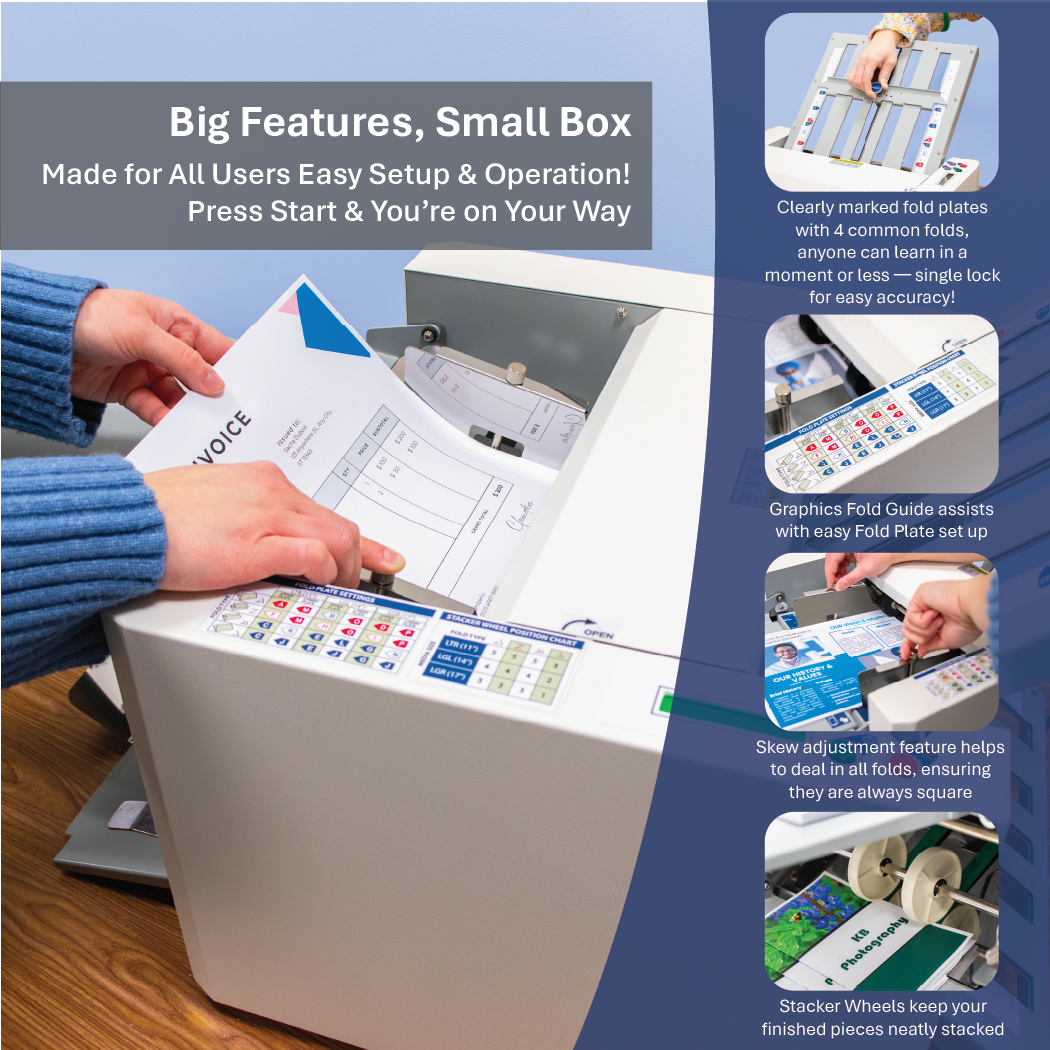

- Pre-marked, removable fold plates with quick-release stops for fast setup and adjustments

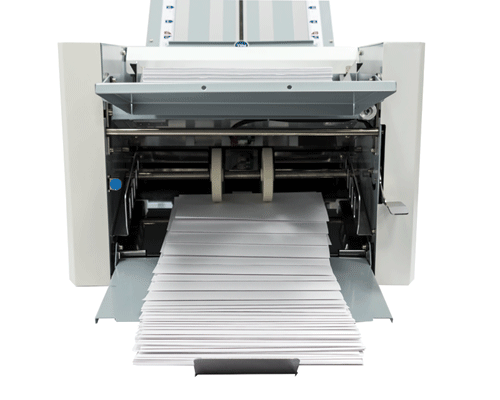

- Adjustable output conveyor with stacker wheels for clean, sequential document stacking
The Formax FD 324 Document Folder is designed to deliver reliable, high-speed folding performance for schools, churches, and busy office environments. Capable of processing up to 8,600 sheets per hour, it supports efficient production of mailers, flyers, and internal documents while reducing manual handling time. The drop-in feed system promotes smooth and consistent paper flow, helping maintain steady output throughout extended folding jobs. Its ability to accommodate larger sheet sizes expands application flexibility without increasing setup complexity.
The Formax FD 324 Document Folder is equipped with AutoBatch functionality that allows operators to run preset quantities with controlled pauses, improving workflow organization for grouped jobs. Fine-tuning knobs and skew adjustment controls help maintain fold accuracy across varying paper stocks. Finished documents are delivered neatly to the output conveyor, minimizing post-processing effort. Stable paper transport and built-in safety considerations support dependable operation in shared work environments.
Frequently Asked Questions
Q: Can the Formax FD 324 handle larger documents like flyers?
A: Yes, the Formax FD 324 supports paper sizes up to 12” x 18”, making it suitable for flyers, brochures, and oversized documents.
Q: Do I need to fan paper before loading the Formax FD 324?
A: No, the drop-in feed system with three-tire friction rollers allows paper to be loaded directly without fanning.
Q: Is the Formax FD 324 suitable for running grouped or counted jobs?
A: Yes, the AutoBatch feature allows operators to run preset quantities with controlled pauses between sets for organized batches.
Q: How does the Formax FD 324 keep folded documents organized?
A: An adjustable output conveyor with stacker wheels delivers clean, sequential stacks across different paper sizes and fold types.
