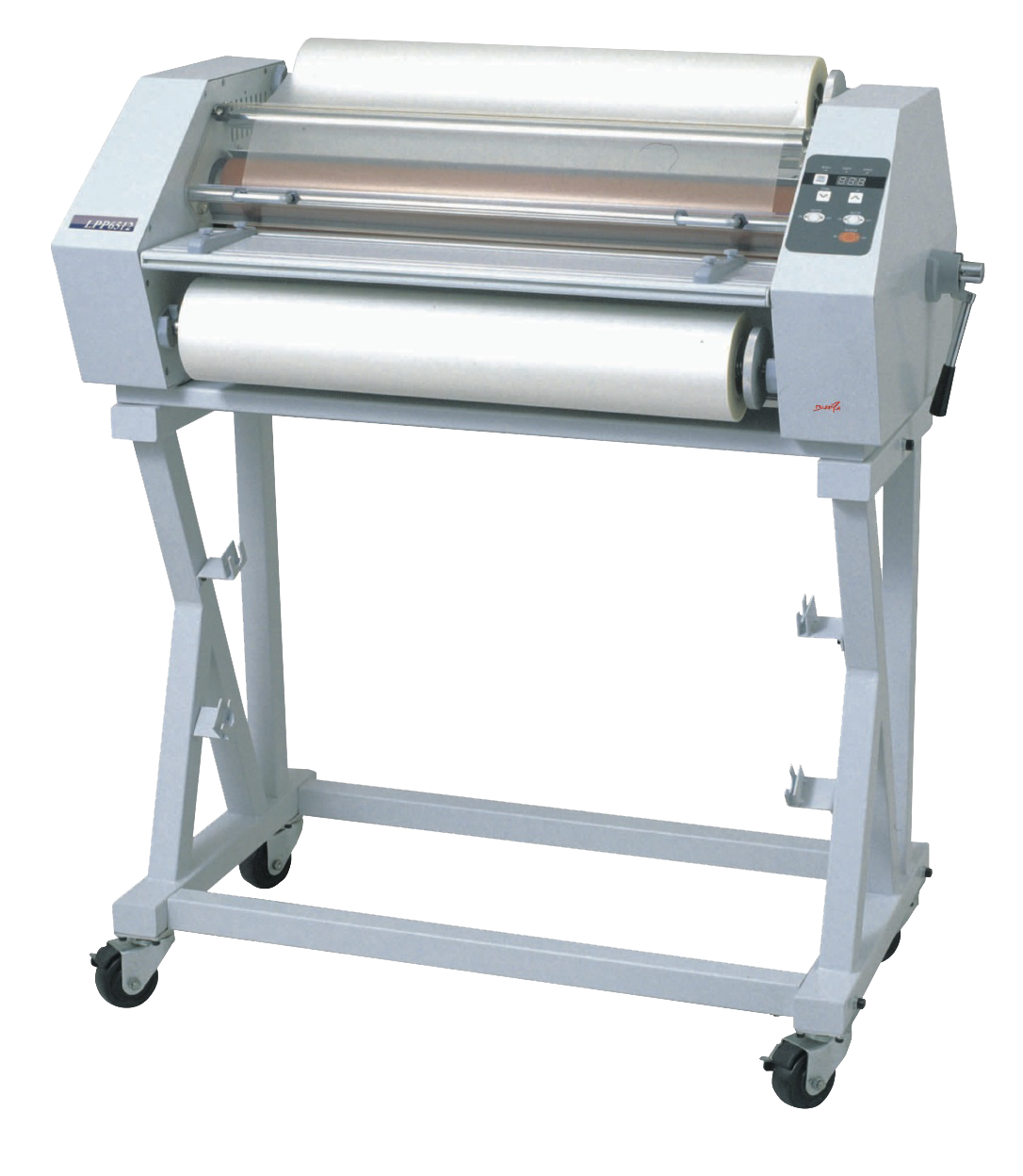

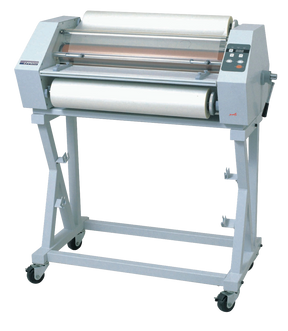

Dry Lam LPP6512 - 25'' Wide Format Roll Laminator
Dry Lam LPP6512 - 25'' Wide Format Roll Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Click here to find more Laminating Supplies & Accessories for Martin Yale Dry Lam
Dry Lam LPP6512 - 25'' Wide Format Roll Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Maximum Laminating Width | 25 inches |
| Laminating Film Thickness | 1.2 - 10 mil |
| Film Types | Thermal |
| Heated Rollers (Upper and Lower) | 122 - 266° F |
| Speed | 23 - 70 inches per minute |
| Core Size | 1, 2.25, and 3 inch |
| Power Supply | 240 VAC, Single phase |
| Dimensions | 40 x 19 x 16 inch |
| Weight | 169 lb |
Product Description:
Features of the Dry-Lam LPP6512 Roll Laminator
- 25 inch maximum laminating width for wide format graphics and signage
- Variable speed from 23 to 70 inches per minute for production flexibility
- Compatible with 1.2 to 10 mil thermal laminating film
- Heated upper and lower rollers with temperature range of 122 to 266 degrees Fahrenheit
- Supports thermal and PSA films with optional liner rewinder
- Digital temperature readout for precise heat control
- Foot pedal web advance and heavy duty roller stand included
- Magnetic safety switches and removable roller guard shield for operator protection
The Dry-Lam Wide Format Laminator is designed for medium duty production in schools, offices, and sign making environments. Equipped with a 25 inch laminating width and variable speed from 23 to 70 inches per minute, it supports efficient processing of posters, presentations, window decals, and display graphics. Heated upper and lower rollers operate within a 122 to 266 degree Fahrenheit range to provide consistent adhesion and scratch free lamination. Compatible with 1.2 to 10 mil film, the Dry-Lam LPP6512 accommodates both thermal and PSA applications for versatile finishing.
The Dry-Lam Roll Laminator is backed with practical workflow and safety features that enhance reliability. A digital temperature readout allows accurate adjustment for different media types, while the included foot pedal web advance supports controlled feeding during mounting and laminating. Magnetic safety switches and a removable roller guard shield help protect operators during use. With optional liner rewinder capability and support for mounting up to 1/4 inch foam board, the Dry-Lam LPP6512 offers flexible wide format lamination for professional results.
Frequently Asked Questions
Q: What types of applications is the Dry-Lam LPP6512 Wide Format Roll Laminator best suited for?
A: The Dry-Lam LPP6512 Wide Format Roll Laminator is ideal for posters, signage, window decals, mounted graphics, and display materials in schools, offices, and sign shops.
Q: Can the Dry-Lam LPP6512 handle both thermal and pressure-sensitive films?
A: Yes, the Dry-Lam LPP6512 Wide Format Roll Laminator supports thermal films and PSA films with an optional liner rewinder, offering flexible finishing and mounting options.
Q: Is the Dry-Lam LPP6512 capable of mounting boards or thicker materials?
A: The Dry-Lam LPP6512 Wide Format Roll Laminator can mount materials up to 1/4" foam board, making it suitable for rigid signage and presentation boards.
Q: How does the Dry-Lam LPP6512 support operator control during production?
A: The Dry-Lam LPP6512 Wide Format Roll Laminator includes a foot pedal web advance, digital temperature readout, and variable speed control to improve accuracy and workflow flexibility.
Q: What safety features are included with the Dry-Lam LPP6512?
A: The Dry-Lam LPP6512 Wide Format Roll Laminator includes magnetic safety switches and a removable roller guard shield to help protect operators during use.
