Count Combo Unit AccuCreaser Air/Knite Folder
Count Combo Unit AccuCreaser Air/Knite Folder is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Count Combo Unit AccuCreaser Air/Knite Folder
Spec Sheet: View PDF File
Product Specifications
| Model | AccuCreaser Air/KF-200 Combo |
| Paper Feed | Vacuum |
| Weight | 524 lbs (237.7 kg) |
| Max Compression Crease (sheets per hour) | 5,500 |
| Max Rotary Perf/Score Speed (sheets per hour) | 12,000 |
| Max Folding Speed (sheets per hour) | 4,300 |
| Paper Weight Range (gsm) | 120 - 350 |
| Dimensions | 103.0 L x 30.0 W x 47.0 H in (261.6 x 76.2 x 119.4 cm) |
| Max Sheet Size | 24.0 L x 14.5 W in (61.0 x 36.8 cm) |
| Min Sheet Size | 5.5 L x 6.0 W in (14.0 x 15.2 cm) |
| Electrical | 115 V, 60 Hz, 20 A or 230 V, 50 Hz, 20 A |
| Made in | U.S.A |
| Fold Types | Automatic setup for Bi-Fold, Tri-Fold, Z-Fold, Letter Fold, Gate Fold, Double Parallel Fold plus a custom option |
Product Description:

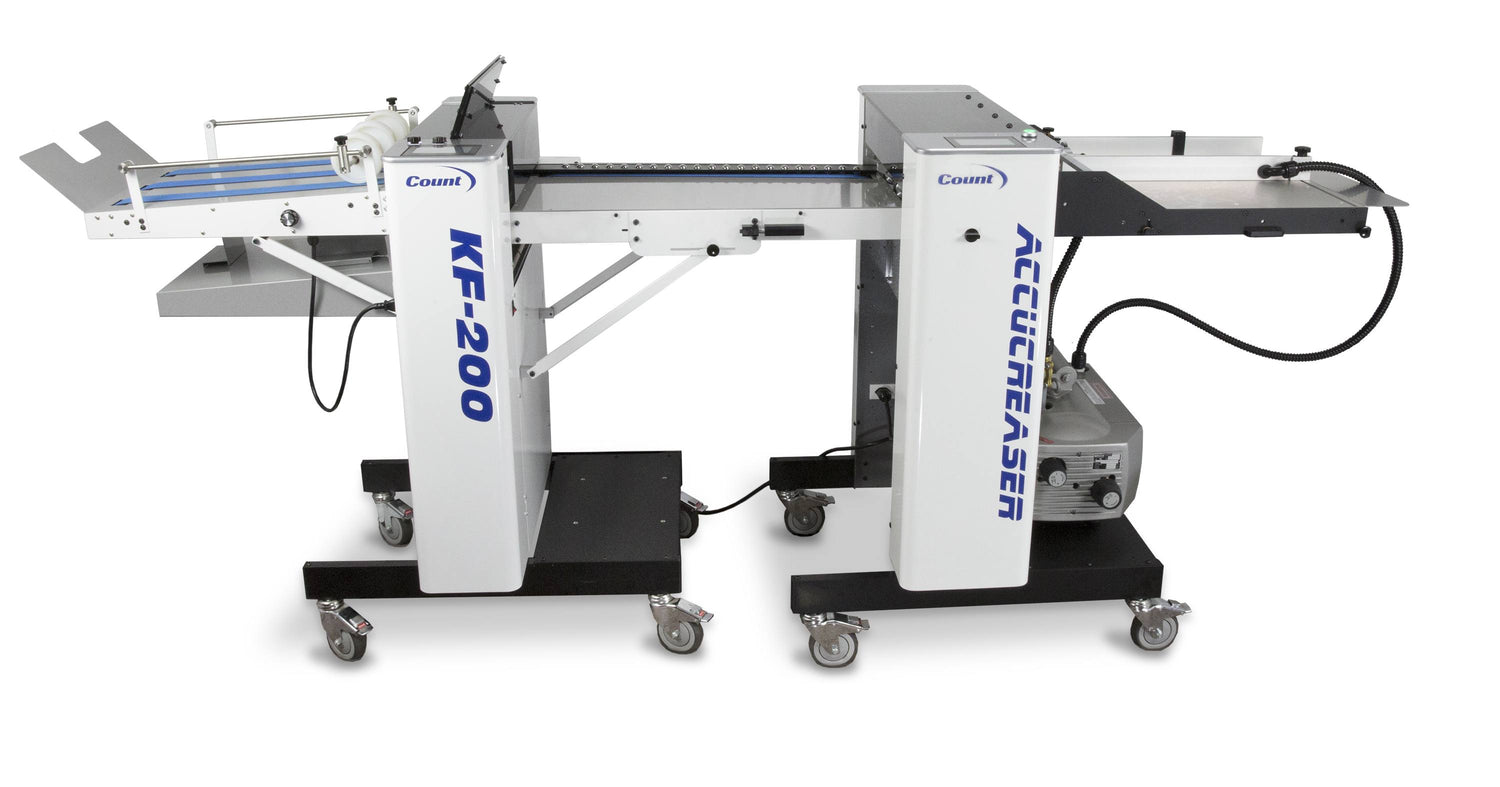

Features of the COUNT™ AccuCreaser Air and KF-200 Knife Folder Combo
- Integrated digital creasing, perforating, scoring, and in-line knife folding system for complete finishing.
- CAM actuated compression creasing delivers accurate creases at speeds up to 5,500 sheets per hour.
- Rotary perforating and scoring system operates at speeds up to 12,000 sheets per hour, including micro-perf capability.
- Knife folding system provides clean folding at speeds up to 4,300 sheets per hour without cracking or bending stock.
- Bottom vacuum paper feed with built-in register guide ensures precise sheet alignment and consistent feeding.
- Supports a wide range of fold types with automatic setup, including bi-fold, tri-fold, Z-fold, letter fold, gate fold, and double parallel fold.
- Capable of processing heavier paper stocks up to 350 gsm for digital applications beyond standard buckle folders.
The COUNT™ AccuCreaser Air and KF-200 Knife Folder Combo is engineered for professional digital print environments that require accurate creasing, perforating, and folding in a single in-line workflow. Equipped with a bottom vacuum feed system and automated distance recognition, the unit maintains precise sheet control while reducing setup time between jobs. The system is capable of producing up to 5,500 creased sheets per hour, 12,000 perforated sheets per hour, and folding output up to 4,300 sheets per hour, supporting efficient short to medium production runs. Knife folding technology ensures clean, controlled folds on heavier digital stocks.
The AccuCreaser Air uses CAM actuated compression creasing combined with rotary perf and score capabilities to produce consistent results without cracking digitally printed materials. Backed with user-friendly touch screen controls, operators can quickly select preset fold patterns or custom configurations to match job requirements. The KF-200 Knife Folder enhances output handling by managing thicker stocks that traditional buckle folders cannot process effectively. Integrated sensors and controlled output flow reinforce safe operation while maintaining reliable, high-quality finishing performance.
Frequently Asked Questions
Q: Can the COUNT™ AccuCreaser Air and KF-200 Combo handle heavy digital print stock?
A: Yes, the system is designed for digital applications and supports paper weights from 120 gsm up to 350 gsm, including heavy card stock that standard buckle folders struggle with.
Q: Will this combo prevent cracking on digitally printed materials?
A: The CAM actuated compression creasing system is engineered to produce clean creases before folding, helping reduce cracking on toner-based digital prints.
Q: Can creasing, perforating, and folding be done in one pass?
A: Yes, the AccuCreaser Air and KF-200 Knife Folder operate as an in-line system, allowing creasing, perforating or scoring, and knife folding in a single workflow.
Q: What types of folds can the COUNT™ AccuCreaser Air and KF-200 Combo produce?
A: The system supports automatic setup for bi-fold, tri-fold, Z-fold, letter fold, gate fold, and double parallel fold, along with custom fold configurations.
Q: Is this system suitable for short to medium digital print runs?
A: Yes, with creasing speeds up to 5,500 sheets per hour and folding speeds up to 4,300 sheets per hour, it is well suited for short to mid-volume digital production.
