Akiles  |  SKU: AVM+

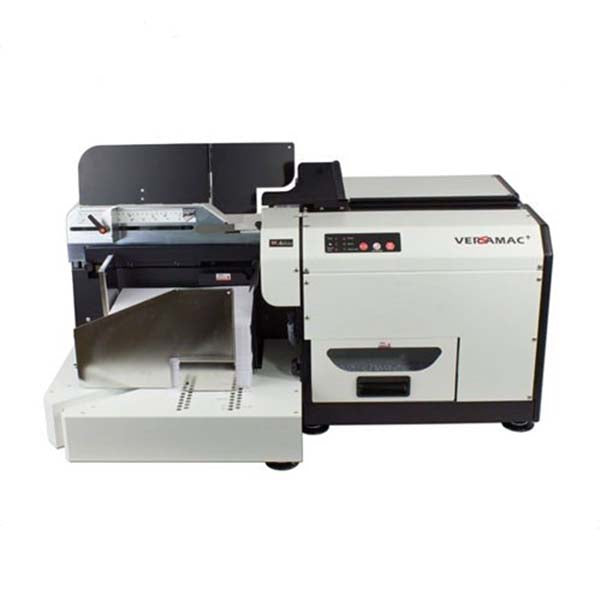

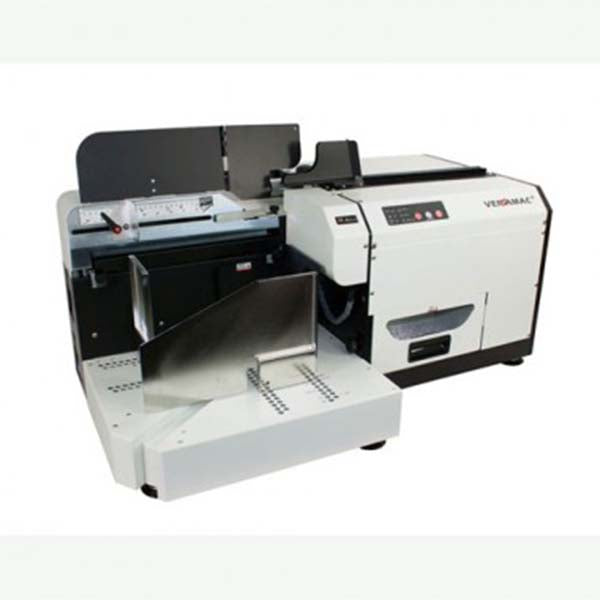

Akiles Versamac PLUS Electric Modular Punch & Stacker System

Comb, Wire, Coil Modular Punch, 14 Interchangeable Die Feature with Fully Disengageable Pins, Compatible with Commercial Volume Workloads

Click here to find more Binding Supplies & Accessories for Akiles

Product Specifications
Product Name Akiles Versamac PLUS Electric Modular Punch & Stacker System
Manufacturer Akiles
Dimensions (H”xW”xD”) 21.5 x 43 x 26
Punch Length (inches) 14
Paper Punch Volume (lbs.) 20
Category VersaMac Modular Machines
Binding Type Comb Binding, Wire Binding, Coil Binding
Punch Operation Electric
Number of pitches 1
Paper Size All Paper Size
Punch Hole Size (mm) (4 x 5)
Depth Margin Adjustable
Warranty 3 Years
Country of Origin Taiwan
User Type Commercial
Reverse Switch Yes
Waste Drawer Yes
Side Margin Adjustable
Disengageable Pins 54
Punch Hole Shape Oval
Number of Holes 53
Punching Capacity (Sheets) 500 +
Product Description:

  • AkilesVersamac PLUS electric punch and binding equipment with efficient heavy-duty punch motor

  • Has the punching capacity of over 500 sheets per min with 70 punch cycles in one minute

  • 14 die sets that are easily interchangeable

  • Huge Paper Stacker with built-in jogger with capacity of 1500 sheets or 3 reams of 20 lbs. paper

  • Stacking Stabilizer for keeping the stacker contents organized

  • Paper Feed Stabilizer for ensuring that the inserted input moves in the right direction

  • Side Margin Control for aligned punch results placed towards the center of the paper

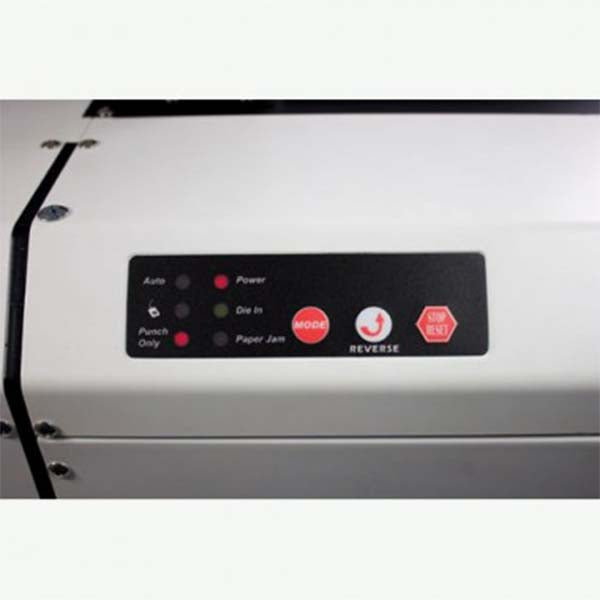

  • Mode Toggle for convenient switching between operating modes i.e. Auto, Foot Pedal, and Punch Only modes

  • Die Storage provides temporary storage of up to 2 dies

  • Adjustable paper guides that help to keep 14″ stacks organized

  • Large Waste Drawer for keeping the byproducts of the process out of sight

  • Backed by 3-year Warranty

AkilesVersamac PLUS electric punch and binding equipment is the next level punching and binding convenience with powerful punch motor. It is a totally commercial grade machine capable of modular punching and stacks as well as ejects paper automatically. Its modular operations, a variety of operation modes available, exceptional speed and greater processing capacity enable AkilesVersamac PLUS to provide the most refined punching and binding results in minimum time and with outstanding efficiency and precision. Akiles punch & binding machine, Versamac PLUS is ideal for large-scale punching and binding jobs and has a solid 3-year warranty for providing reliability to the users.

Frequently Asked Questions

Q1) Does the machine contain a punching waste scatter?

A. Not a chance! As the AkilesVersamac PLUS contains a built-in waste drawer, so that the by-products do not scatter the office space.


Q2)  How does the Versamac PLUS maintain organized stacking?

A. The stacking stabilizer ensures that the sheets are kept aligned so that the user does not has to separately organize this much sheets by hand.

Q3) What is the weight of the AkilesVersamac PLUS?

A. The total weight of this machine is 234 lbs.

Q4) what if the machine gets jammed?

A. In case the machine gets jammed, you can use the reverse button as well as the manual jam release which is installed at the back side of the machine.
