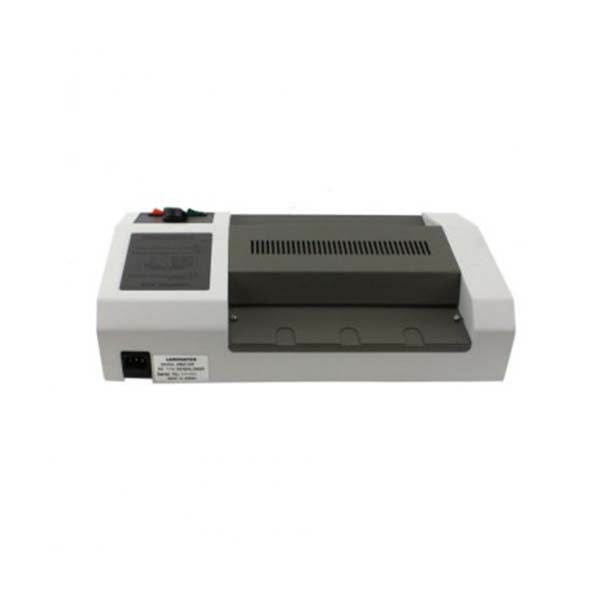

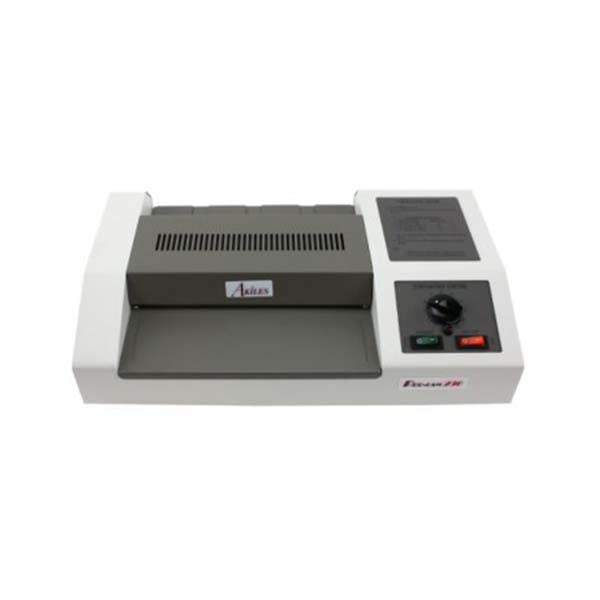

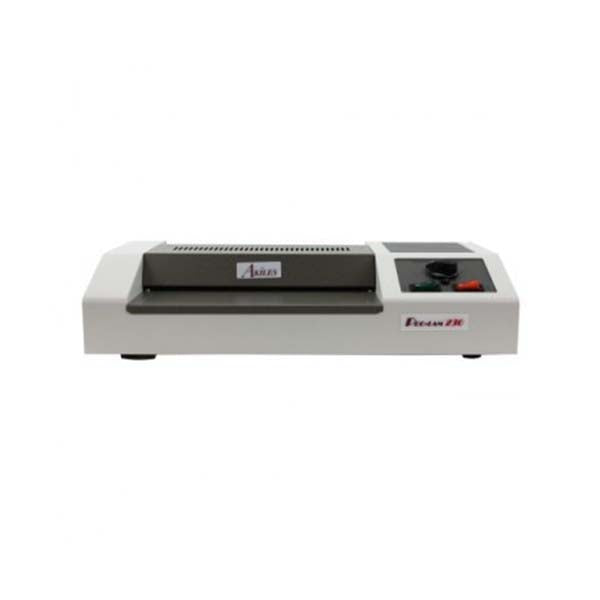

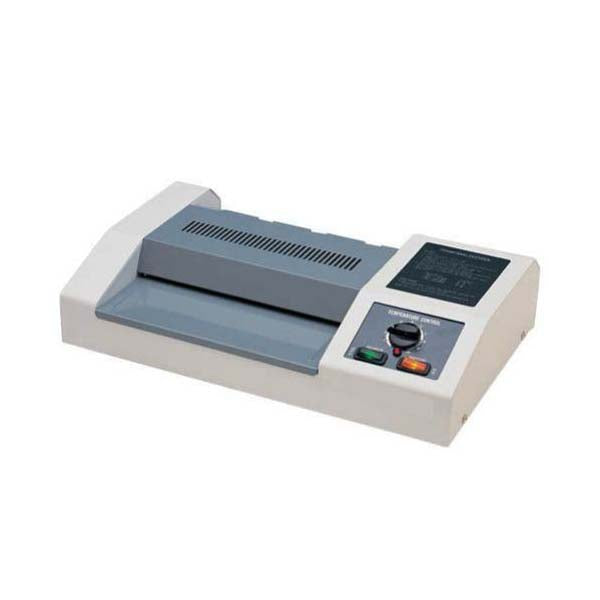

Akiles ProLam Plus 230 Pouch Laminator
Akiles ProLam Plus 230 Pouch Laminator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Akiles ProLam Plus 230 Pouch Laminator
Spec Sheet: View PDF File
User Manual: View PDF File
Product Specifications
| Heated Roller System | 2 Hot/ 2 Cold |
| Max. Pouch Thickness (mil) | 10 |
| Max. Laminating Speed (Inches/Min) | 21 |
| Throat Capacity (Inches) | 9.1 |
| Laminator Type | Pouch Laminator |
| Number of Rollers | 4 |
| Warranty | 1 year |
| User Type | Large Office |
| Reverse Function | Yes |
| Temperature Settings | Adjustable |
| Cold Lamination | Yes |
| Weight | 16 lbs |
| Dimensions (H”xW”xD”) | 16.75 x 8.5 x 4.5 |
Product Description:
Features of the Akiles ProLam Plus 230 Laminator
- Dual heat system with heated rollers and heated plates for balanced heat distribution
- Special silicone rollers allow carrier-free lamination
- Maximum pouch thickness up to 10 mil for standard document protection
- Variable temperature control with electronic PCB for precise adjustments
- Forward and reverse switch for jam clearing and continuous operation
- Heat and cold lamination modes for versatile application use
- Heavy duty metal housing and metal gears with ready light indicator and 1 year warranty
The ProLam Plus 230 is a heavy duty pouch laminator designed for offices, schools, and copy centers that require reliable document finishing. Equipped with a 9.1 inch throat, the Akiles ProLam Plus 230 Laminator provides smooth pouch feeding and consistent handling of commonly used document sizes. Its dual heat system combines heated rollers and heated plates to deliver even heat distribution, helping produce clear and bubble free laminated results. Capable of processing laminating pouches up to 10 mil, it supports everyday document protection with steady, controlled performance.
Backed with an electronic temperature control system, the ProLam Plus 230 Laminator allows operators to fine tune heat settings for different pouch thicknesses and materials. The forward and reverse switch supports continuous operation while simplifying jam removal and pouch re-alignment. Silicone rollers enable carrier-free lamination, reducing setup steps and improving workflow efficiency. A durable metal housing, reinforced metal gears, ready light indicators, and automatic cooling shutdown features contribute to dependable long term performance in busy work environments.
Frequently Asked Questions
Q: For how long am I entitled to warranty?
A: Akiles Pro-Lam plus 230 comes with a one-year warranty.
Q: Does this unit require carrier prior to laminating tasks?
A: Akiles Pro-Lam Plus 230 provides the flexibility to laminate with or without, although laminating with a carrier is safer.
Q: How long does this machine takes to warm up?
A: As this unit is used for heavy duty laminating jobs, therefore the appliance requires 5 to 7 minutes to heat up.
Q: Difference between Akiles Pro-Lam Plus 160 and 230?
A: Akiles Pro-Lam plus 160 and 230 have different throat capacity and dimensions although they offer identical efficient and effective laminating jobs.
